Connectors C101 To C407: C200

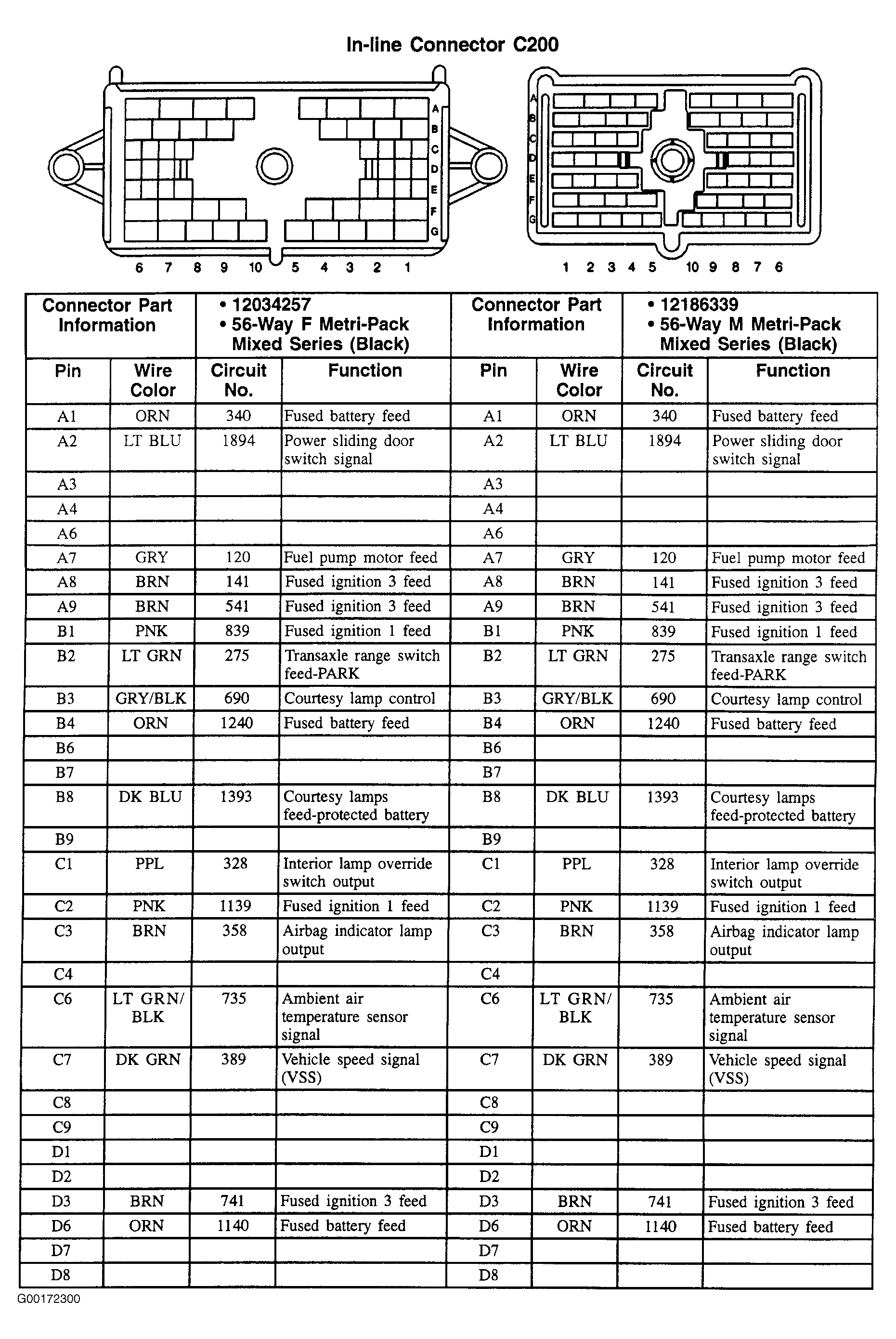

Fig 1: C200 - 56-Pin Connector (Black) - (1 Of 2)
G00172300Courtesy of GENERAL MOTORS CORP.

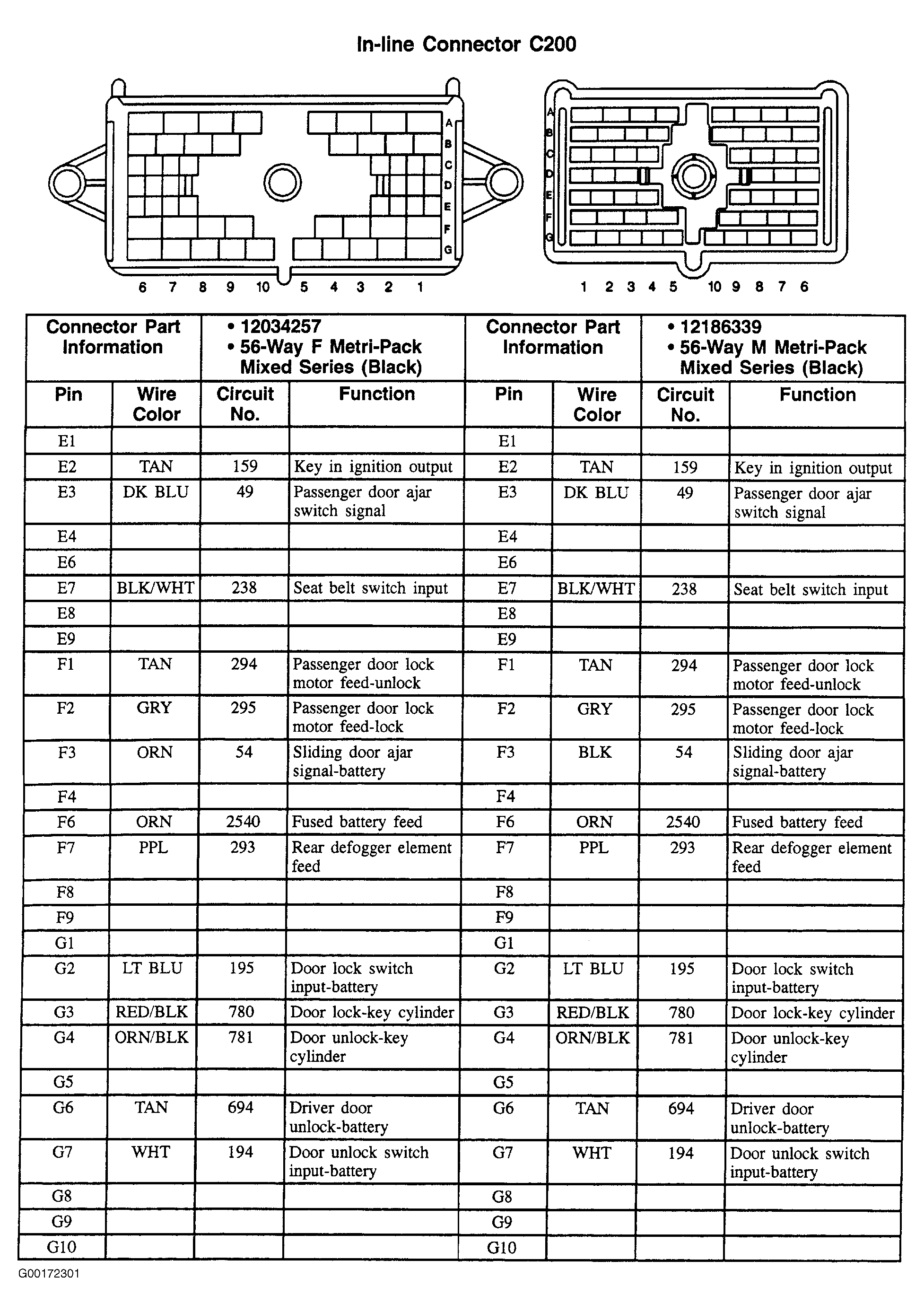

Fig 2: C200 - 56-Pin Connector (Black) - (2 Of 2)
G00172301Courtesy of GENERAL MOTORS CORP.
