Connectors C101 To C407: C201

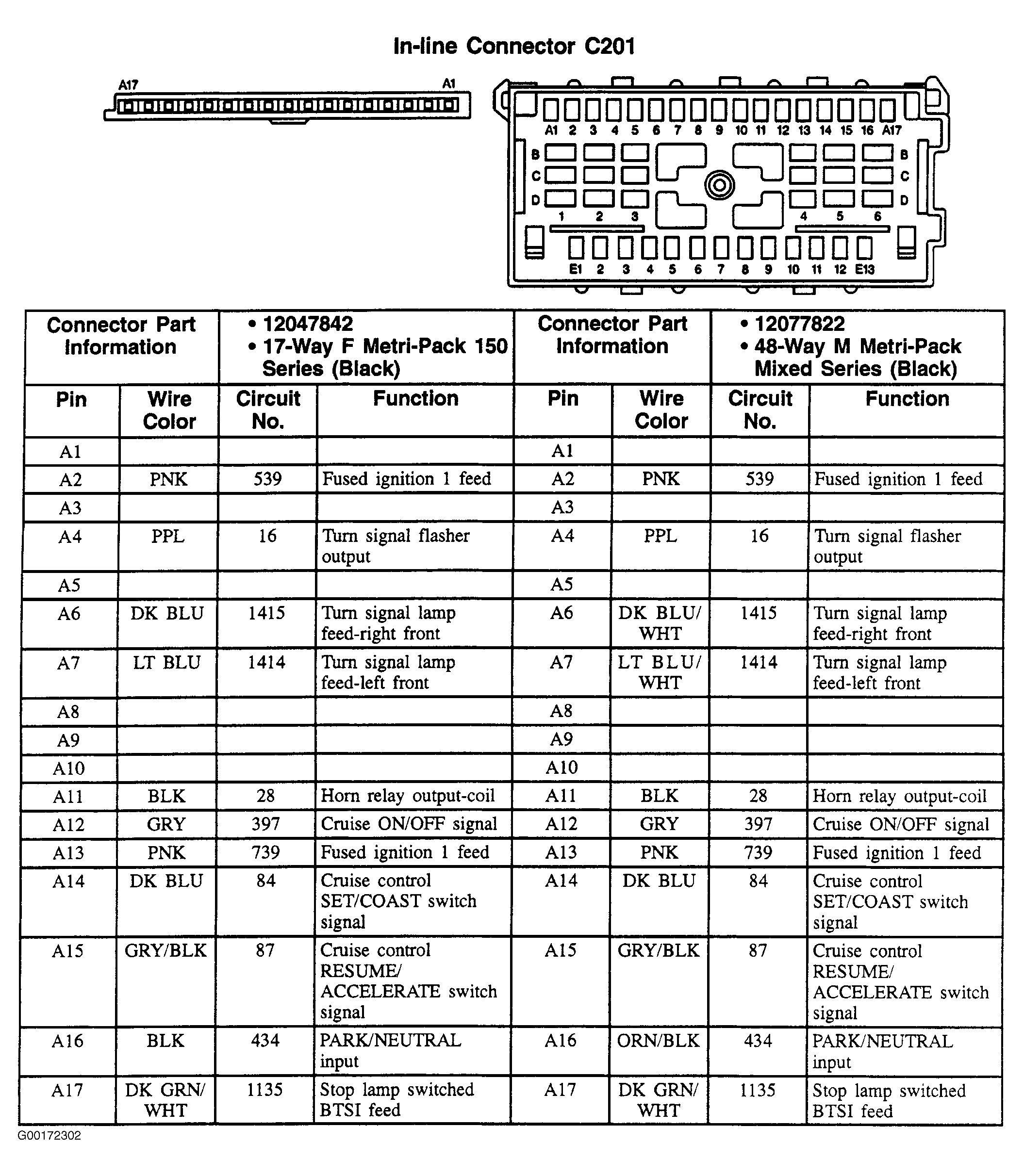

Fig 1: C201 - 17-Pin Connector (Black)/48-Pin Connector (Black) - (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

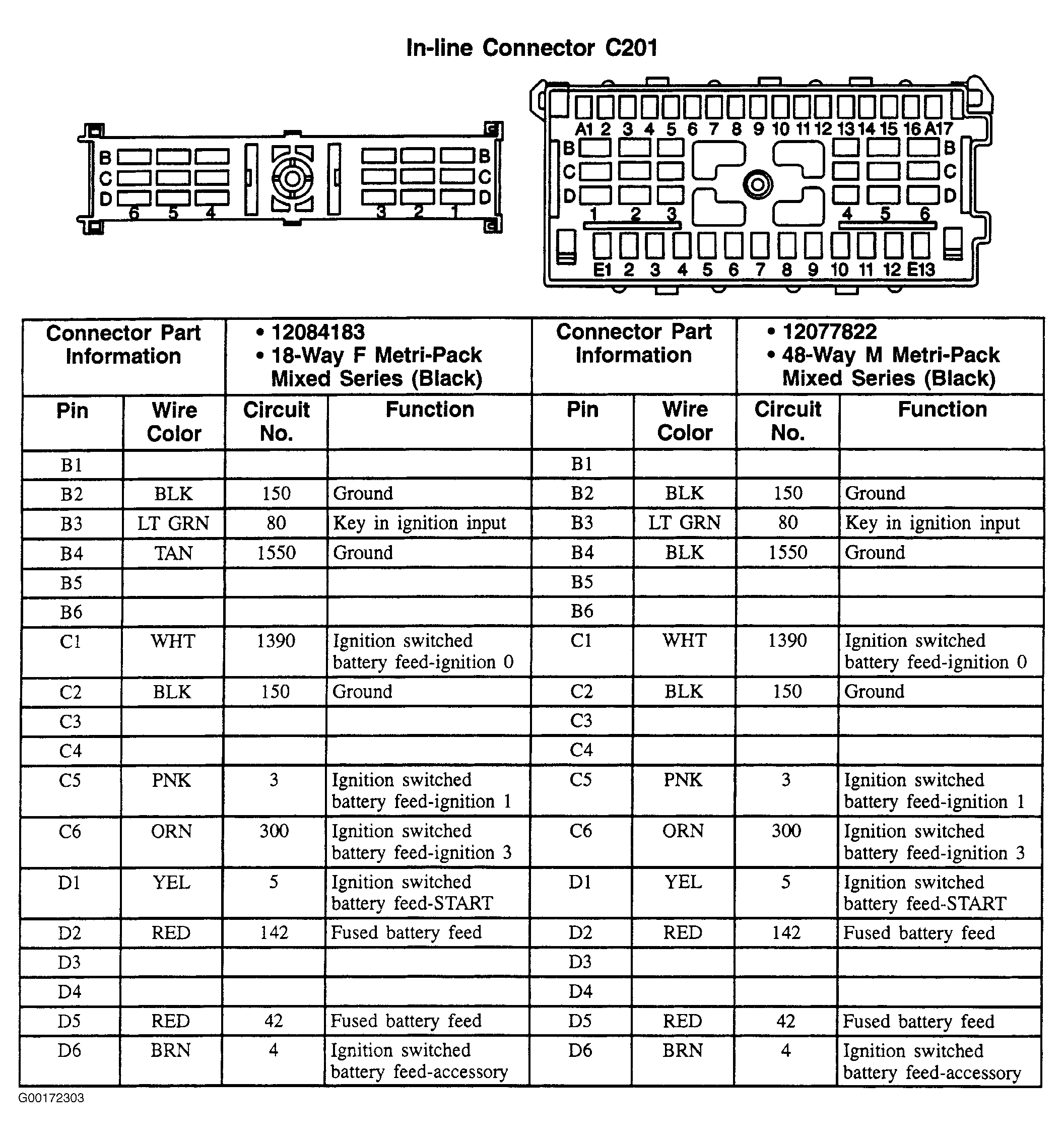

Fig 2: C201 - 18-Pin Connector (Black)/48-Pin Connector (Black) - (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

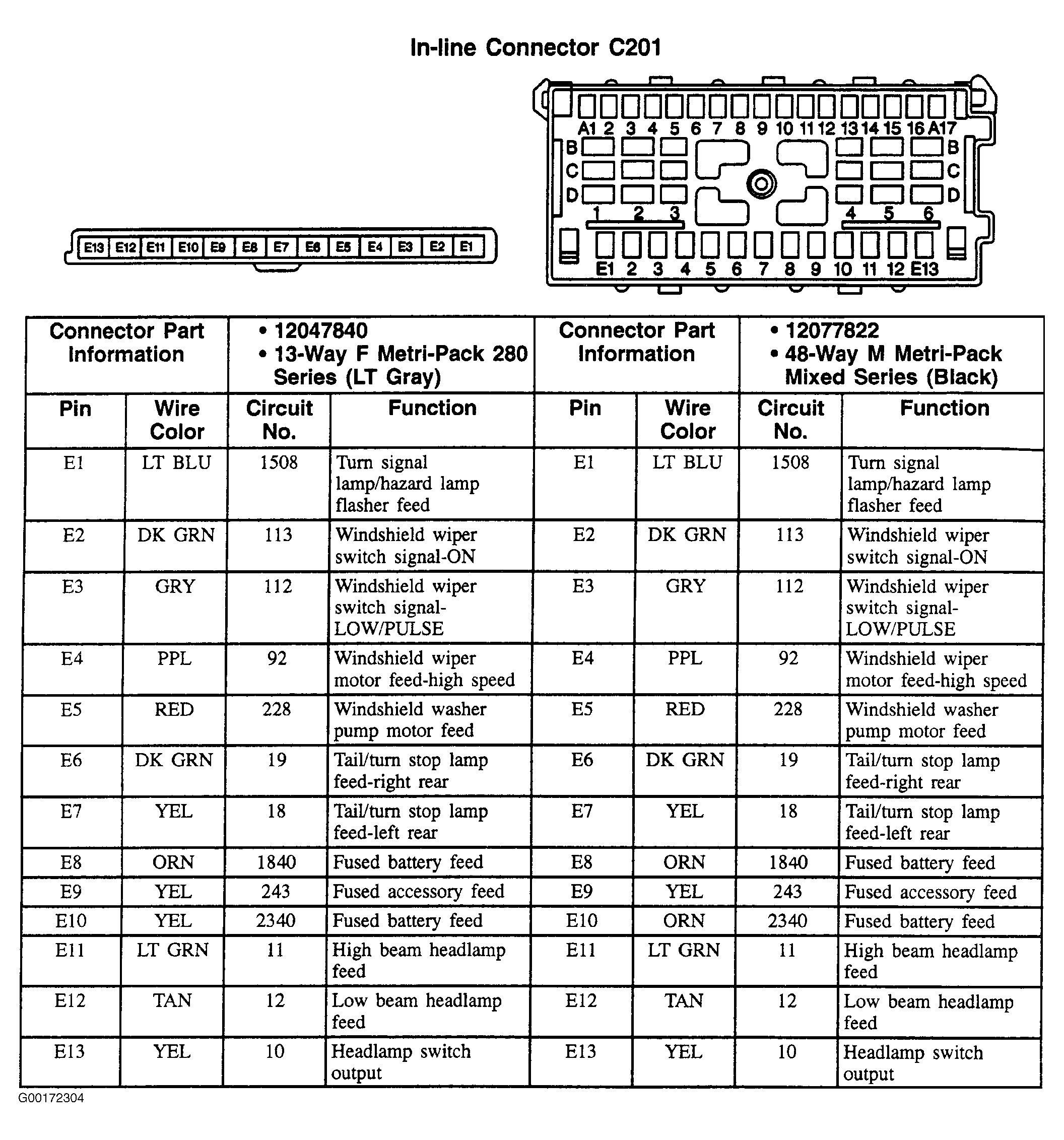

Fig 3: C201 - 13-Pin Connector (Light Gray)/48-Pin Connector (Black) - (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
