Home › Chevrolet › 1997 › Venture Base, Van Passenger Extended › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › Connectors C101 To C407 › C205

Connectors C101 To C407: C205

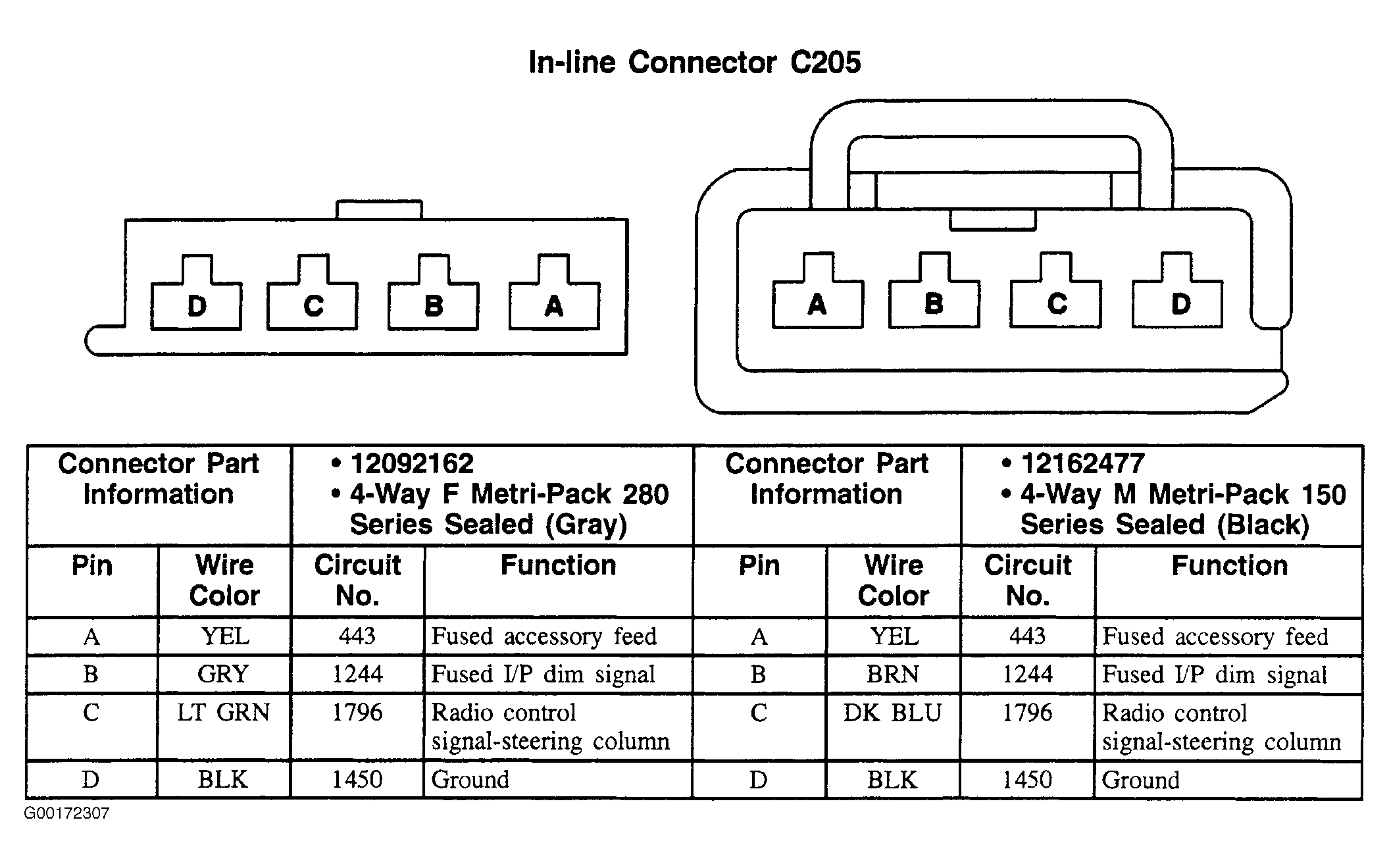

Fig 1: C205 - 4-Pin Connector (Gray/Black)
G00172307Courtesy of GENERAL MOTORS CORP.
