Connectors C101 To C407: C302

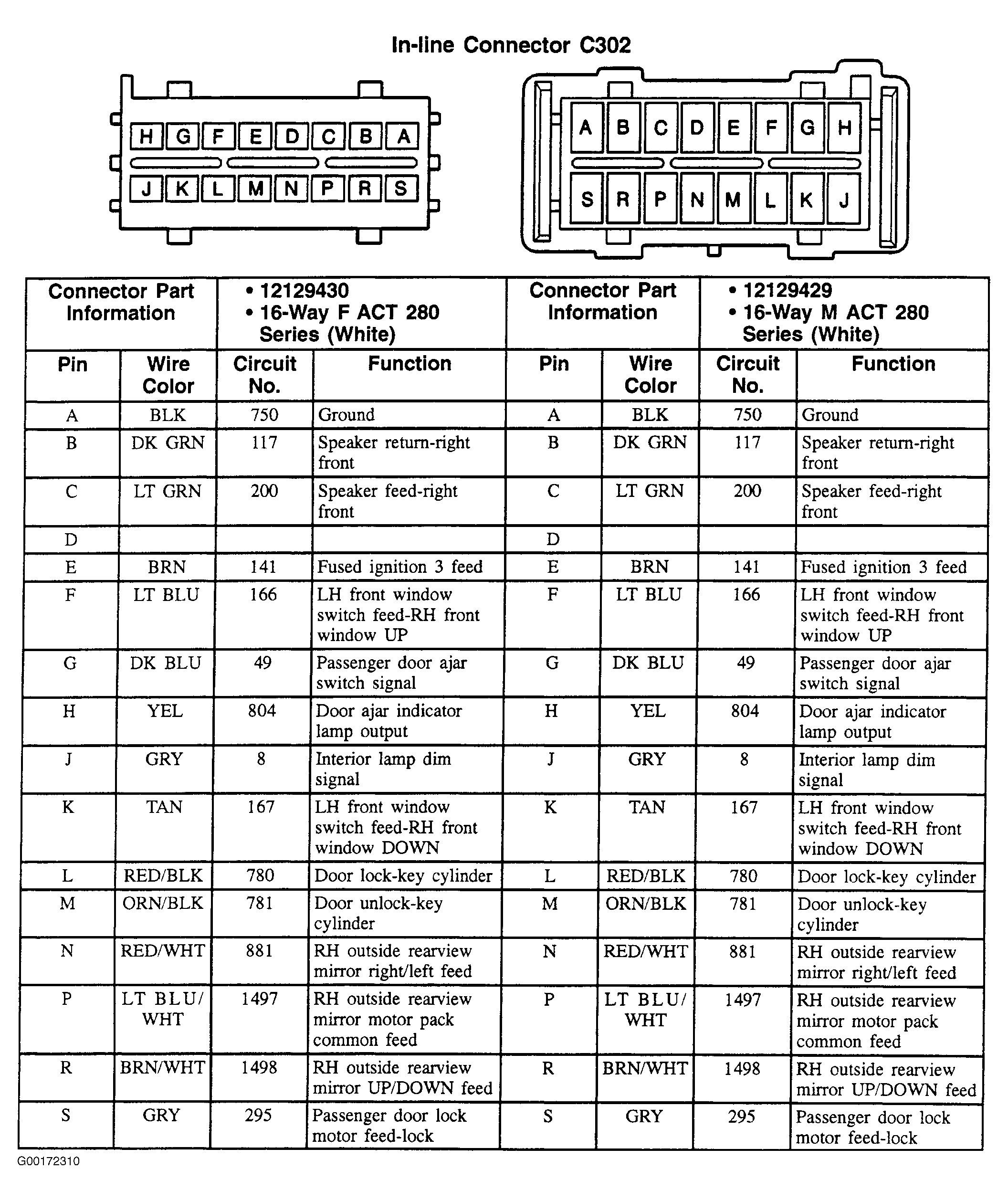

Fig 1: C302 - 16-Pin Connector (White)
G00172310Courtesy of GENERAL MOTORS CORP.
