Home › Chevrolet › 1997 › Venture Base, Van Passenger Extended › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › Connectors C101 To C407 › C308

Connectors C101 To C407: C308

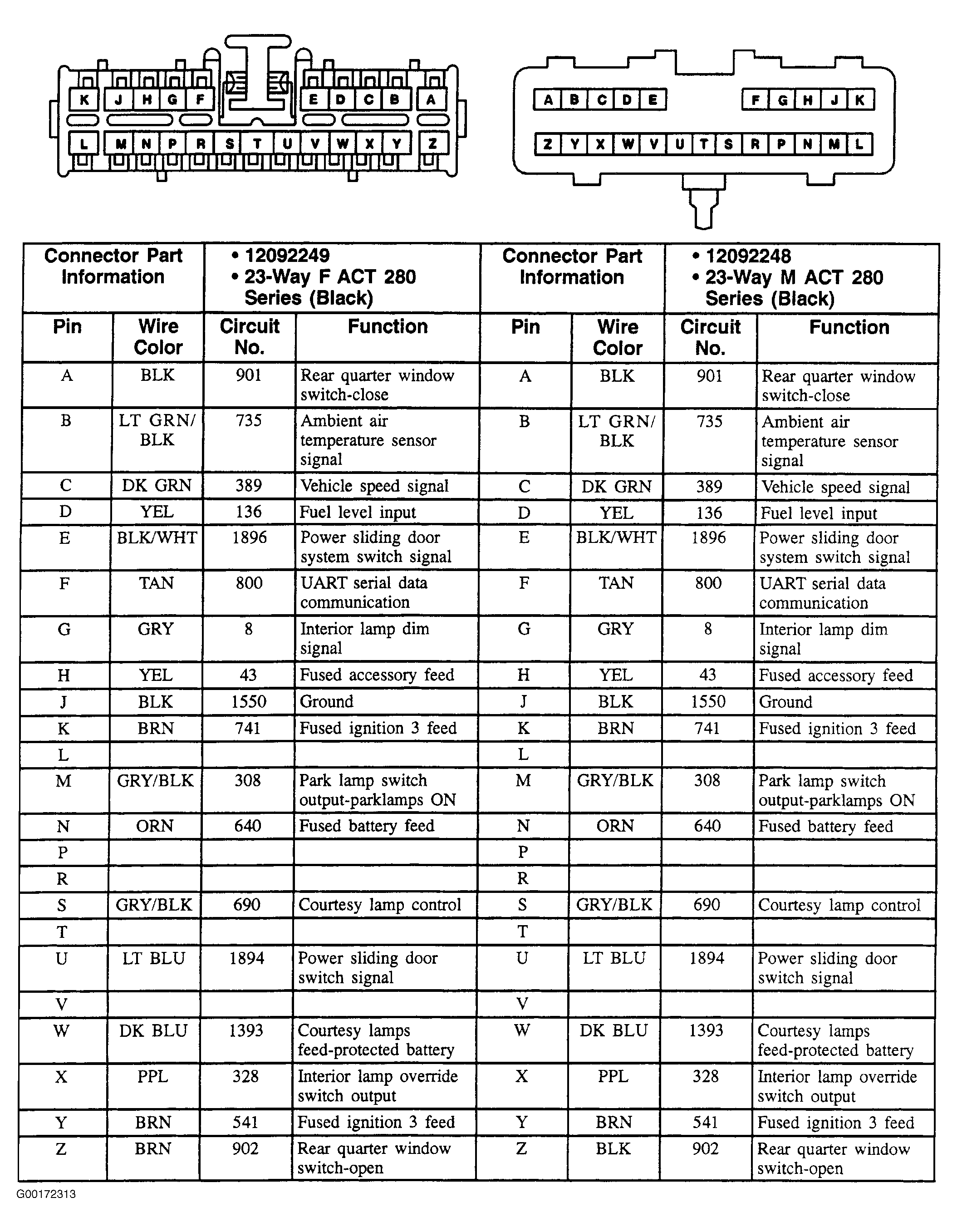

Fig 1: C308 - 23-Pin Connector (Black)
G00172313Courtesy of GENERAL MOTORS CORP.
