Connectors C101 To C407: C397

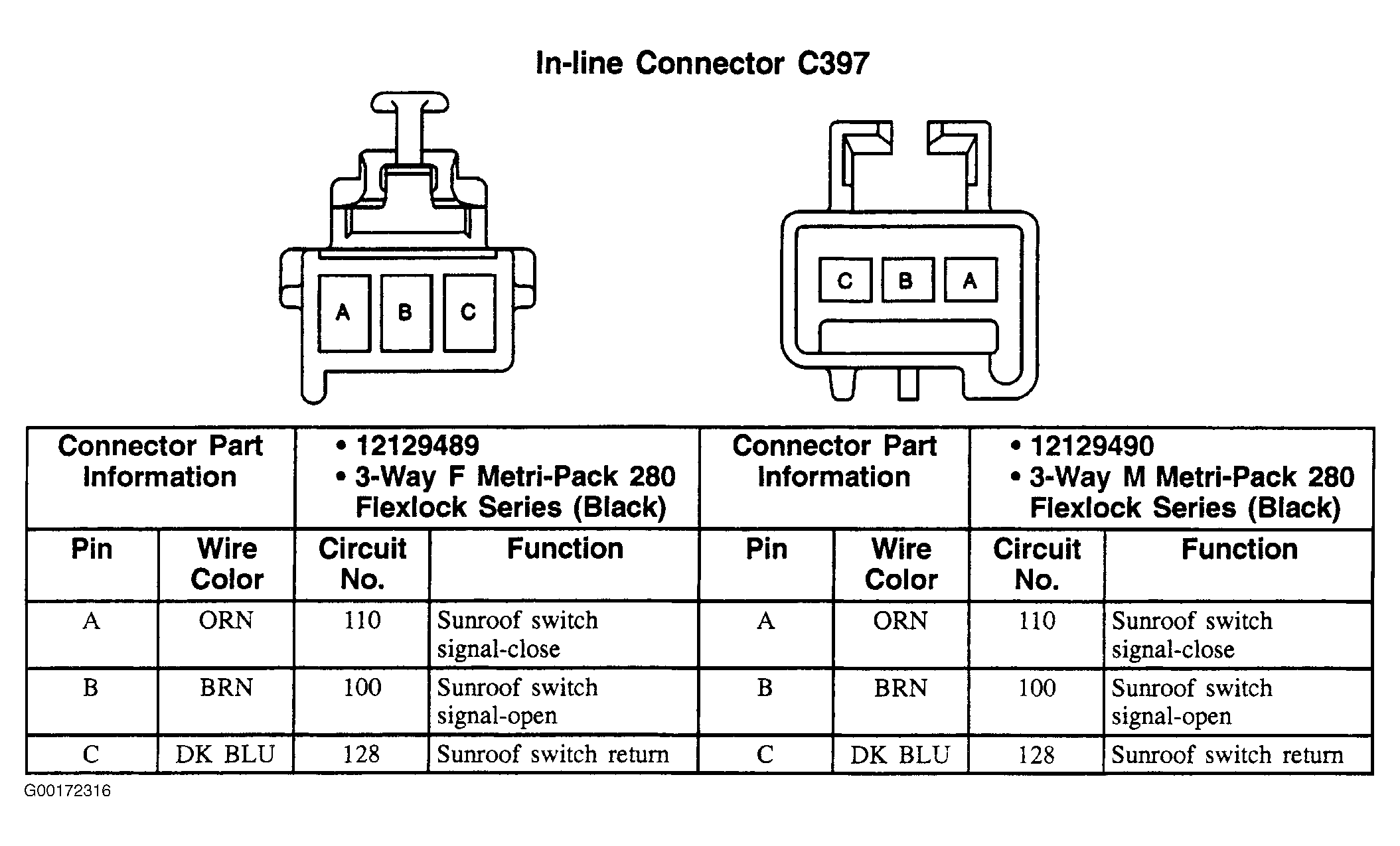

Fig 1: C397 - 3-Pin Connector (Black)
G00172316Courtesy of GENERAL MOTORS CORP.
