Home › Chevrolet › 1997 › Venture Base, Van Passenger Extended › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › Connectors C101 To C407 › C400

Connectors C101 To C407: C400

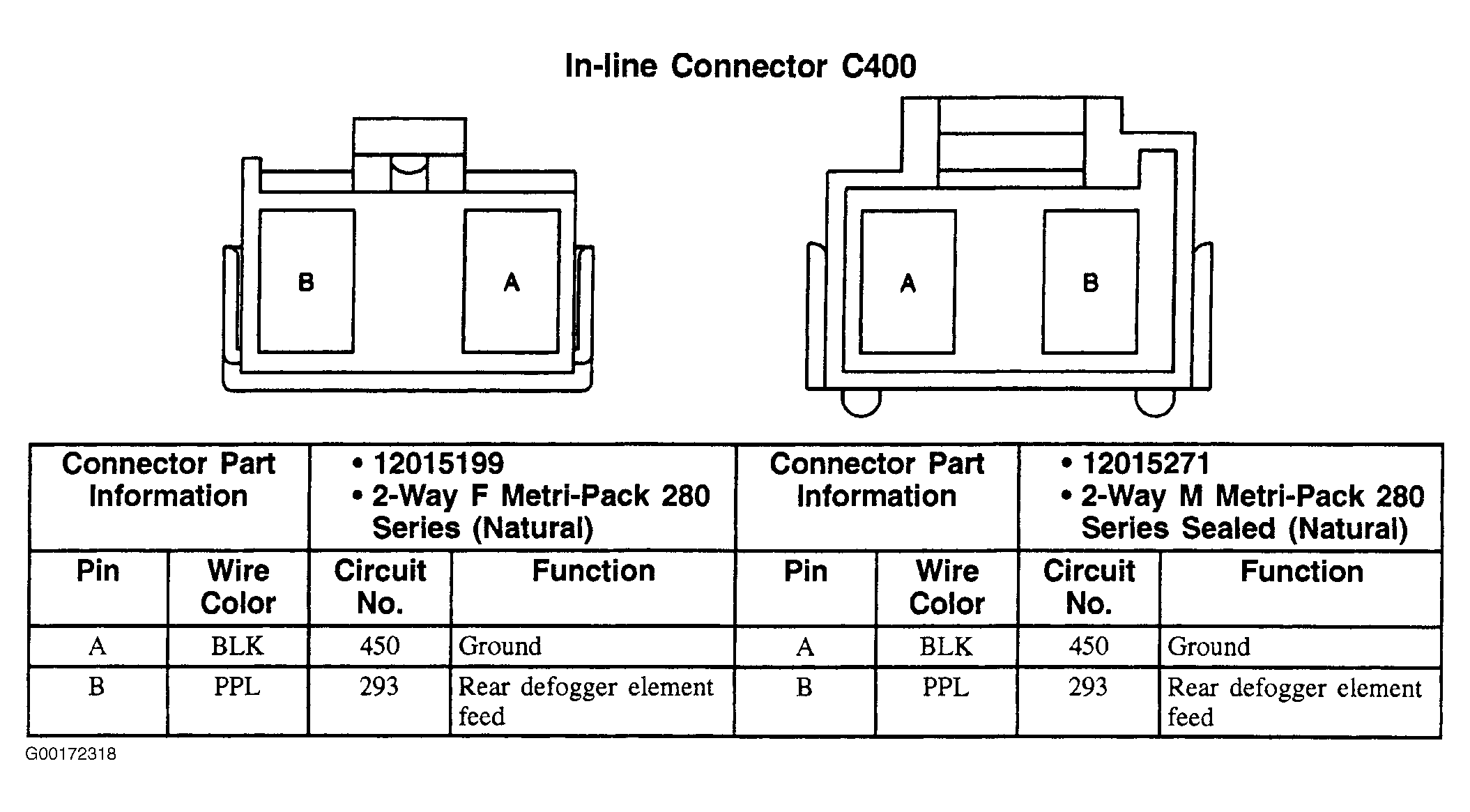

Fig 1: C400 - 2-Pin Connector (Natural)
G00172318Courtesy of GENERAL MOTORS CORP.
