Connectors C101 To C407: C402

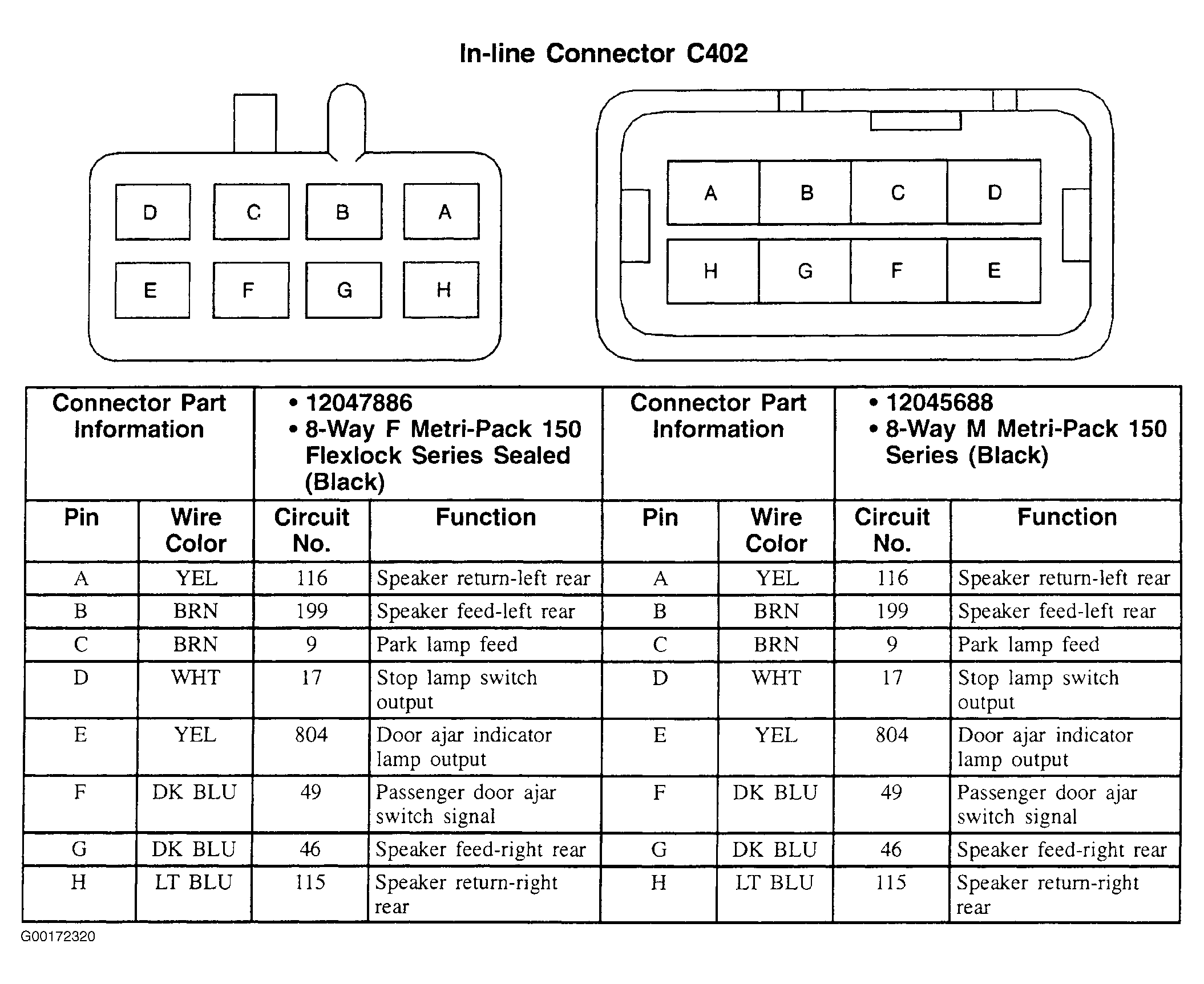

Fig 1: C402 - 8-Pin Connector (Black)
G00172320Courtesy of GENERAL MOTORS CORP.
