Connectors C101 To C407: C405

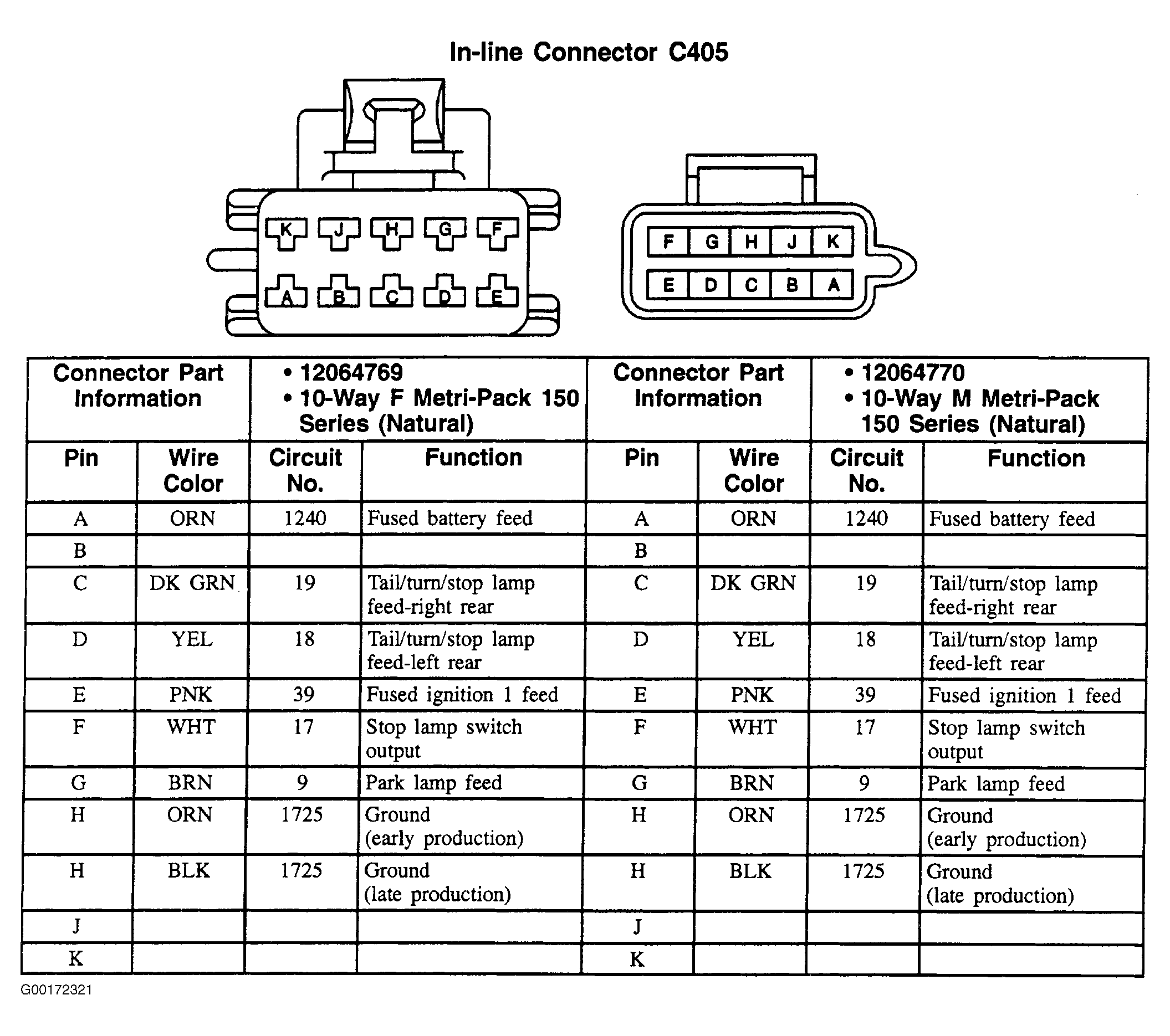

Fig 1: C405 - 10-Pin Connector (Natural)
G00172321Courtesy of GENERAL MOTORS CORP.
