Connector Terminal Identification
›
Auto Level Control (ALC) Air Compressor
Auto Level Control (ALC) Air Compressor

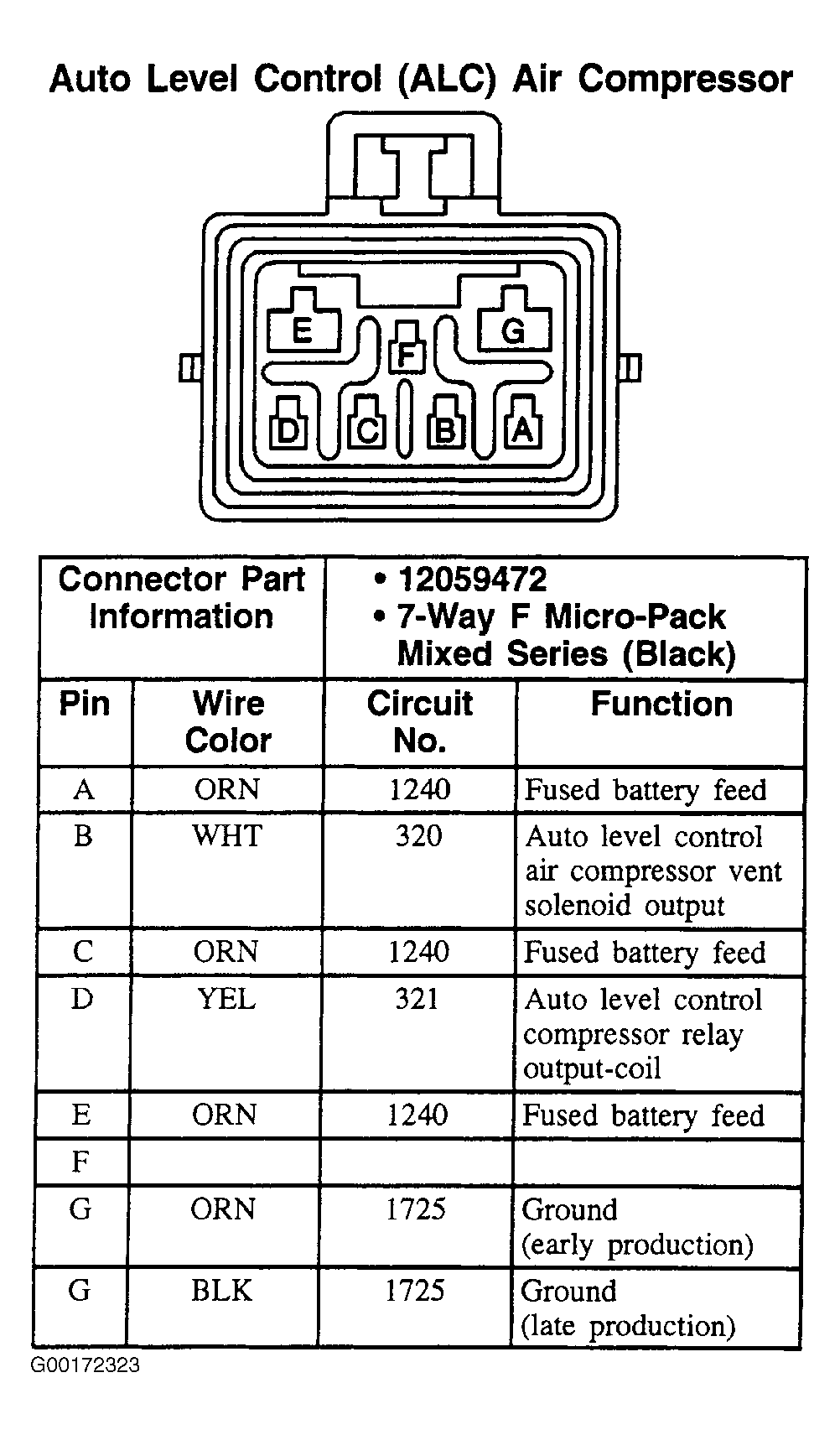

Fig 1: Auto Level Control (ALC) Air Compressor - 7-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
