Auto Level Control (ALC) Inflator Relay
Auto Level Control (ALC) Inflator Relay

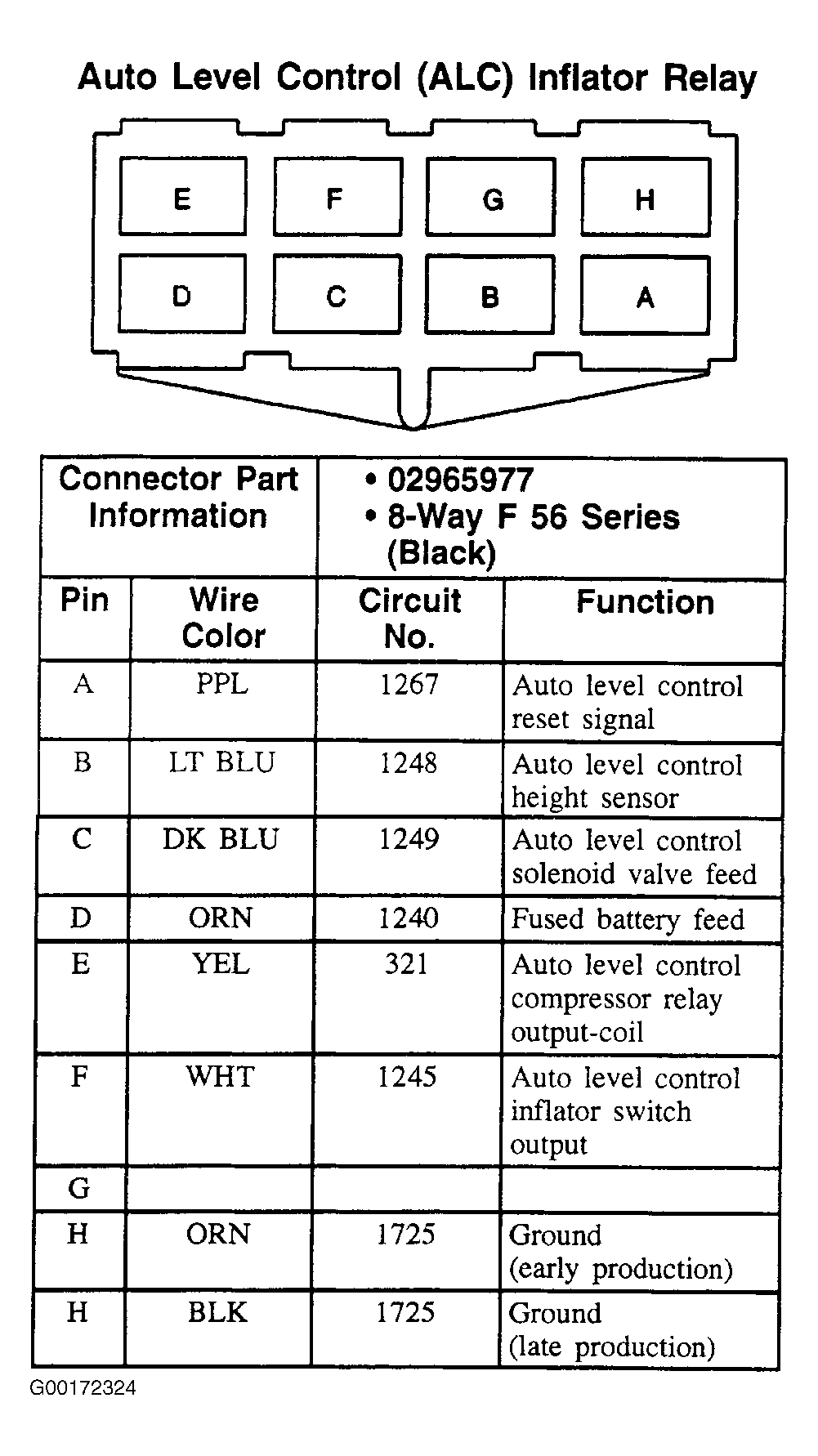

Fig 1: Auto Level Control (ALC) Inflator Relay - 8-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
