Connector Terminal Identification
›
Auto Level Control (ALC) Sensor
Auto Level Control (ALC) Sensor

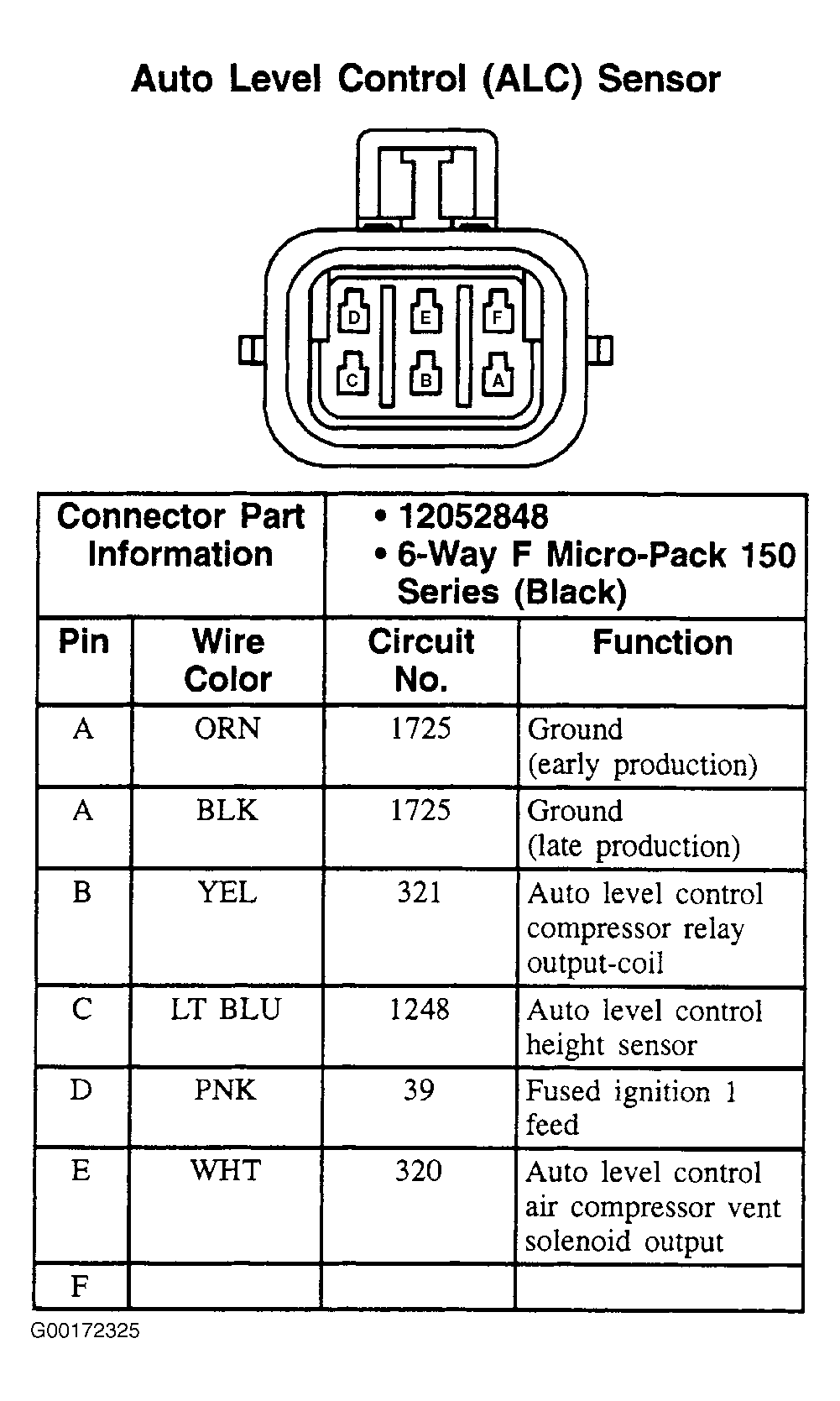

Fig 1: Auto Level Control (ALC) Sensor - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
