Auxiliary Blower Motor Resistor
Auxiliary Blower Motor Resistor

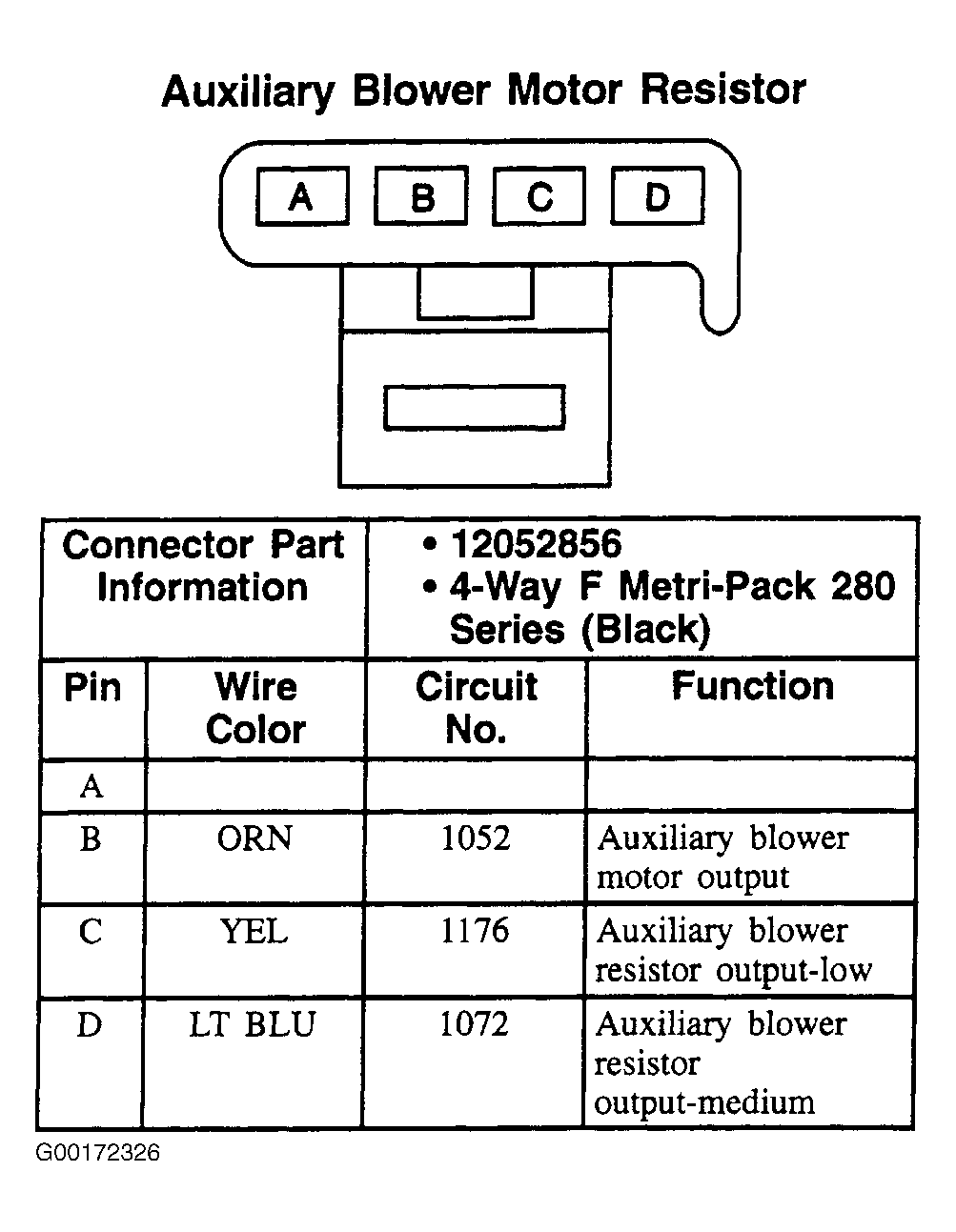

Fig 1: Auxiliary Blower Motor Resistor - 4-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
