Daytime Running Lamps (DRL) Control Module C1

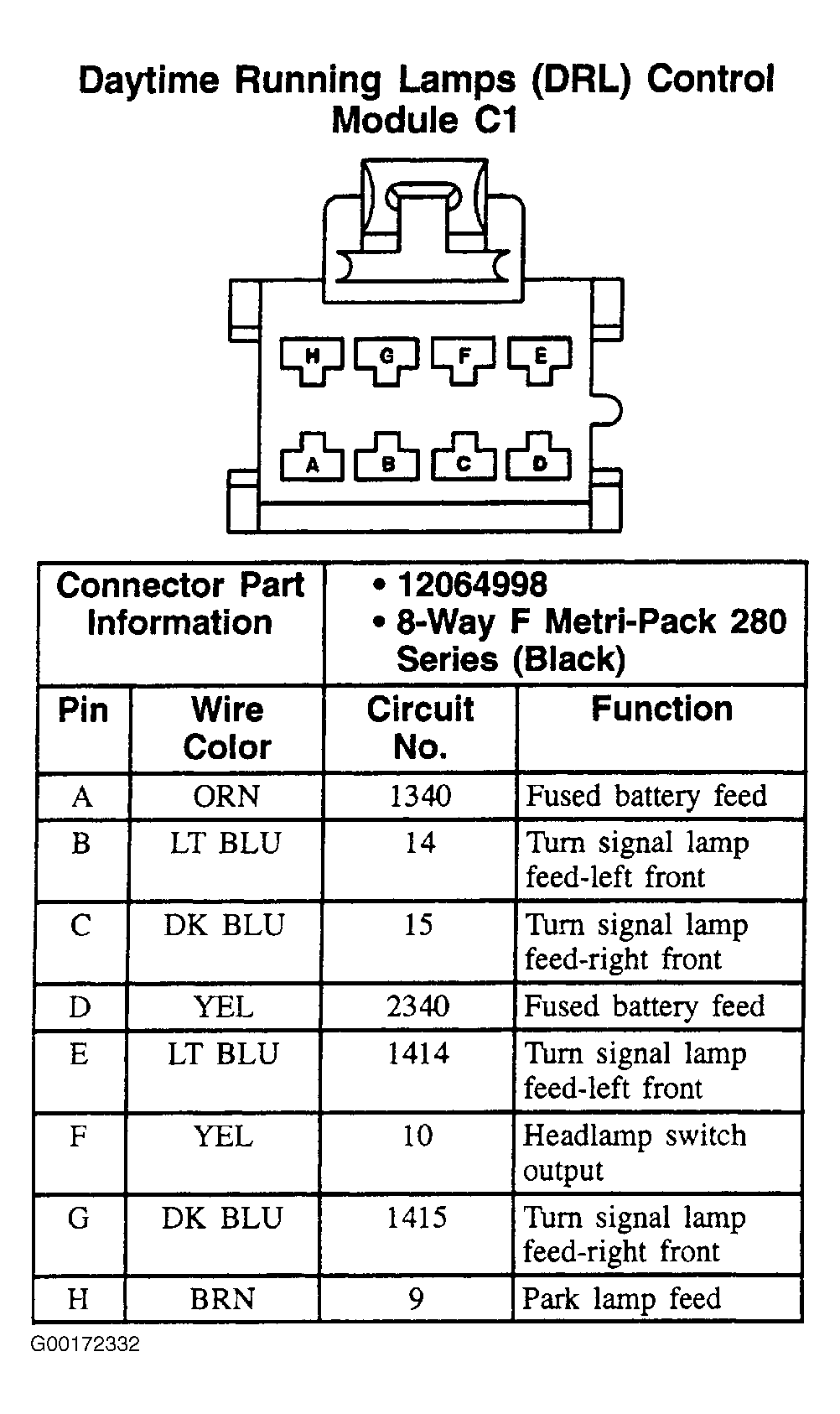

Fig 1: Daytime Running Lamps (DRL) Control Module C1 - 8-Pin Connector (Black)
G00172332Courtesy of GENERAL MOTORS CORP.
