Door Latch Release Actuator Switch (RR)

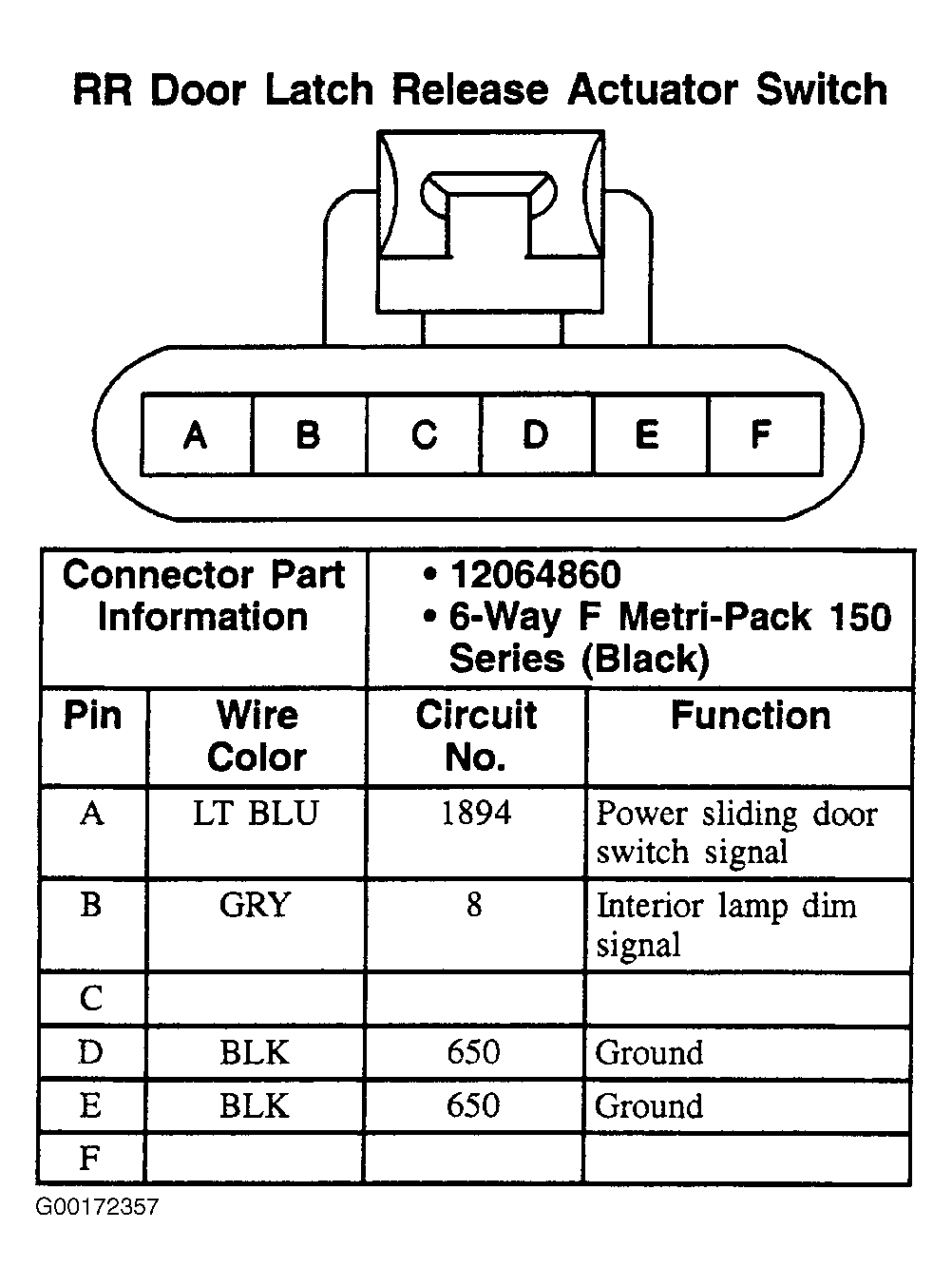

Fig 1: Door Latch Release Actuator Switch (RR) - 6-Pin Connector (Black)
G00172357Courtesy of GENERAL MOTORS CORP.
