Connector Terminal Identification
›
Generator Connectors
›
Generator (140 Amps)
Generator (140 Amps)

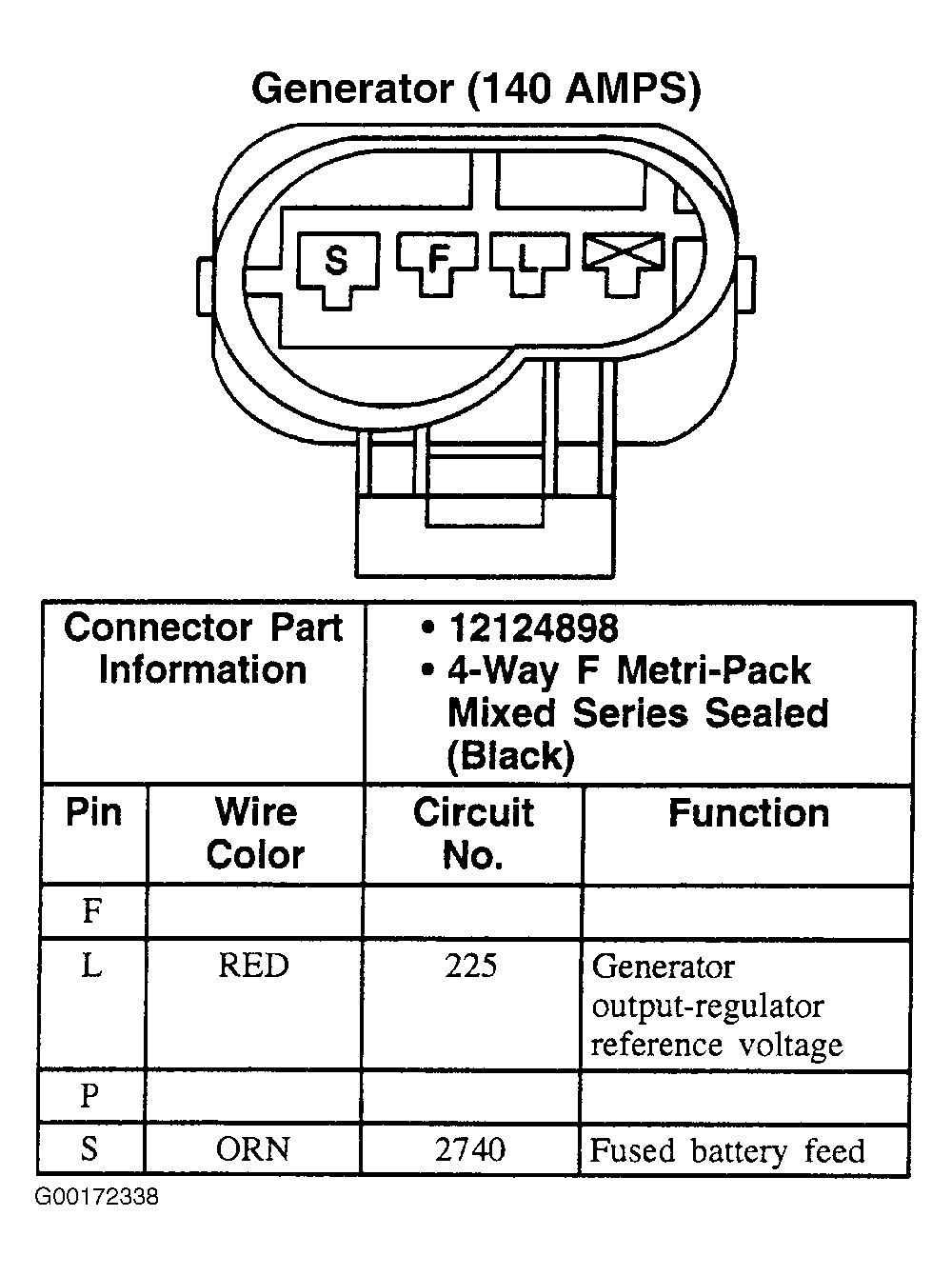

Fig 1: Generator (140 AMPS) - 4-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
