Idle Air Control (IAC) Valve

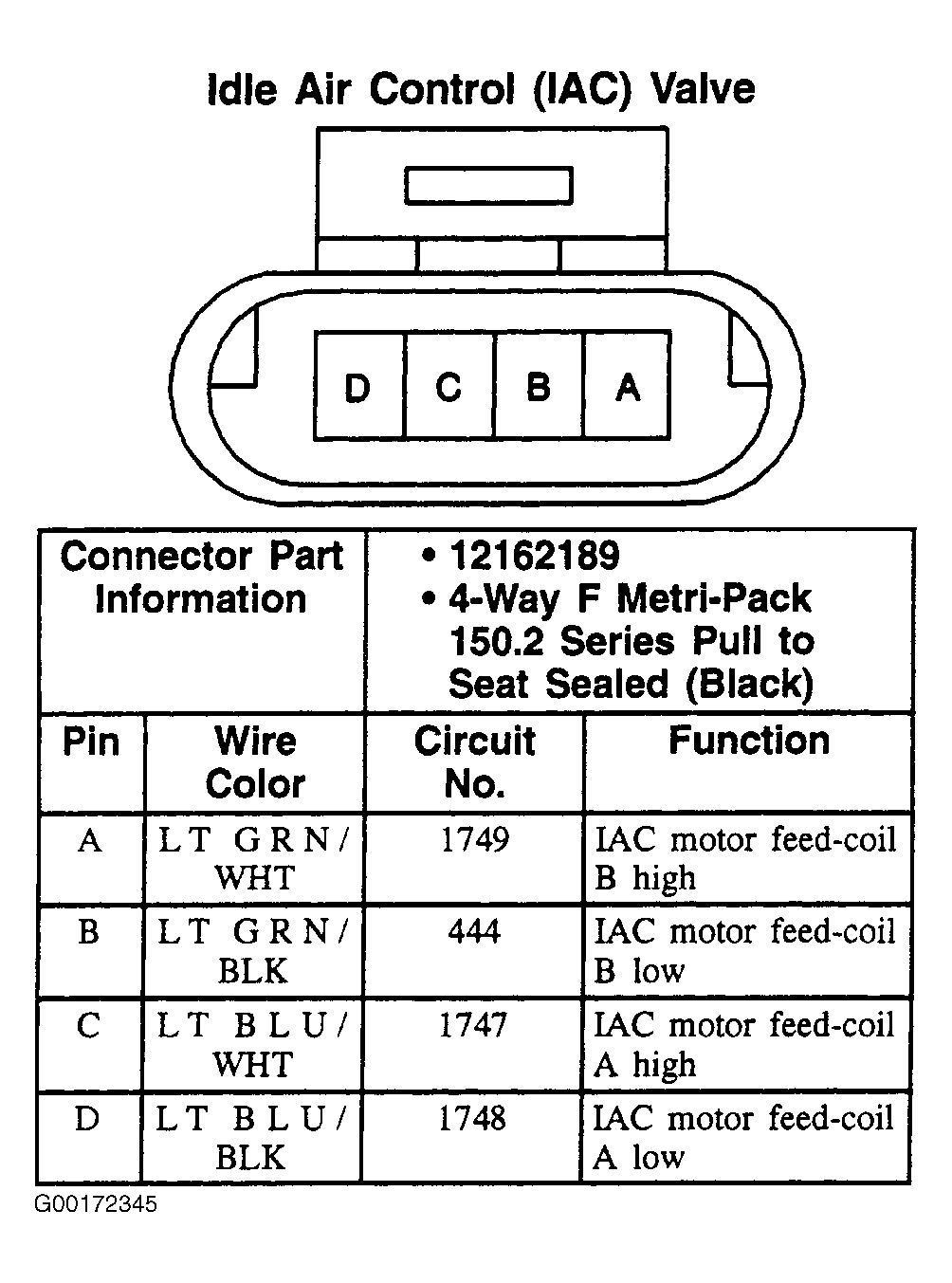

Fig 1: Idle Air Control (IAC) Valve - 4-Pin Connector (Black)
G00172345Courtesy of GENERAL MOTORS CORP.
