Ignition Control Module (ICM) C2

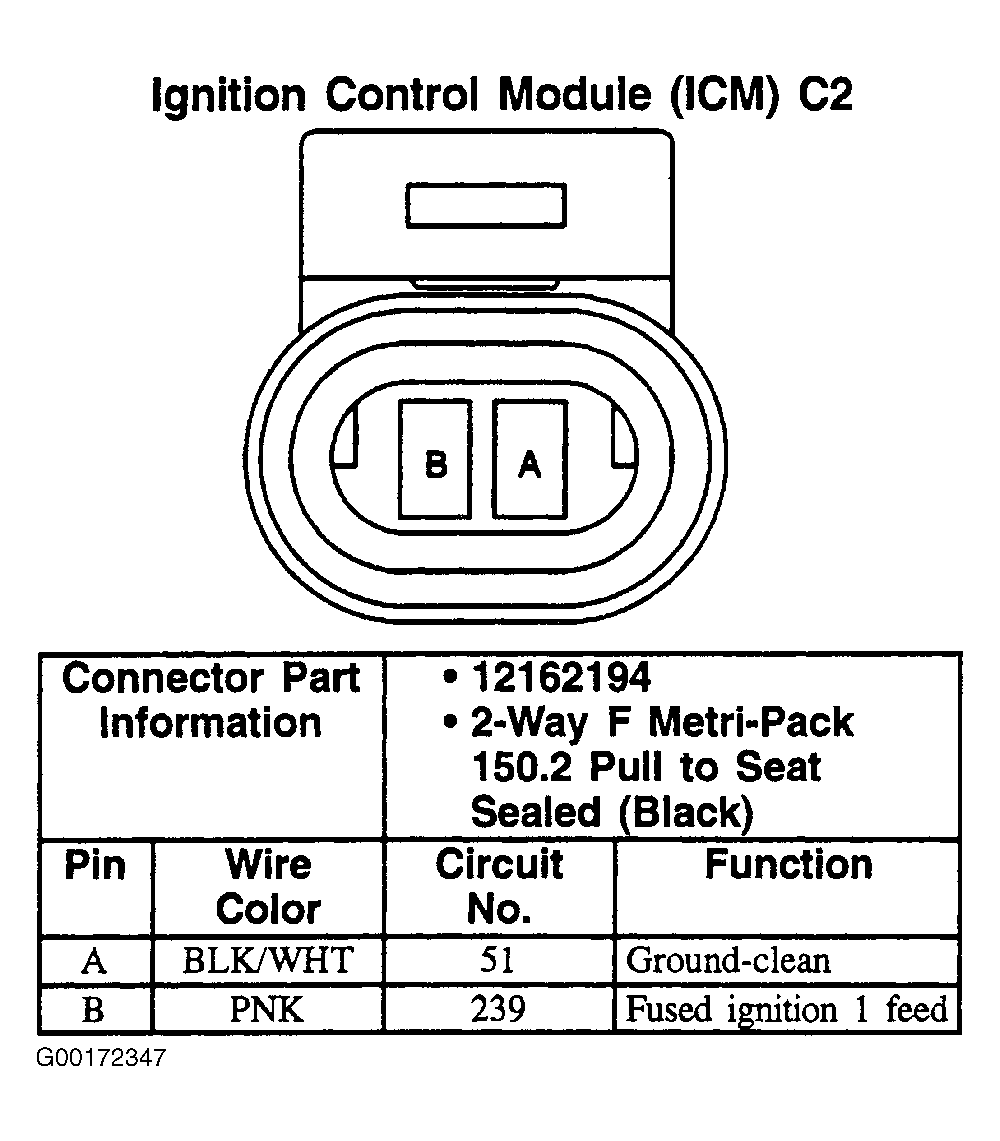

Fig 1: Ignition Control Module (ICM) C2 - 2-Pin Connector (Black)
G00172347Courtesy of GENERAL MOTORS CORP.
