Ignition Control Module (ICM) C3

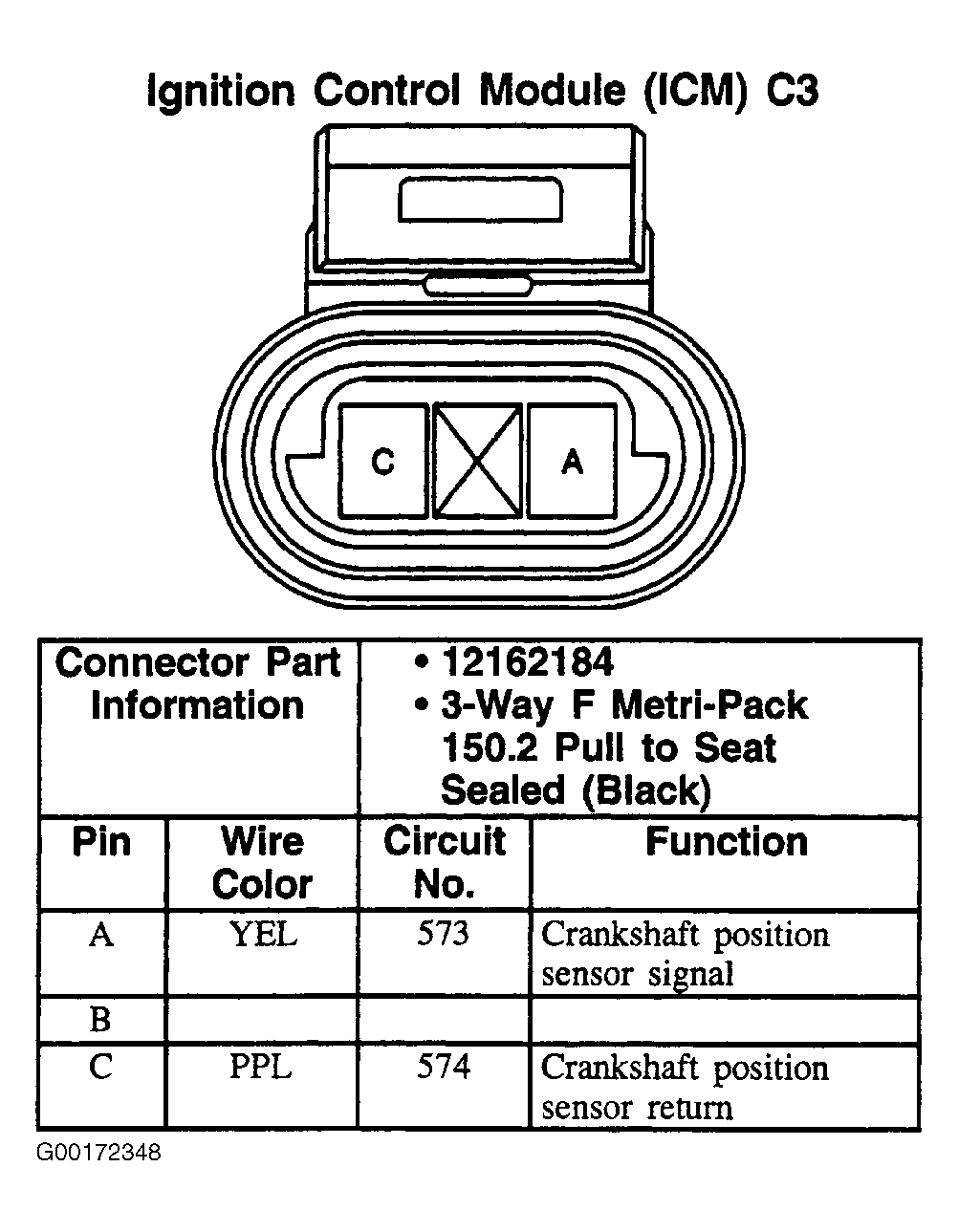

Fig 1: Ignition Control Module (ICM) C3 - 3-Pin Connector (Black)
G00172348Courtesy of GENERAL MOTORS CORP.
