Interior Lamp & Multi-Function Switch Connectors
›
Interior Lamp & Multi-Function Switch C3
Interior Lamp & Multi-Function Switch C3

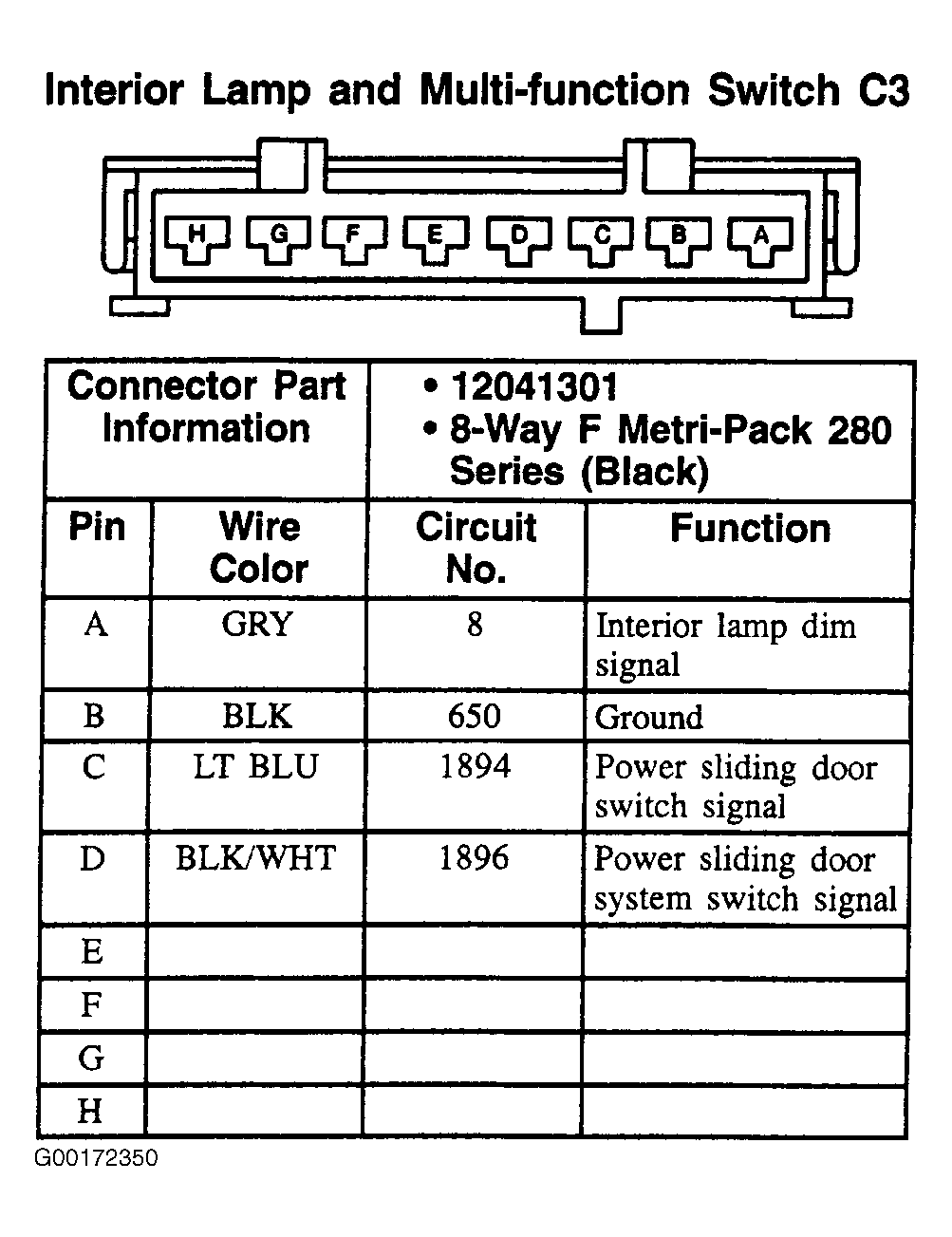

Fig 1: Interior Lamp & Multi-Function Switch C3 - 8-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
