Connector Terminal Identification
›
Malfunction Indicator Lamp Traction Control Module
Malfunction Indicator Lamp Traction Control Module

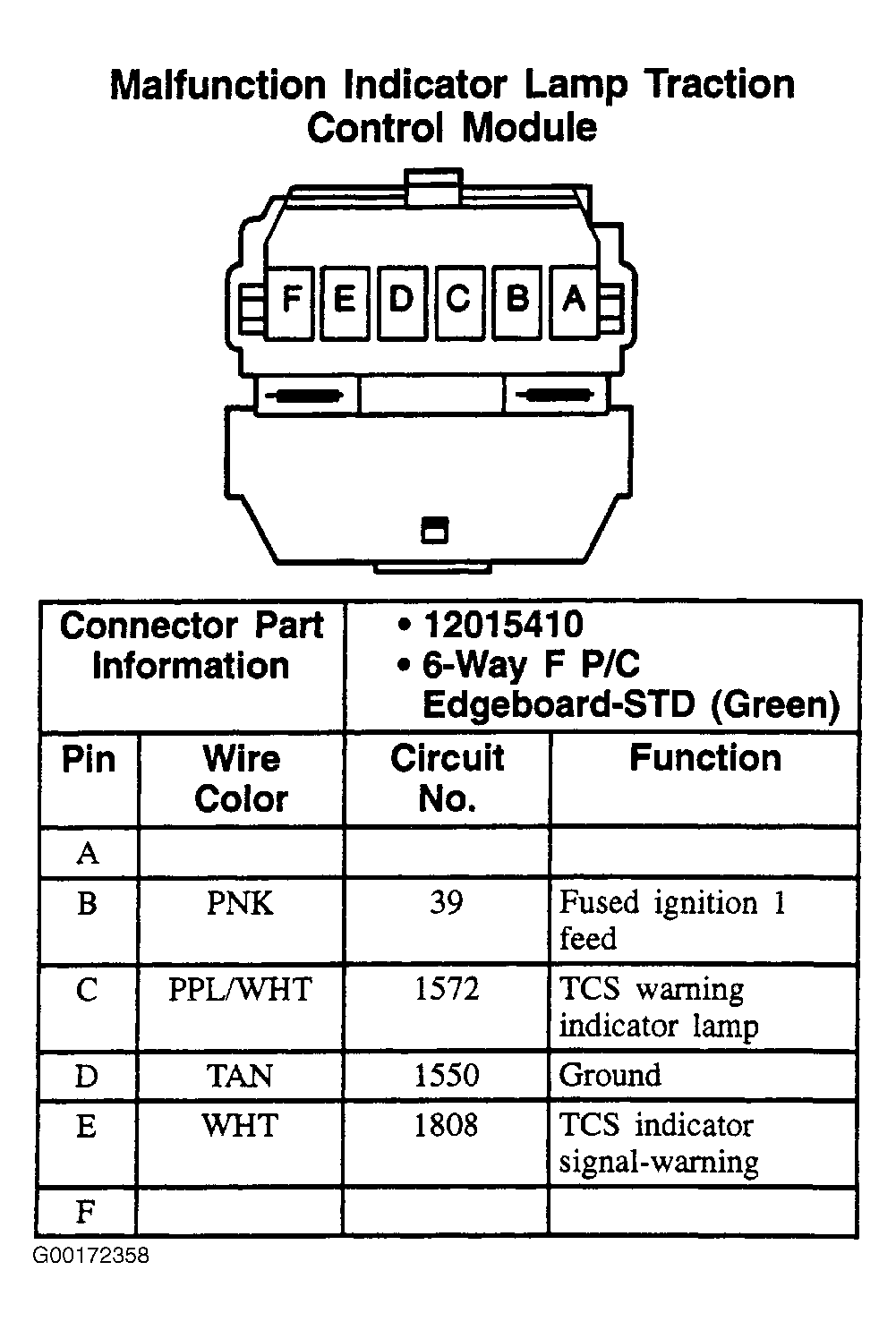

Fig 1: Malfunction Indicator Lamp Traction Control Module - 6-Pin Connector (Green)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
