Connector Terminal Identification
›
Mirror Motor Pack (LH & RH)
Mirror Motor Pack (LH & RH)

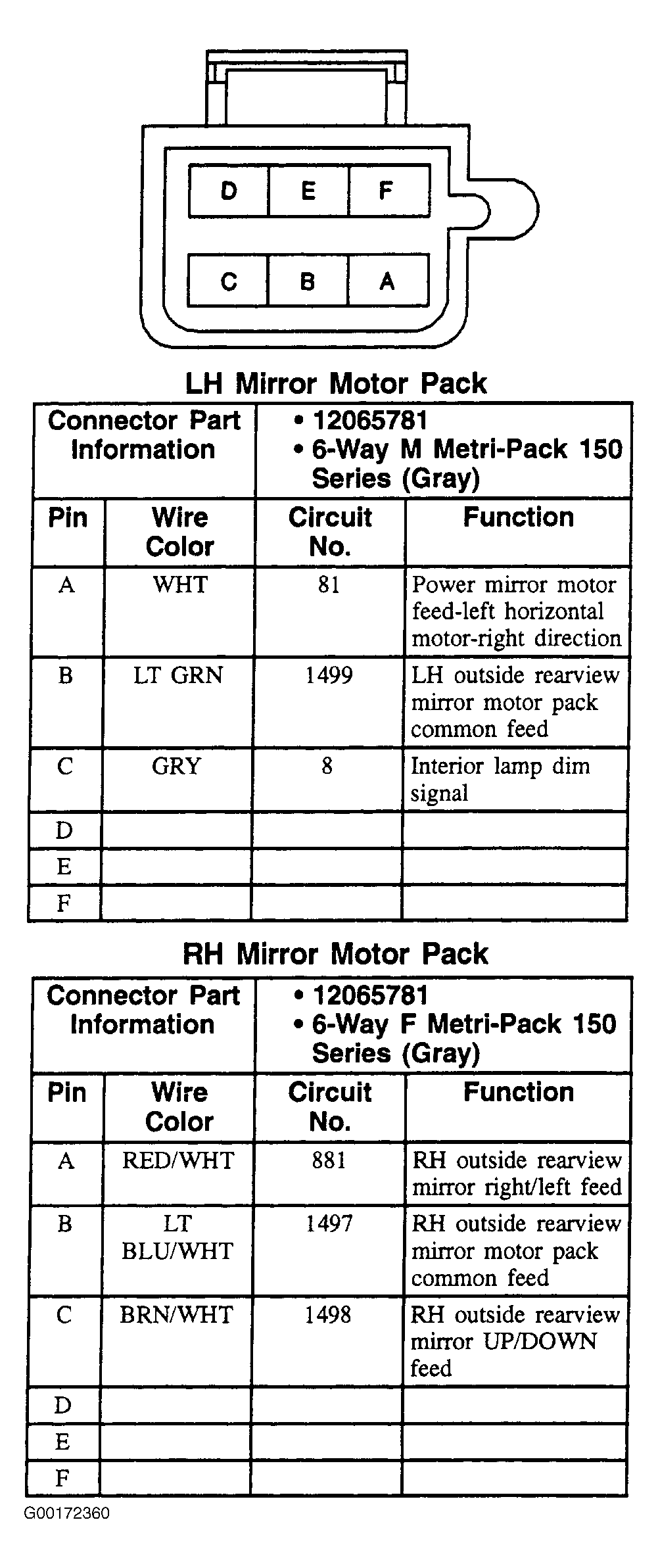

Fig 1: Mirror Motor Pack (LH & RH) - 6-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
