Connector Terminal Identification
›
Outside Rearview Mirror Remote Control Switch
Outside Rearview Mirror Remote Control Switch

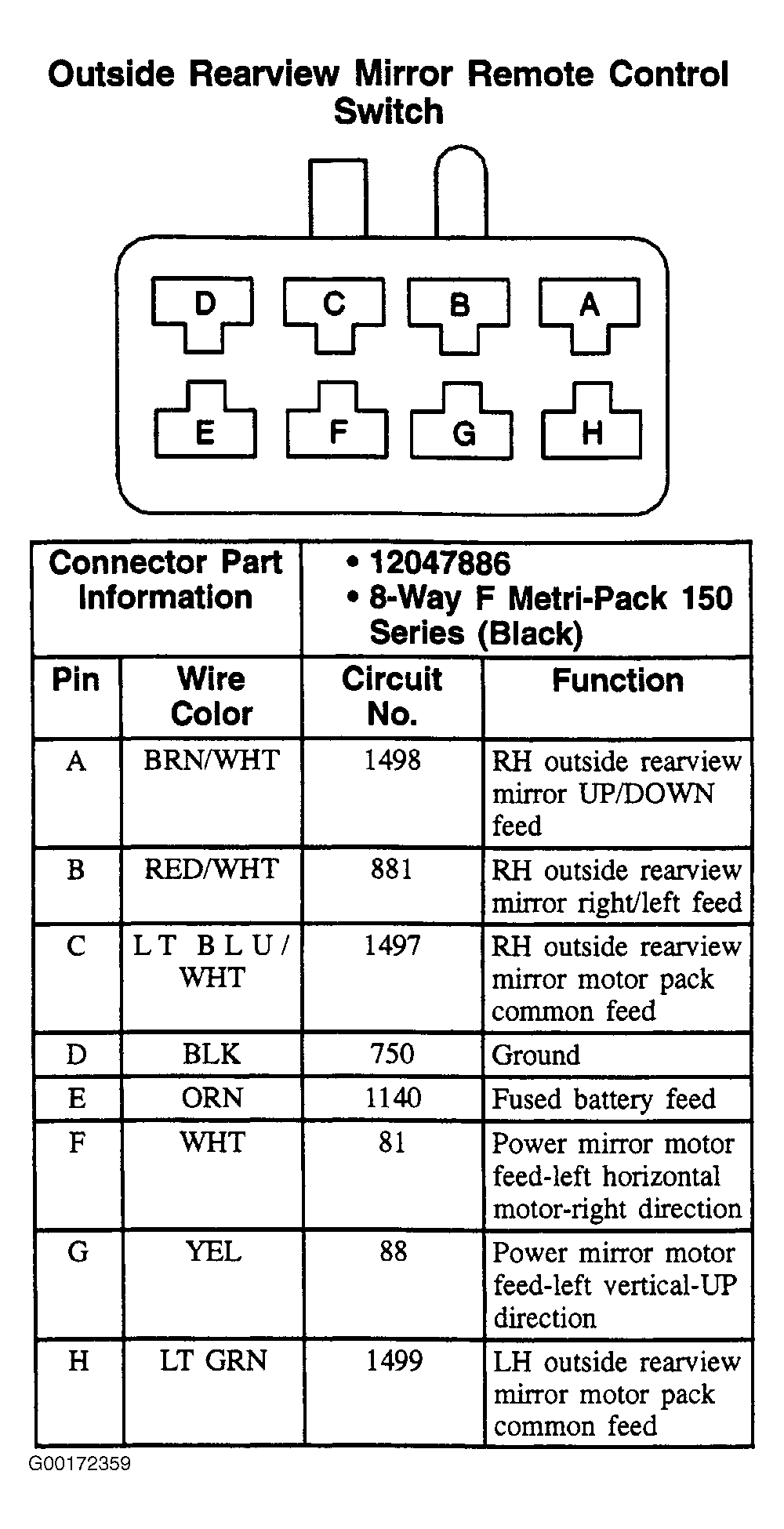

Fig 1: Outside Rearview Mirror Remote Control Switch - 8-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
