Connector Terminal Identification
›
Rear Window Wiper Motor
Rear Window Wiper Motor

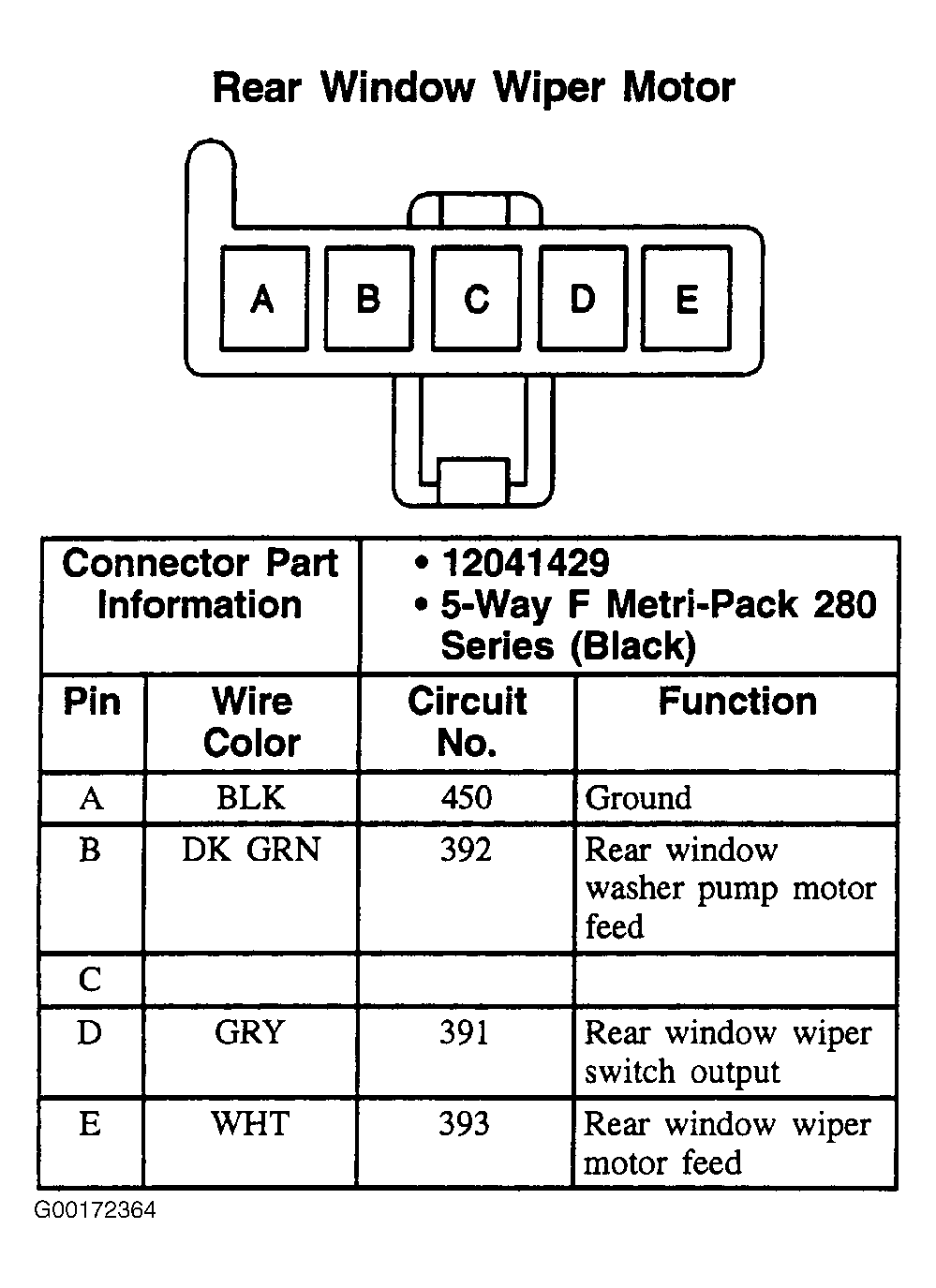

Fig 1: Rear Window Wiper Motor - 5-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
