Rear Window Wiper/Washer & Multi-Function Switch Connectors
›
Rear Window Wiper/Washer & Multi-Function Switch C3
Rear Window Wiper/Washer & Multi-Function Switch C3

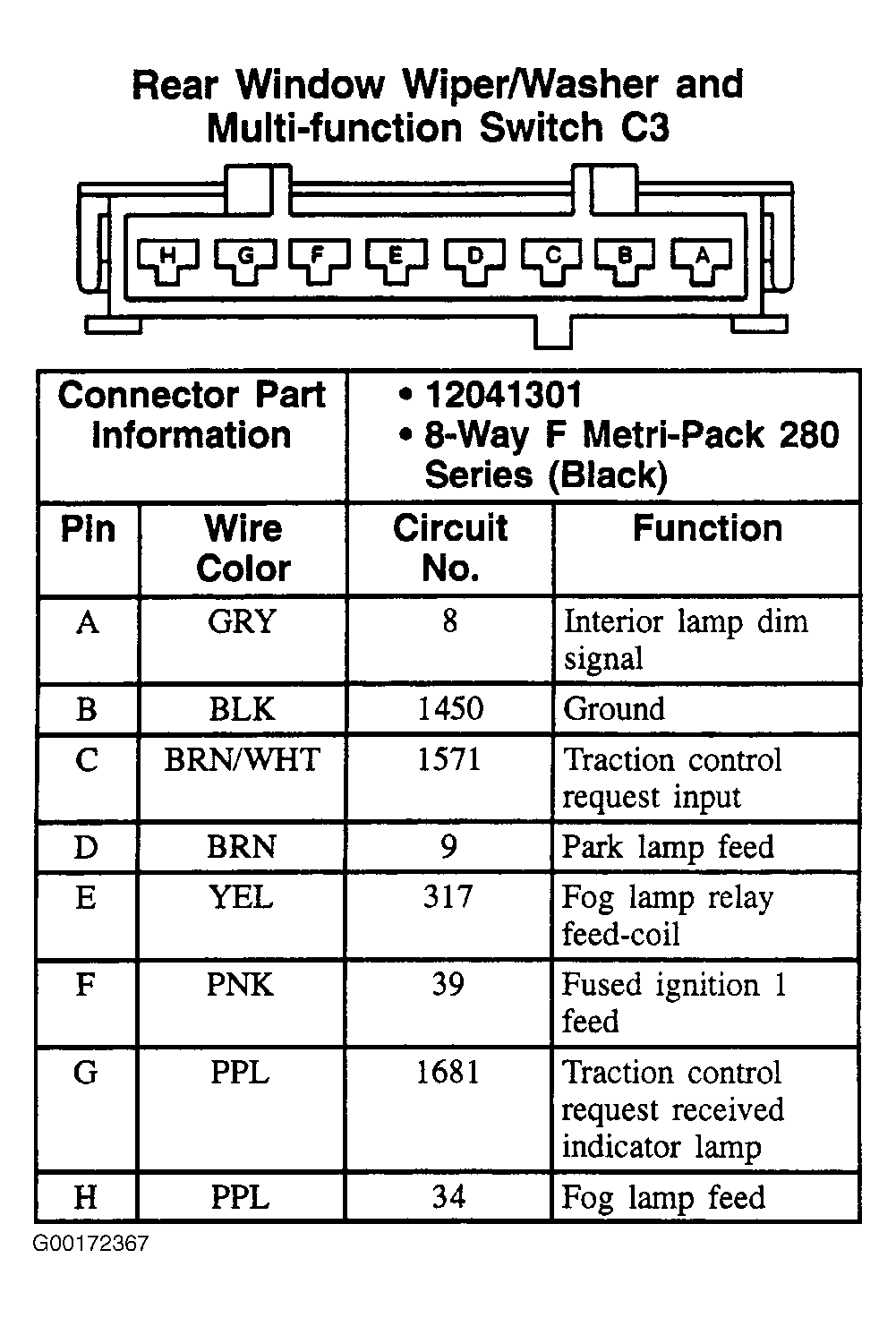

Fig 1: Rear Window Wiper/Washer & Multi-Function Switch C3 - 8-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
