Connector Terminal Identification
›
Relay Center
Relay Center

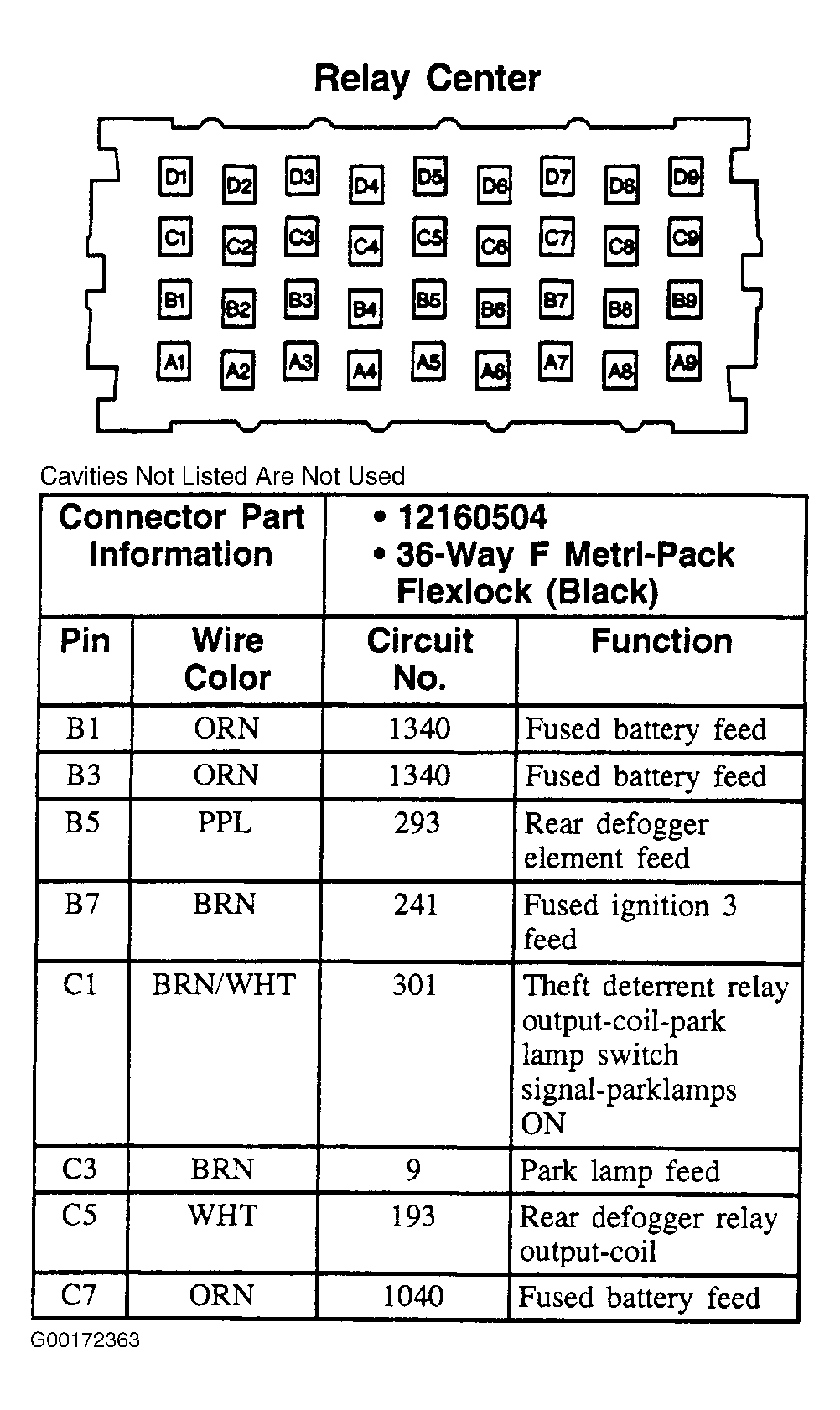

Fig 1: Relay Center - 36-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
