Connector Terminal Identification
›
TAILLAMP (LH & RH)
TAILLAMP (LH & RH)

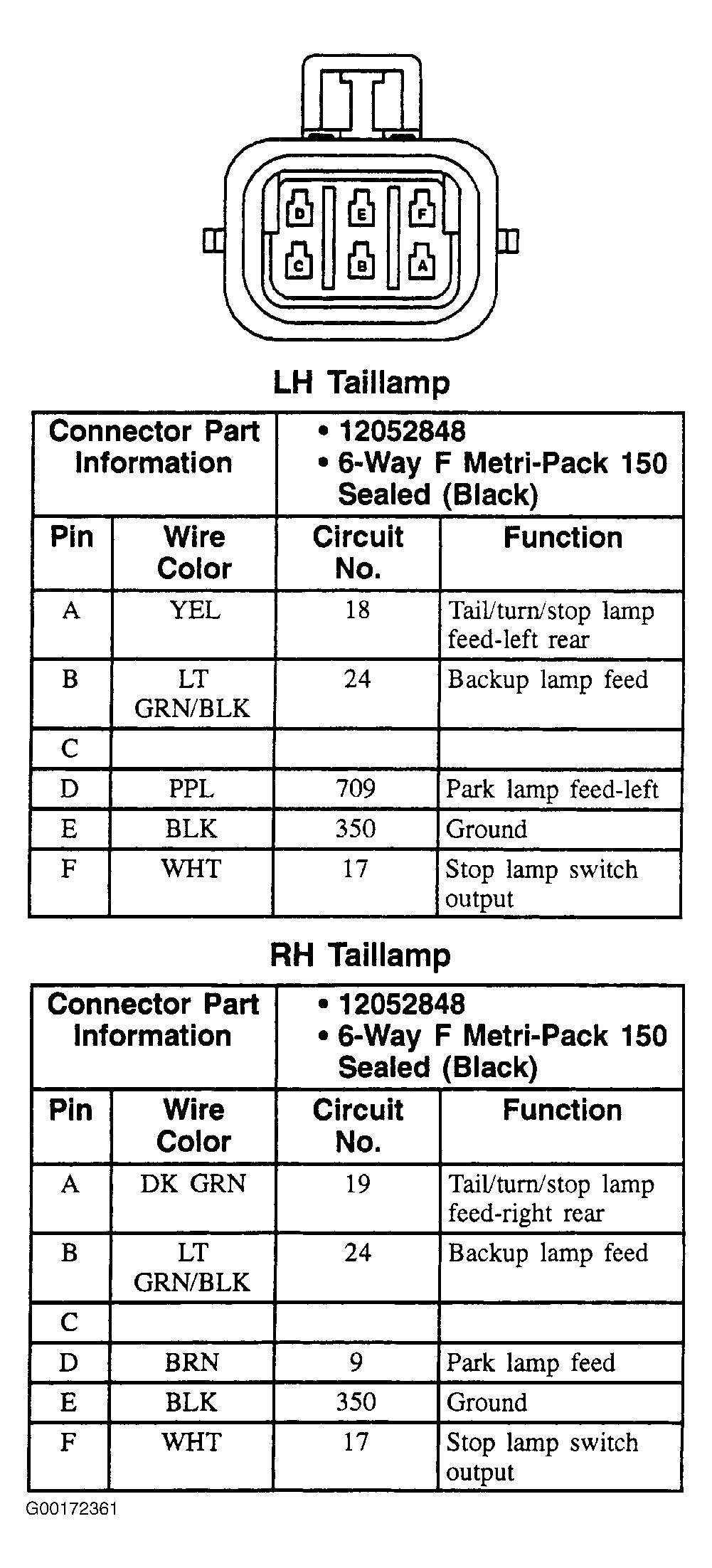

Fig 1: Taillamp (LH & RH) - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
