Theft Deterrent Shock Sensor

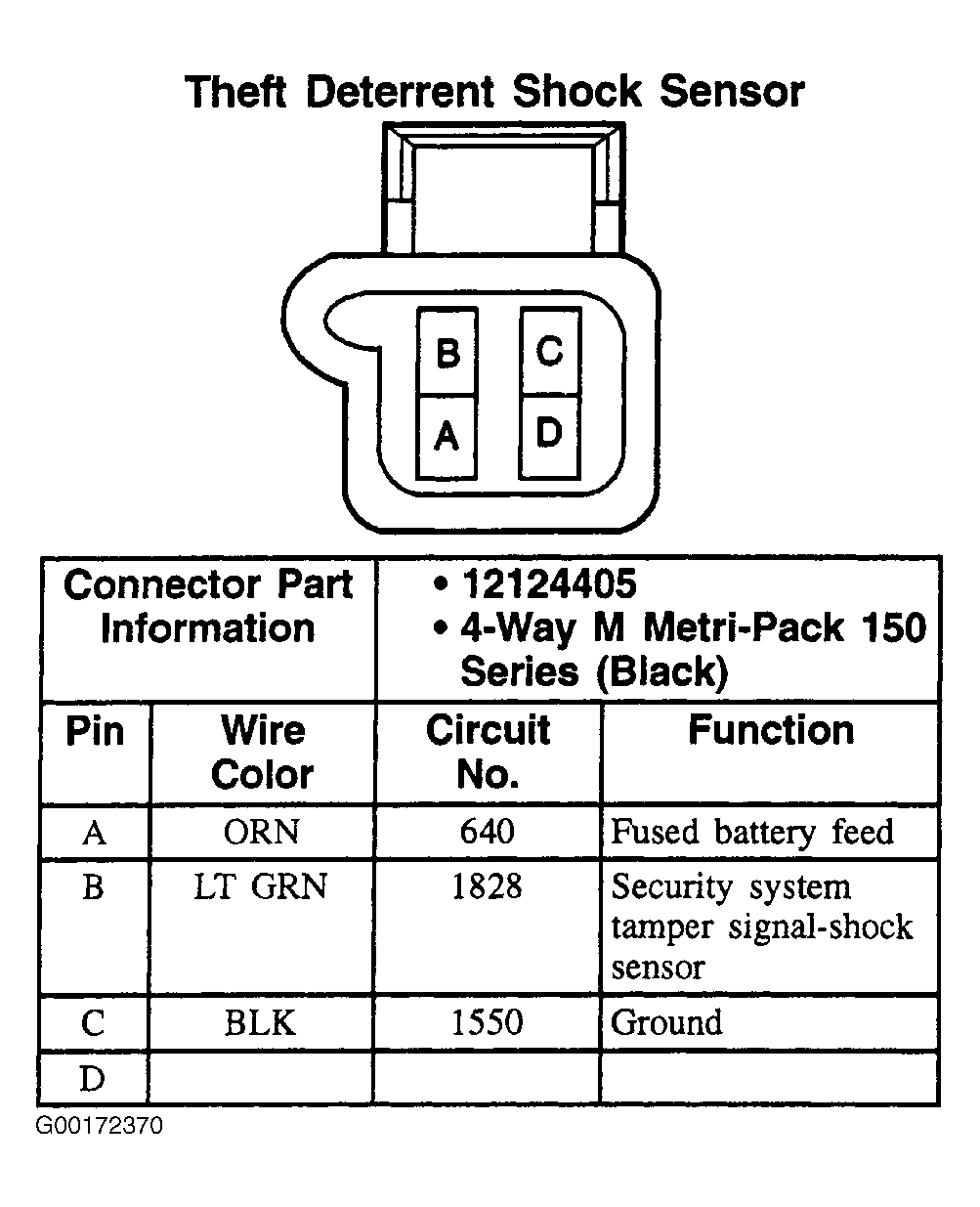

Fig 1: Theft Deterrent Shock Sensor - 4-Pin Connector (Black)
G00172370Courtesy of GENERAL MOTORS CORP.
