Connector Terminal Identification
›
Traction Control Motor Pack
Traction Control Motor Pack

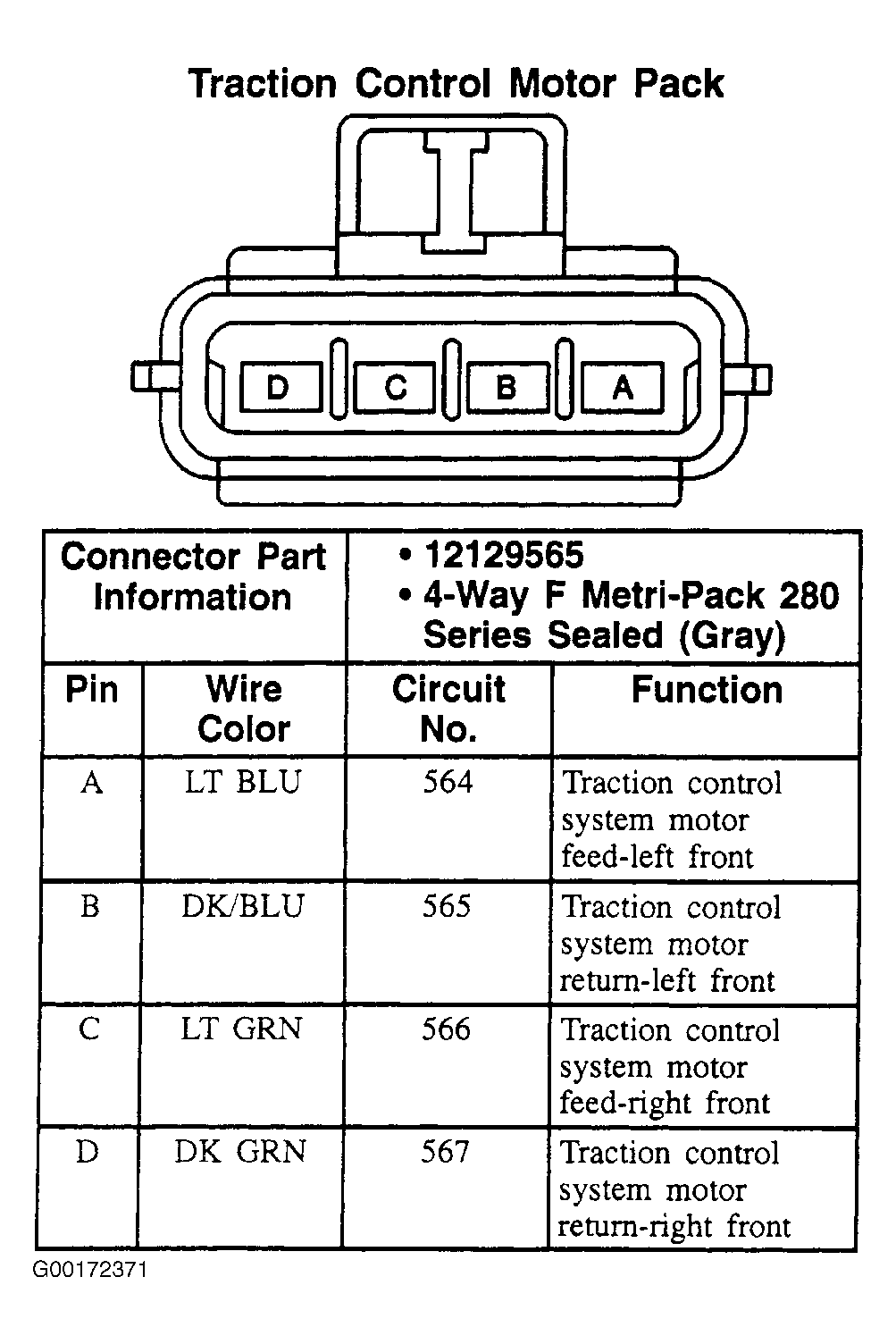

Fig 1: Traction Control Motor Pack - 4-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
