Connector Terminal Identification
›
Transaxle Range Switch Connectors
›
Transaxle Range Switch C1
Transaxle Range Switch C1

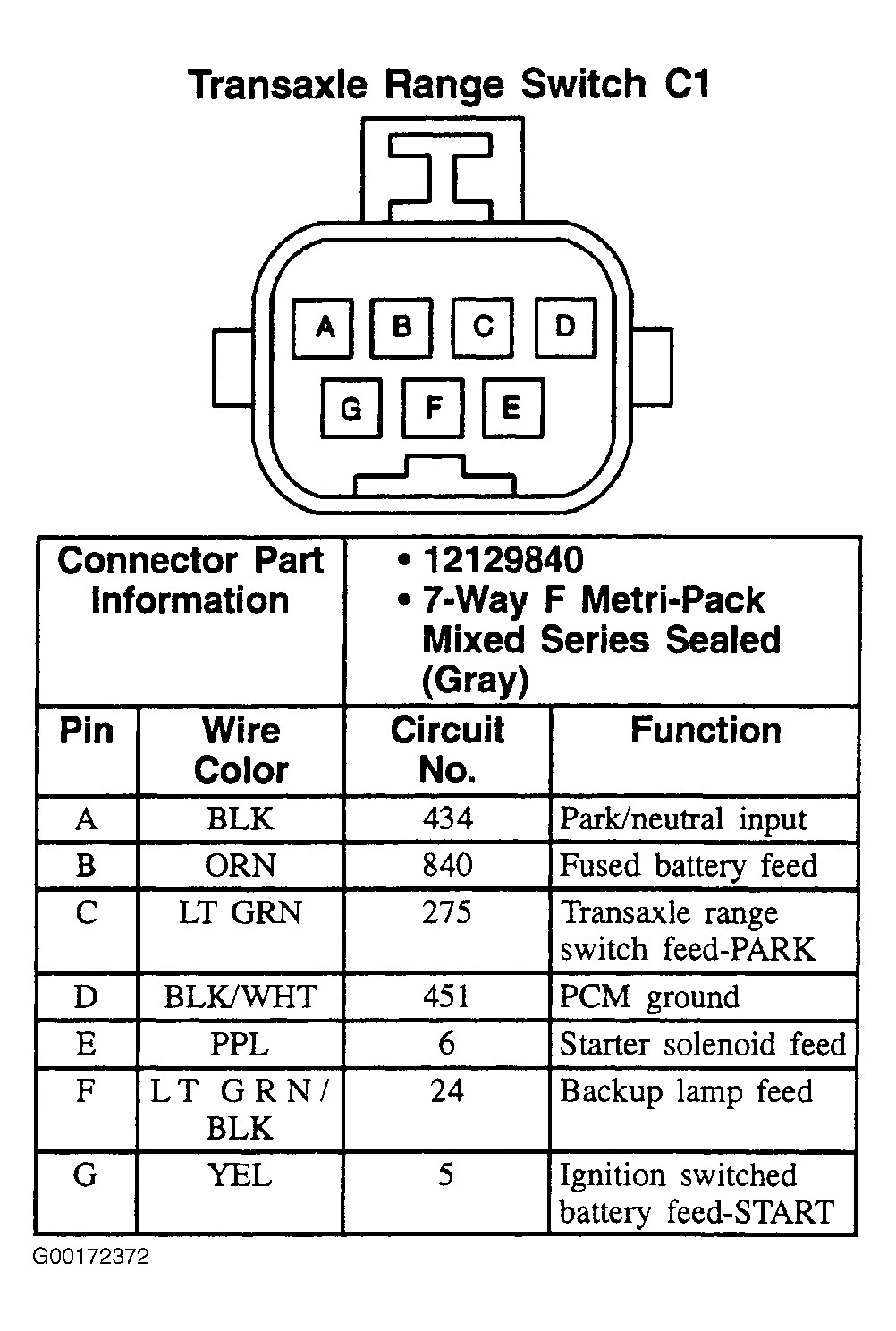

Fig 1: Transaxle Range Switch C1 - 7-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
