Connector Terminal Identification
›
Transaxle Range Switch Connectors
›
Transaxle Range Switch C2
Transaxle Range Switch C2

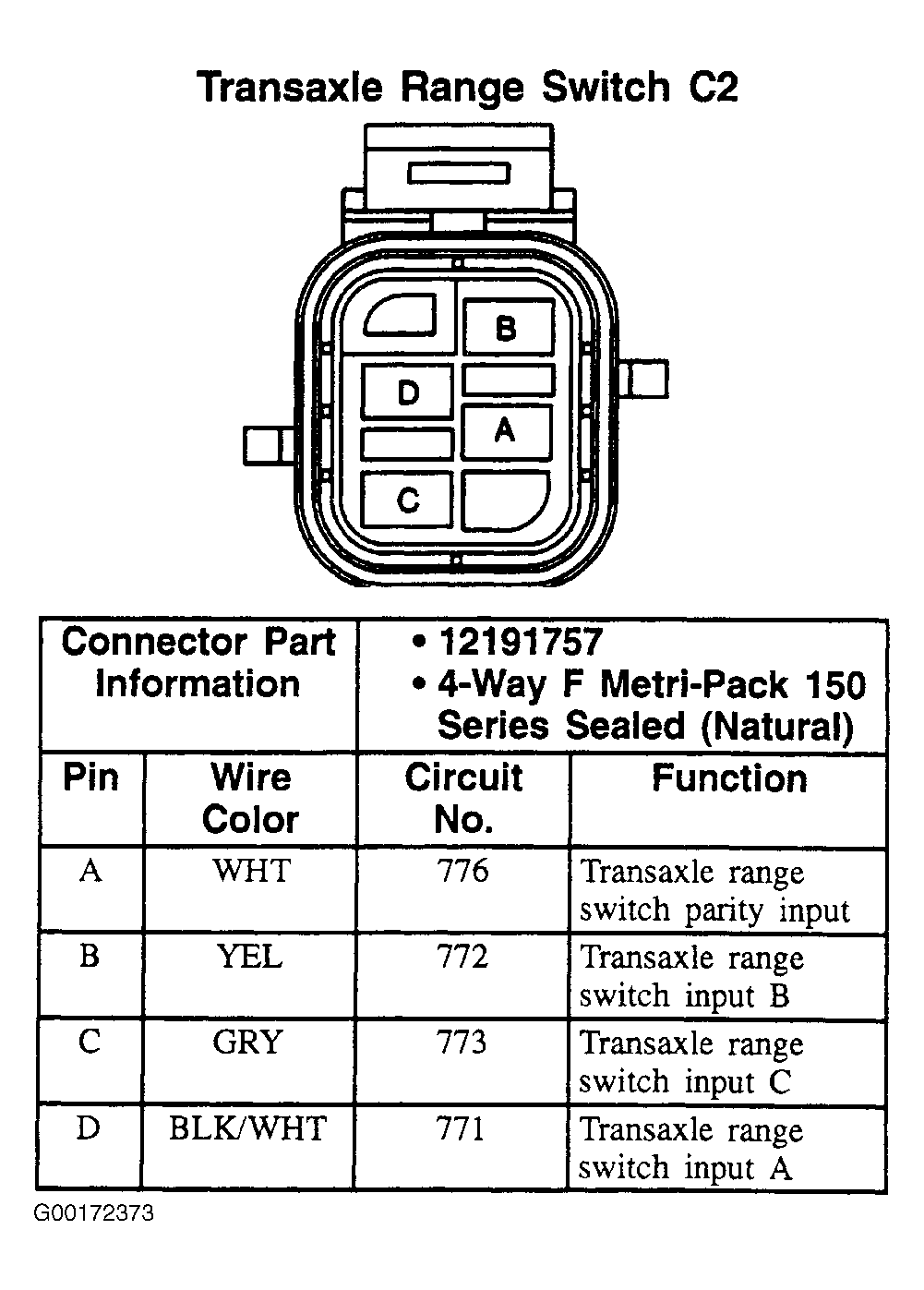

Fig 1: Transaxle Range Switch C2 - 4-Pin Connector (Natural)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
