PCM Connector C2

Fig 1: PCM 80-Pin Connector C2 - Terminal Identification
G97F28444Courtesy of GENERAL MOTORS CORP.

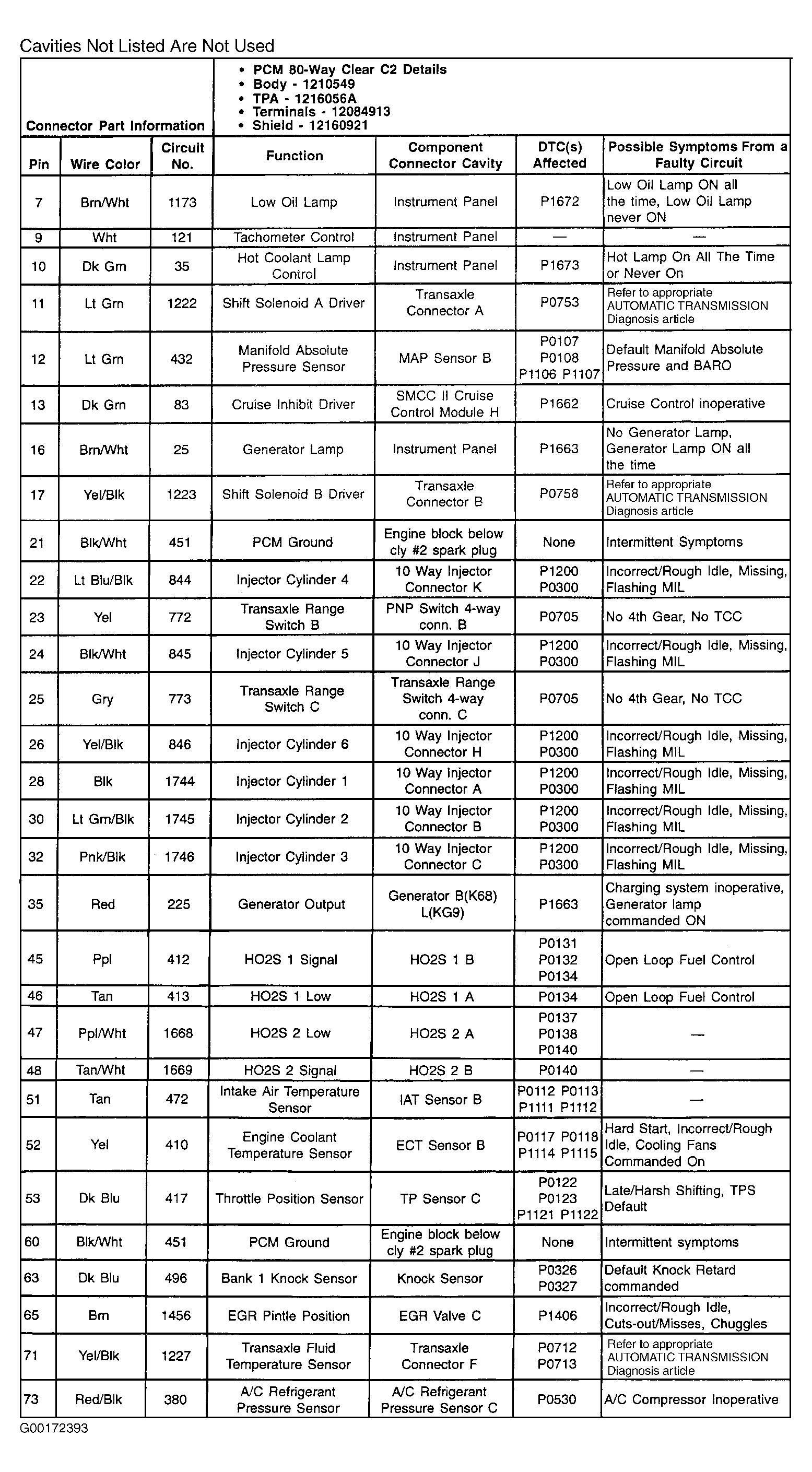

Fig 2: PCM 80-Pin Connector C2 (Clear) - Legend
G00172393Courtesy of GENERAL MOTORS CORP.
