Maintenance Information
›
Service Point Locations
Service Point Locations

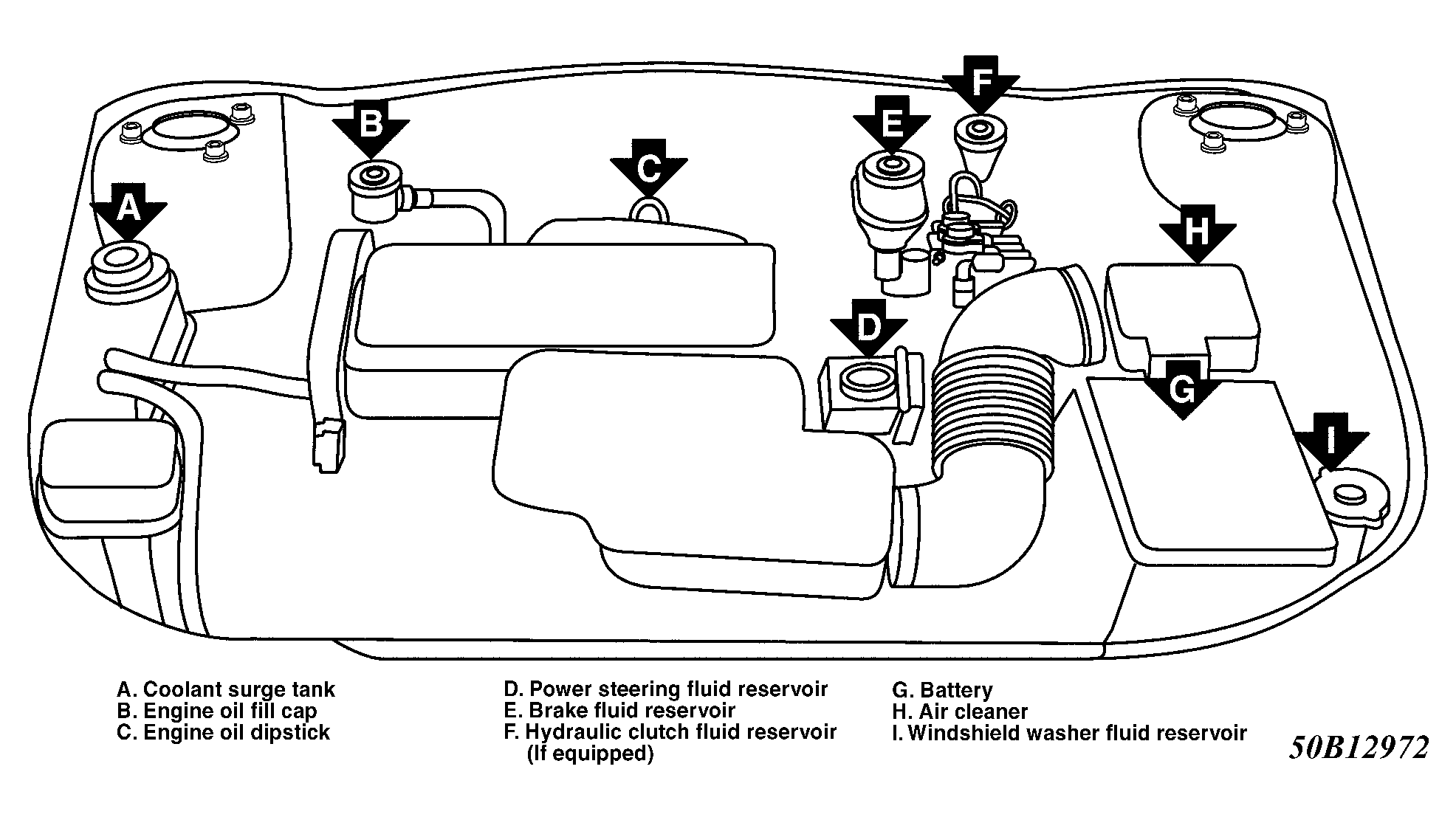

Fig 1: Service Point Locations (2.2L Shown)
Courtesy of GENERAL MOTORS CORP.

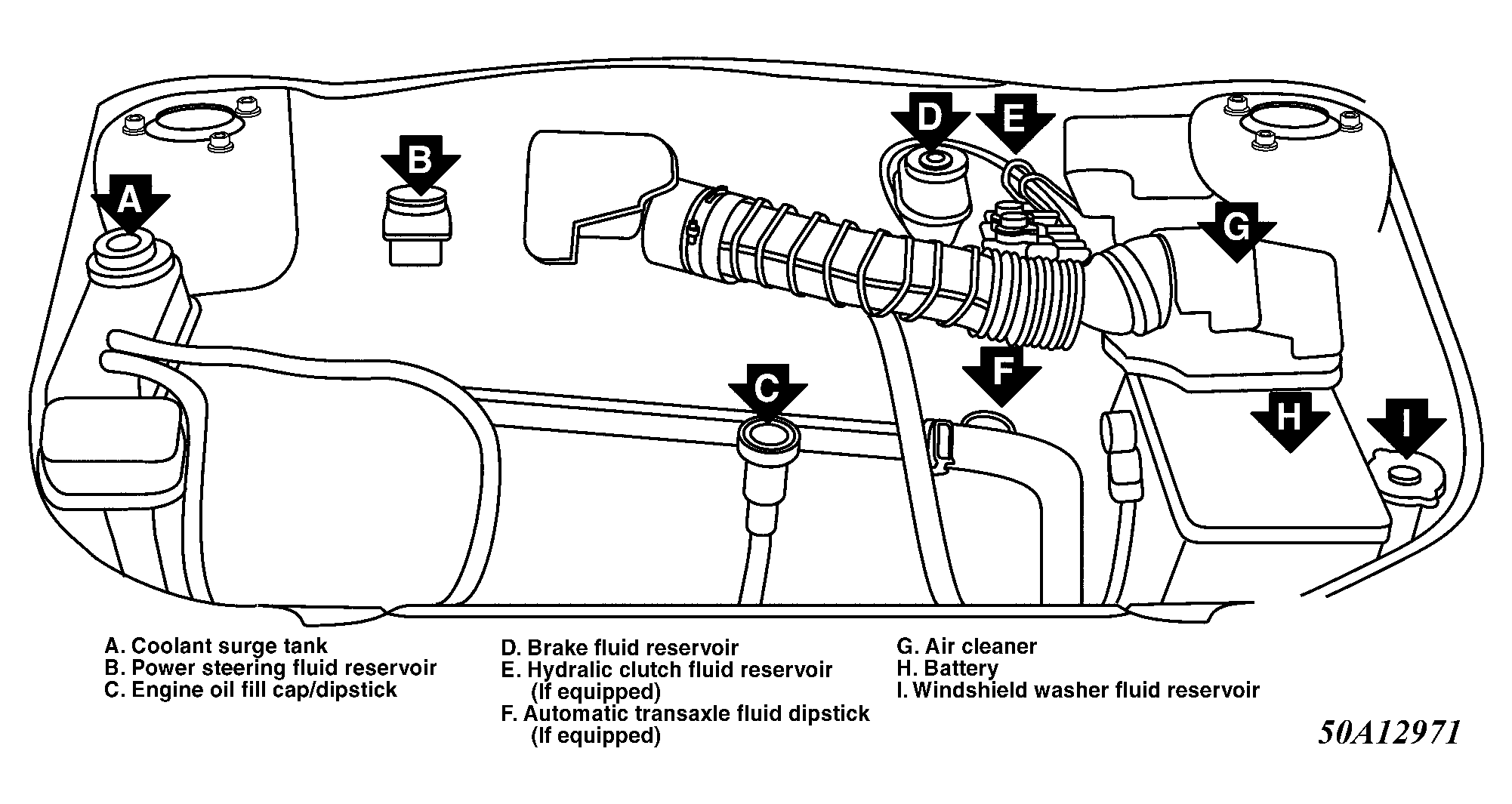

Fig 2: Service Point Locations (2.4L Shown)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
