Right Electrical Center Identification: Notes

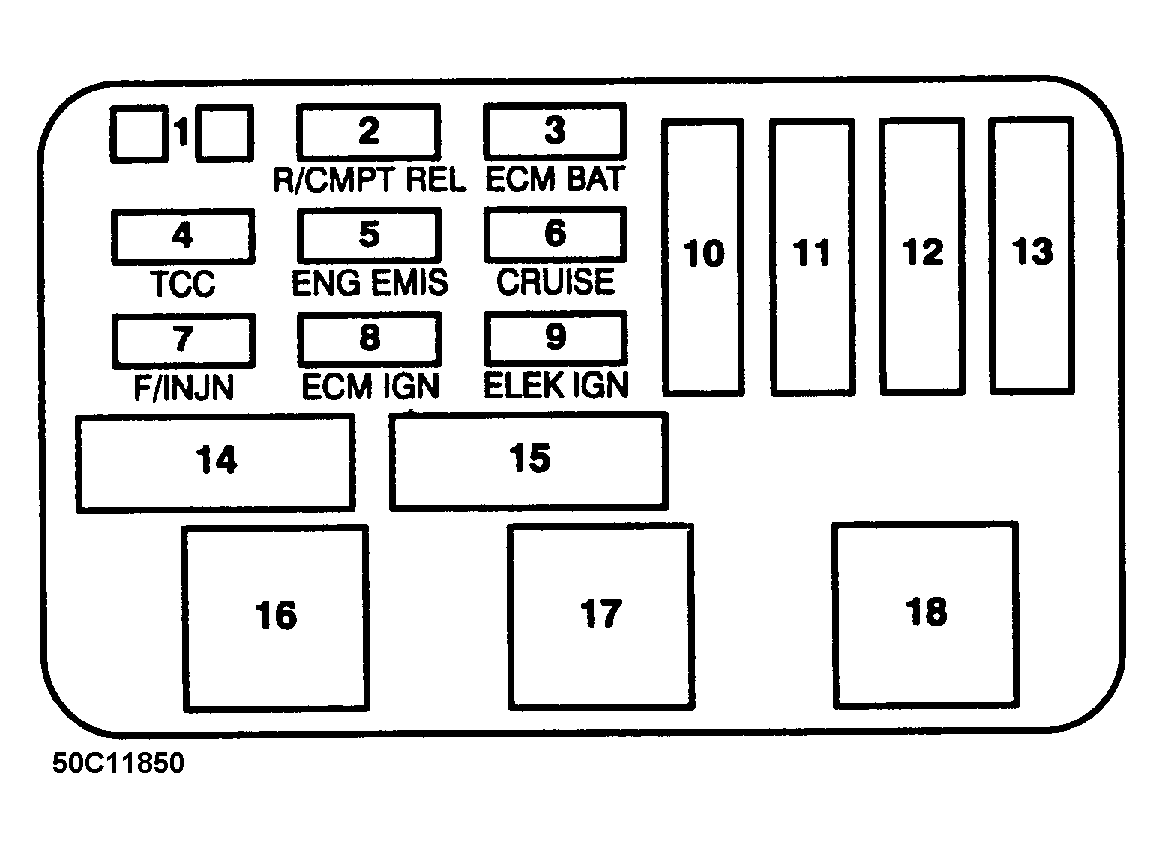

Fig 1: Right Electrical Center Identification

Courtesy of GENERAL MOTORS CORP.

WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
