Instrument Panel Fuse Block

NOTE: Instrument panel fuse block is located under the left side of the instrument panel.

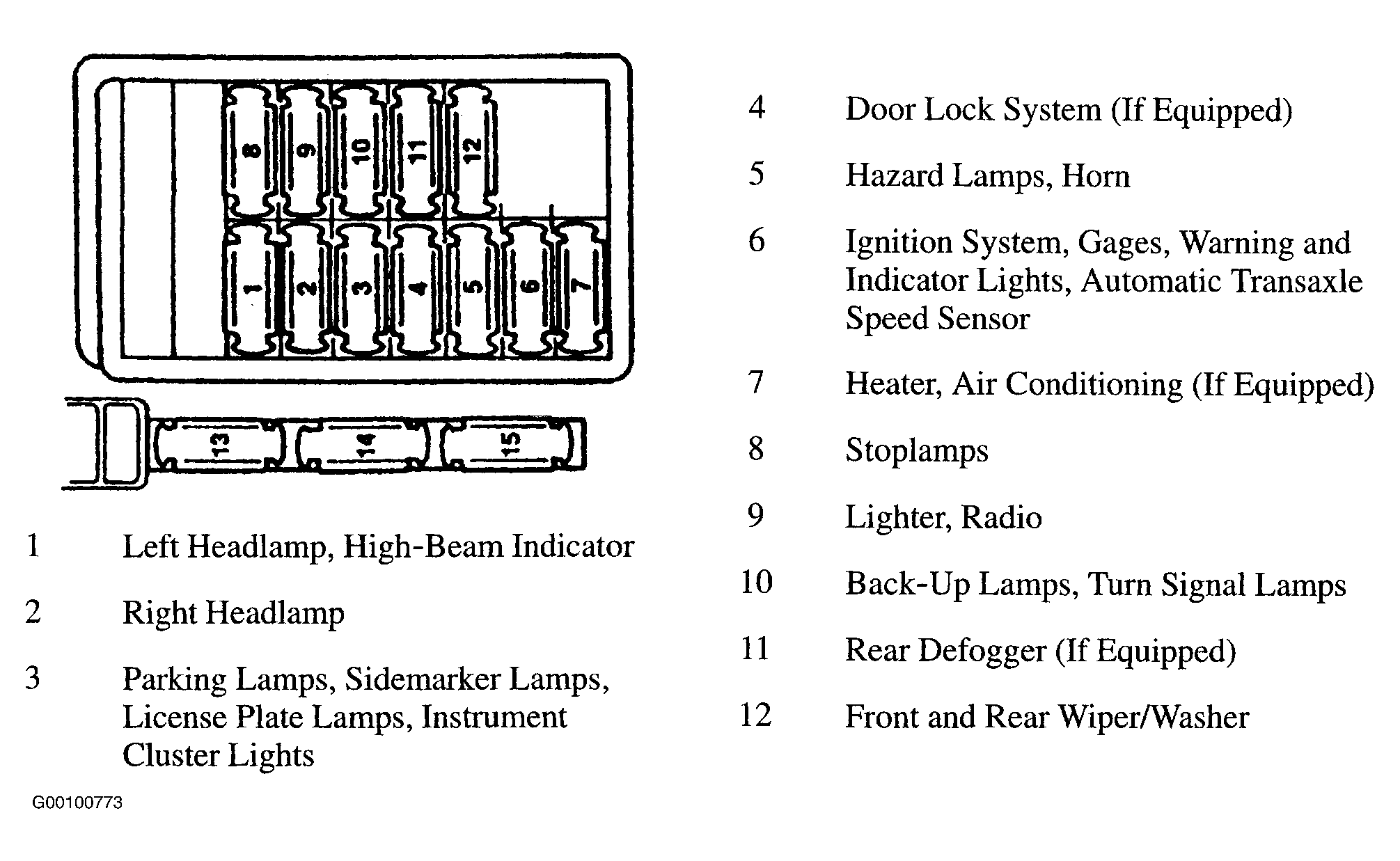

Fig 1: Identifying Instrument Panel Fuse Block Components

Courtesy of GENERAL MOTORS CORP.
