Front-End Discriminating Sensor: Removal
- Before proceeding, see SERVICE PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .

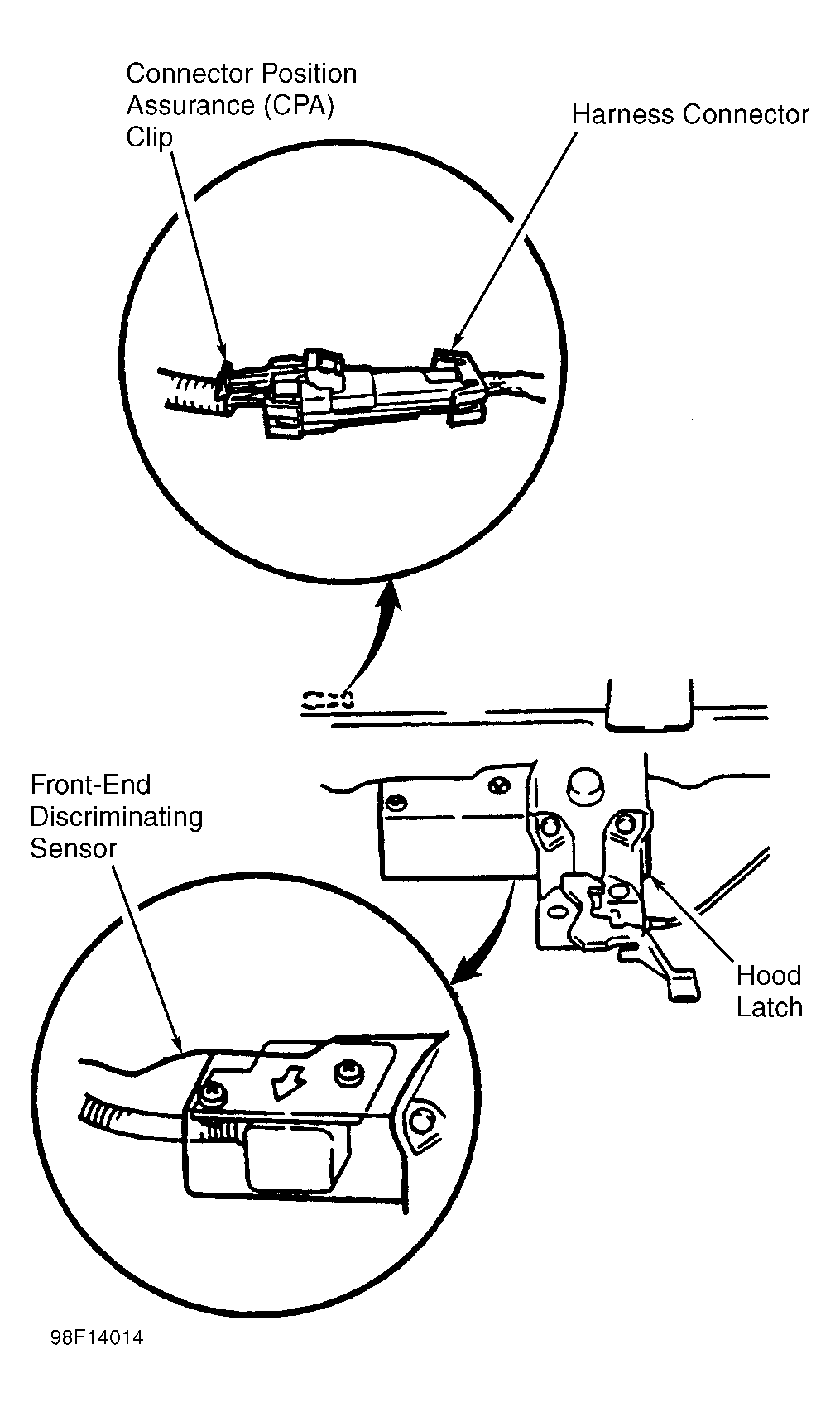

- Remove CPA clip and disconnect sensor connector. Disconnect pigtail from pigtail clips. Remove sensor mounting fasteners and sensor from vehicle. See Fig 1.
