Front Door Key Lock & Unlock Switch

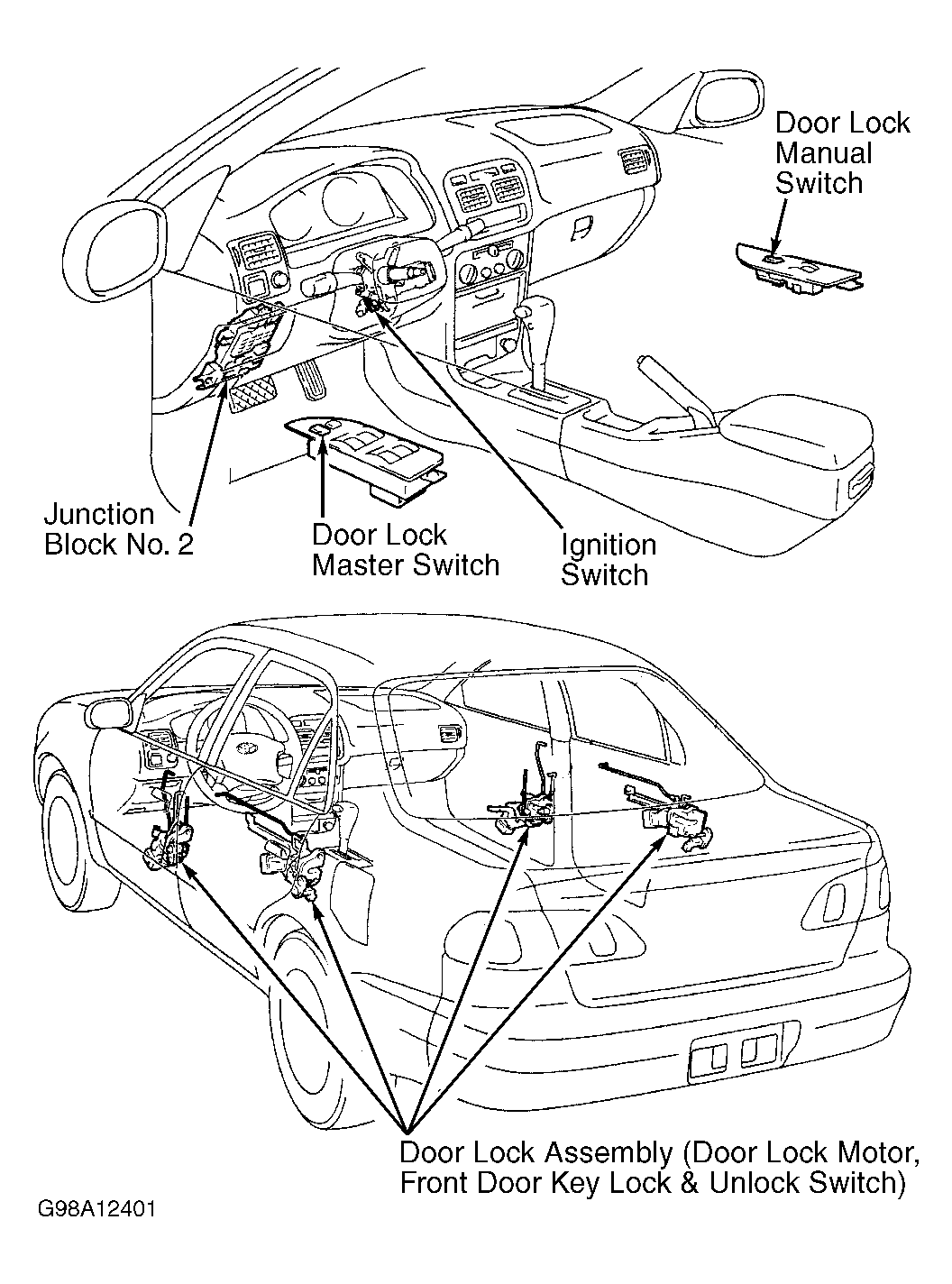

- Locate front door key lock and unlock switch. See Figure
. Remove front door trim. See FRONT DOOR TRIM
under REMOVAL & INSTALLATION. Remove service hole cover.
- Locate and disconnect door key lock and unlock 3-pin connector. See Fig 1
. Ensure continuity exists between switch terminals No. 2 and 3 with switch in LOCK position. Ensure continuity exists between switch terminals No. 1 and No. 3 with switch in UNLOCK position. If continuity is not as specified, replace switch.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
