| Axle Shaft Nuts |
166 (225) |
| Ball Joint-To-Lower Control Arm Bolt & Nuts |
105 (142) |
| Brake Caliper Bolts |
65 (88) |
| Crossmember Brace Nuts |
51 (69) |

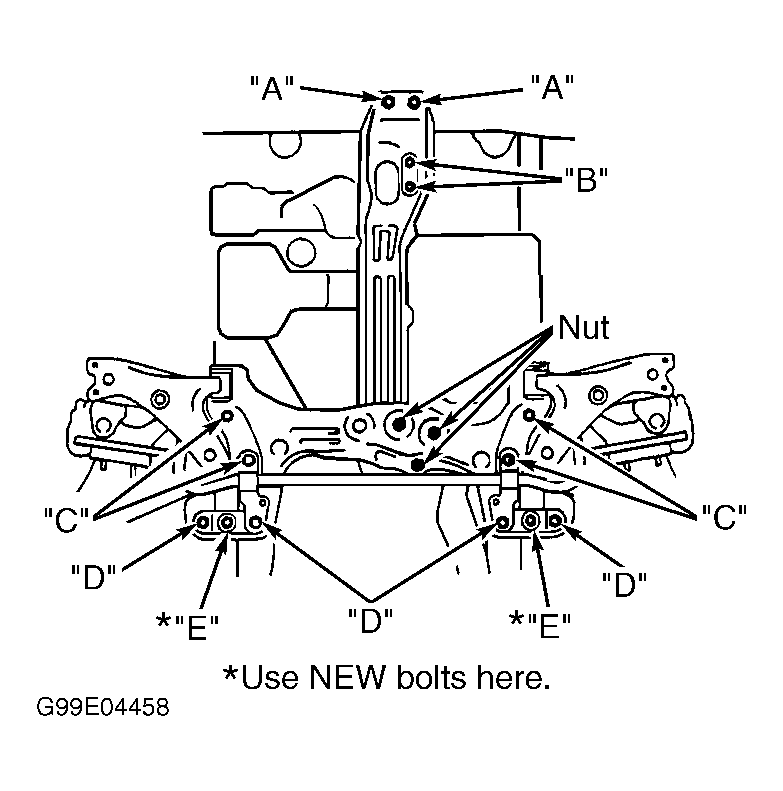

| Crossmember-To-Body |
| "A" Bolts |
44 (60) |
| "B" Bolts |
47 (64) |
| "C" Bolts |
167 (225) |
| "D" Bolts |
109 (147) |
| "E" Bolts (Always Use NEW) |
129 (175) |
| Nuts |
42 (57) |
| Drain Plugs |
| Differential (3-Speed) |
29 (39) |
| 3-Speed Transaxle |
36 (49) |
| 4-Speed Transaxle |
13 (17) |
| Ground Cable-To-Transaxle Bolt |
13 (17) |
| Heat Insulator Bolts & Nut |
13 (17) |
| Shift Control Lever Nut |
9 (12) |
| Starter Bolts |
29 (39) |
| Tie Rod End Nuts |
36 (49) |
| Torque Converter-To-Flexplate Bolts |
18 (25) |
| Transaxle-To-Engine Mounting Bolts |
| "A" Bolts |
34 (46) |
| "B" Bolts |
17 (23) |
| Upper Bolts |
47 (64) |
| Upper Left-Side Engine/Transaxle Mount Through-Bolt |
64 (87) |
| Wheel Lug Nuts |
76 (103) |
| Wiring Harness Clamp Bracket Bolt |
9 (12) |
