Component Locations
CRUISE CONTROL COMPONENTS
| Component | Location |

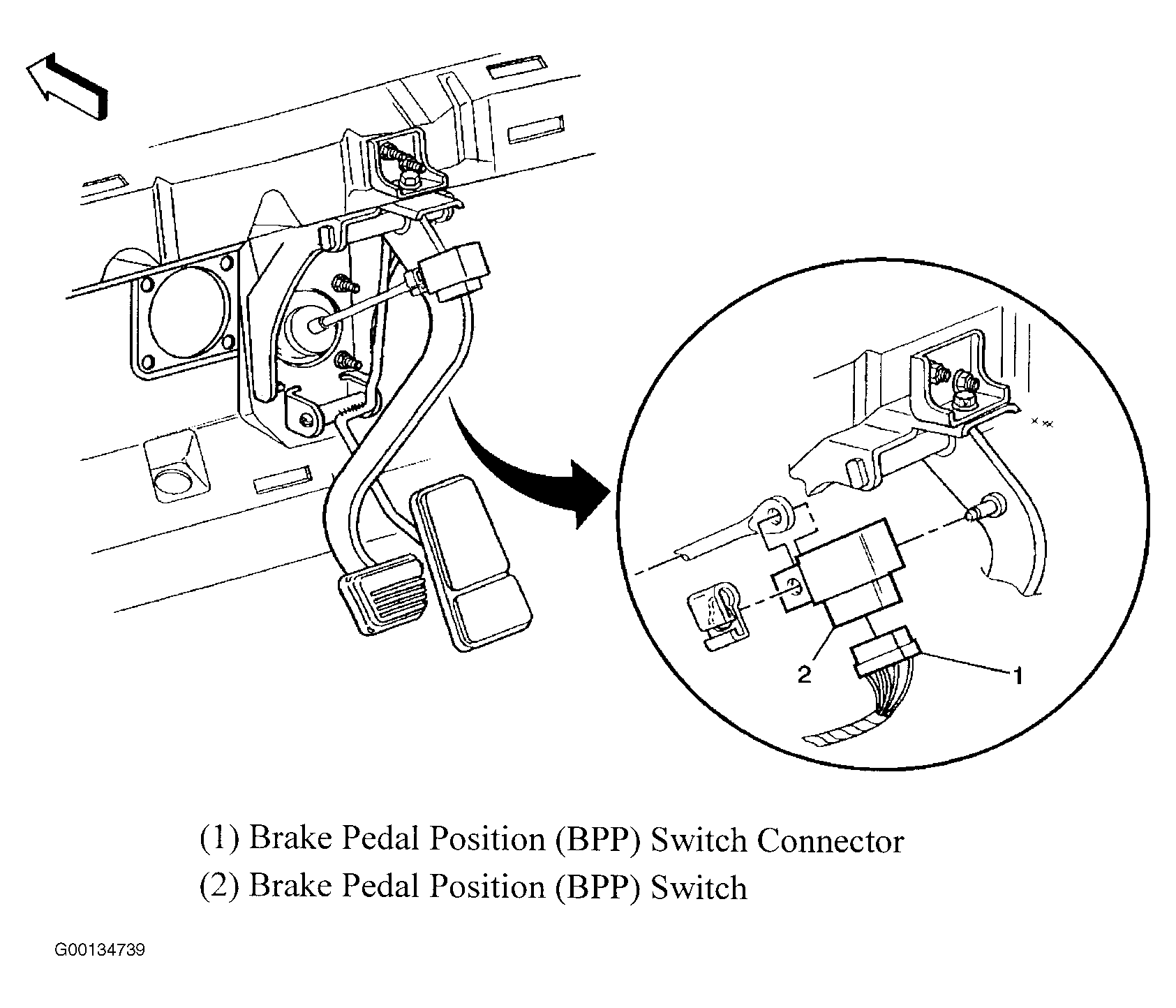

| Brake Pedal Position (BPP) Switch | Above the Brake Pedal. See Fig 1 . |

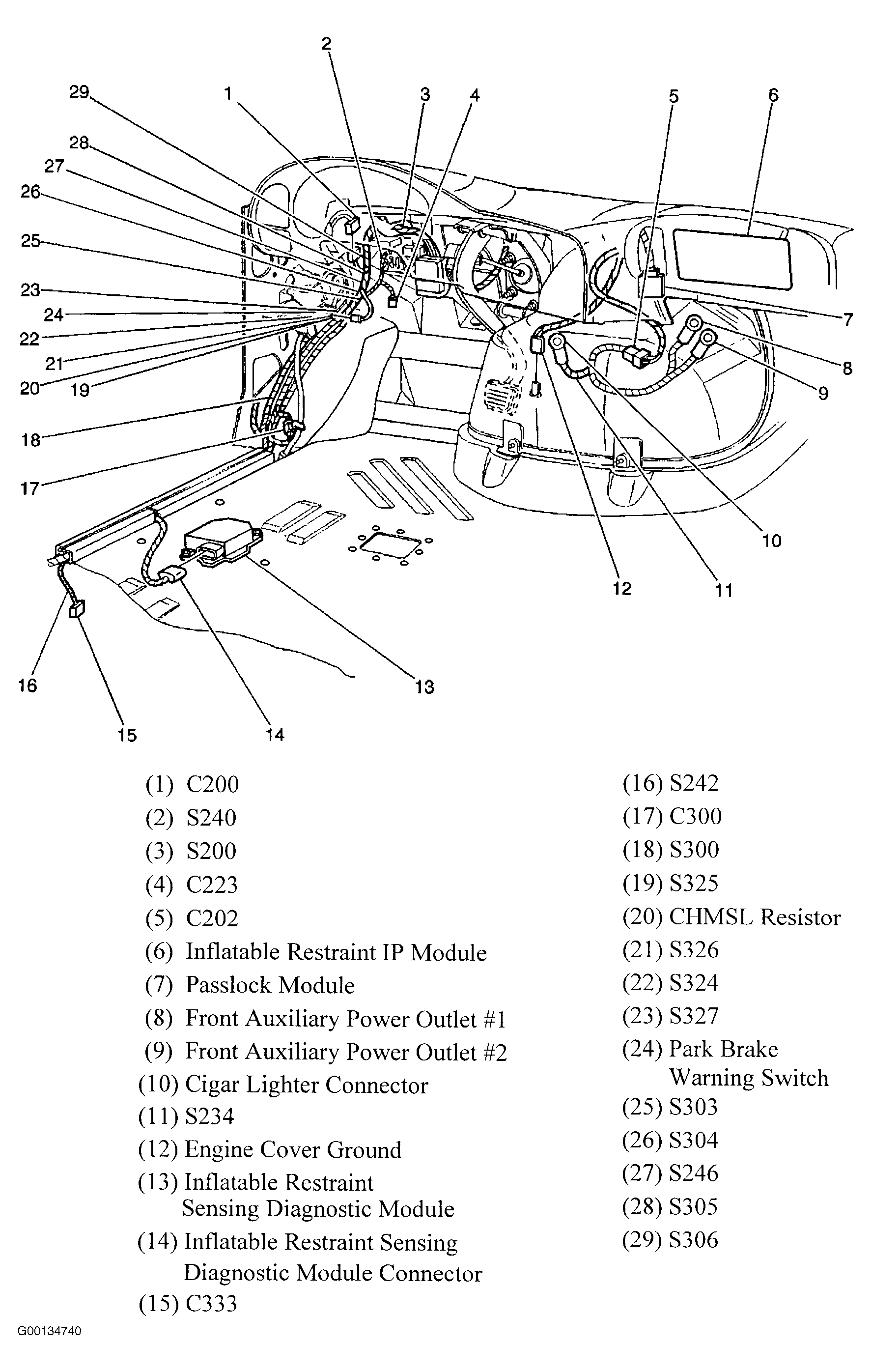

| CHMSL Resistor | On the left side kick panel, toward the rear of the vehicle. See Fig 2 . |

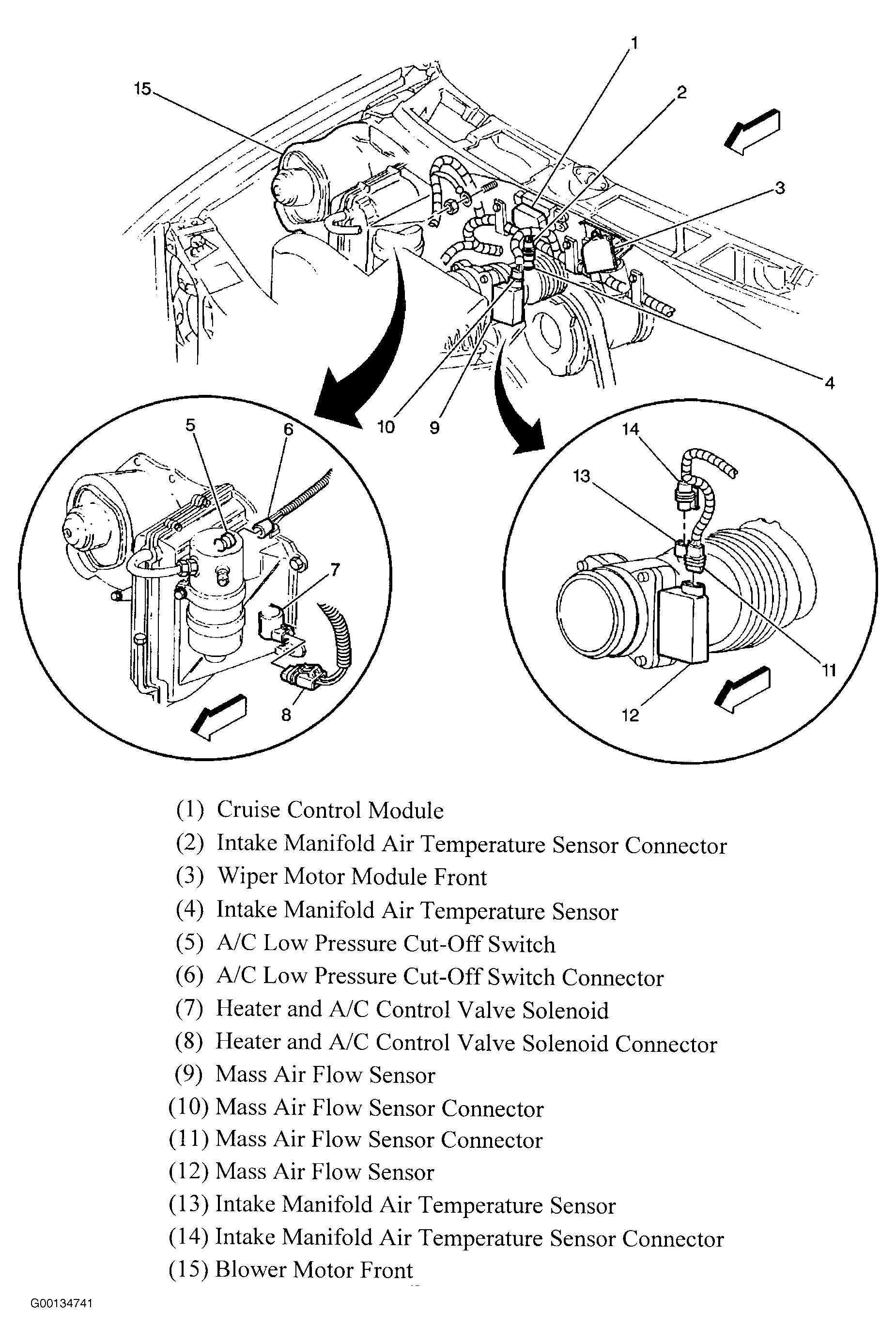

| Cruise Control Module | On the center front of the dash. See Fig 3 . |

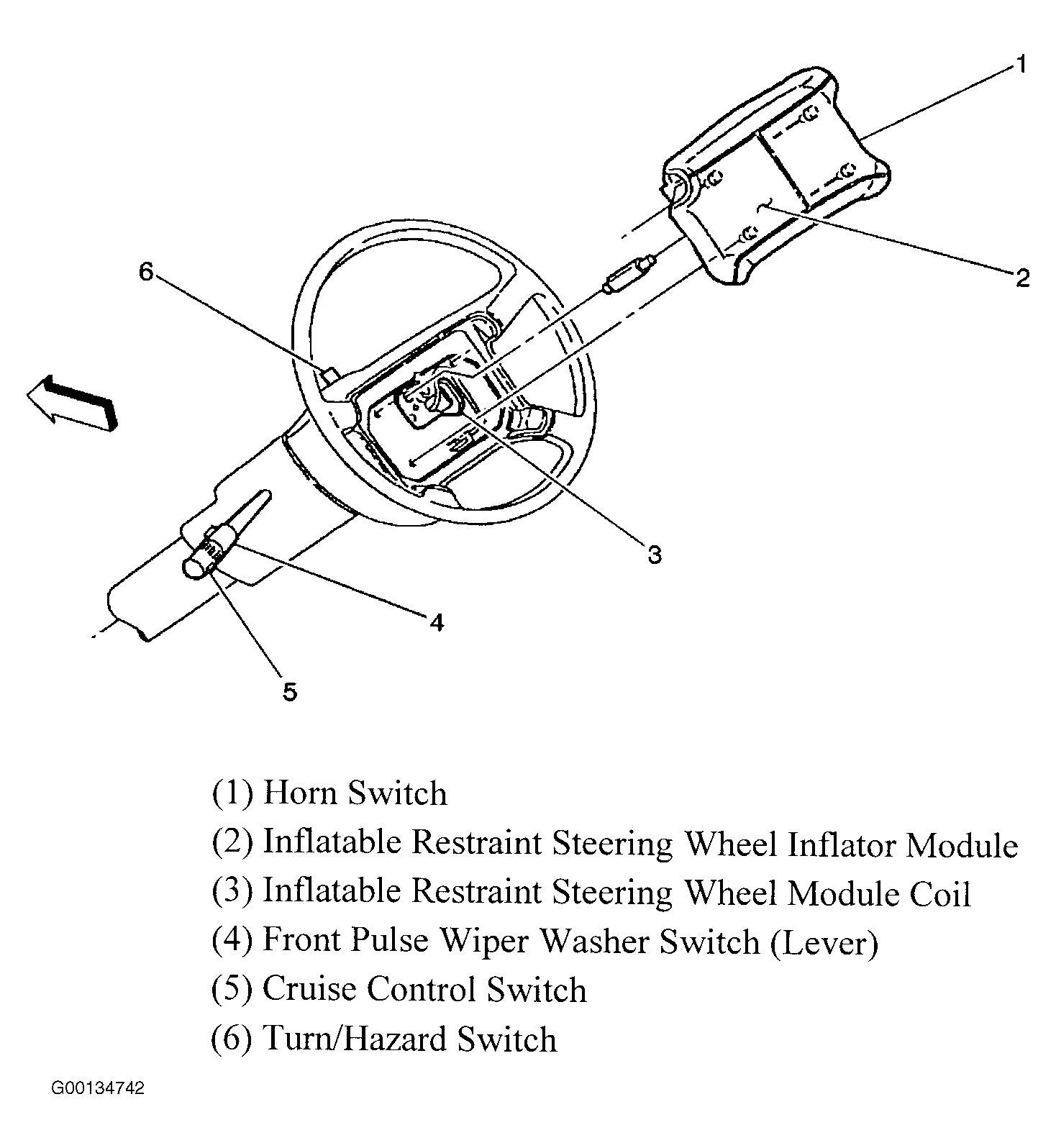

| Cruise Control Switch | On the turn signal stalk lever. See Fig 4 . |

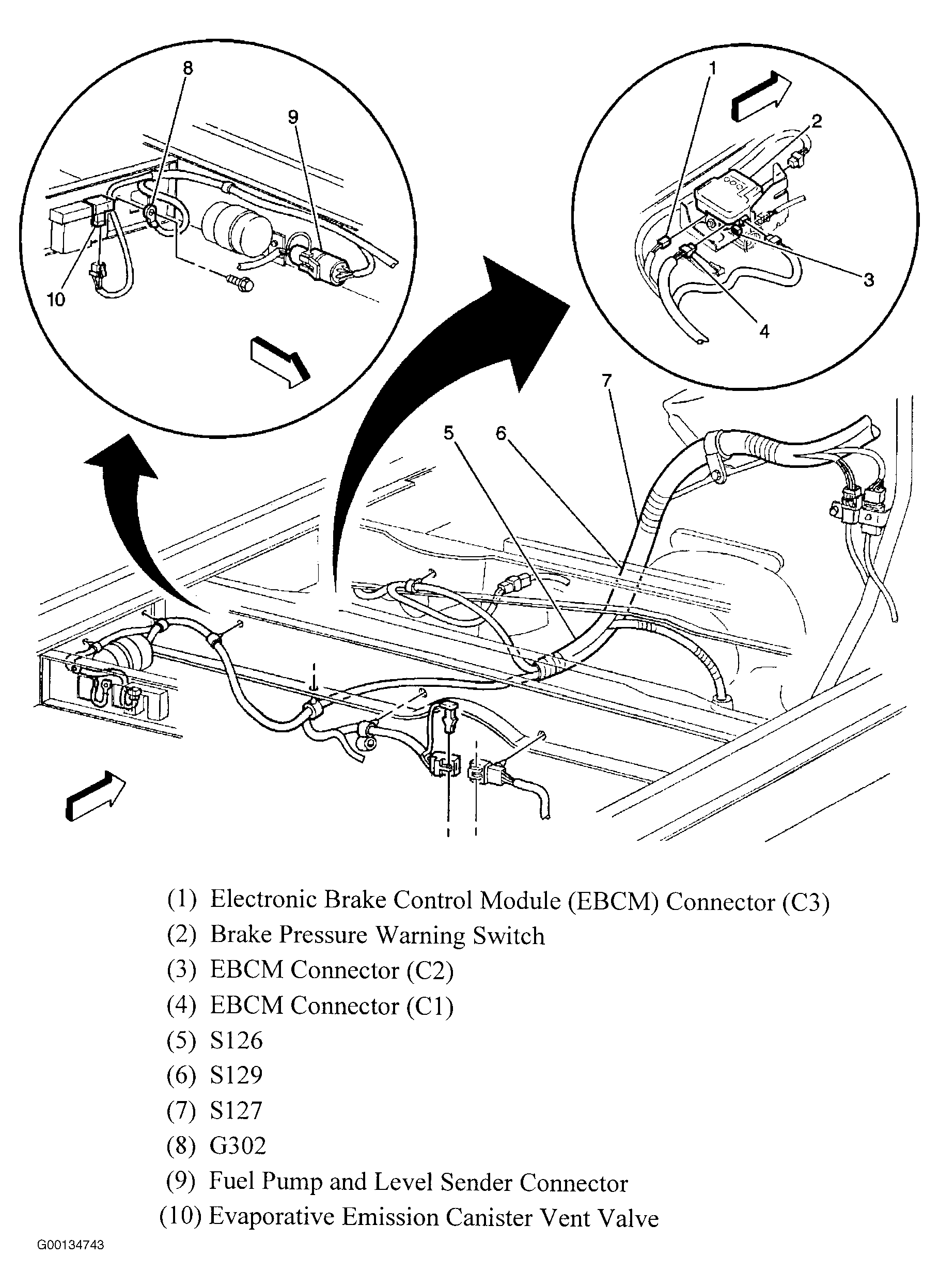

| Electronic Brake Control Module | On the left side of the front to the left of the transmission. See Fig 5 . |

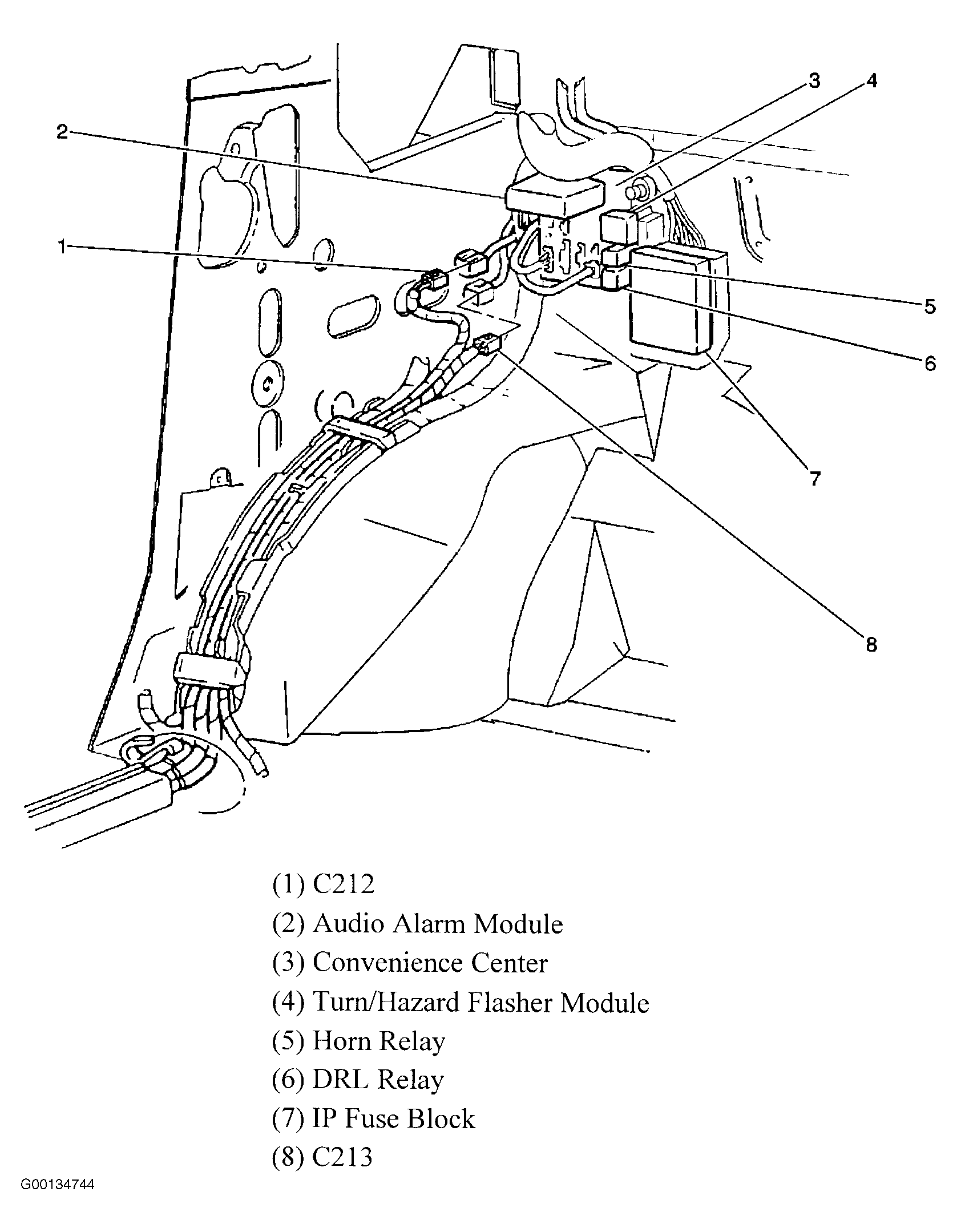

| Instrument Panel Fuse Block | On the lower left side of the dash next to the left side kick panel. See Fig 6 . |

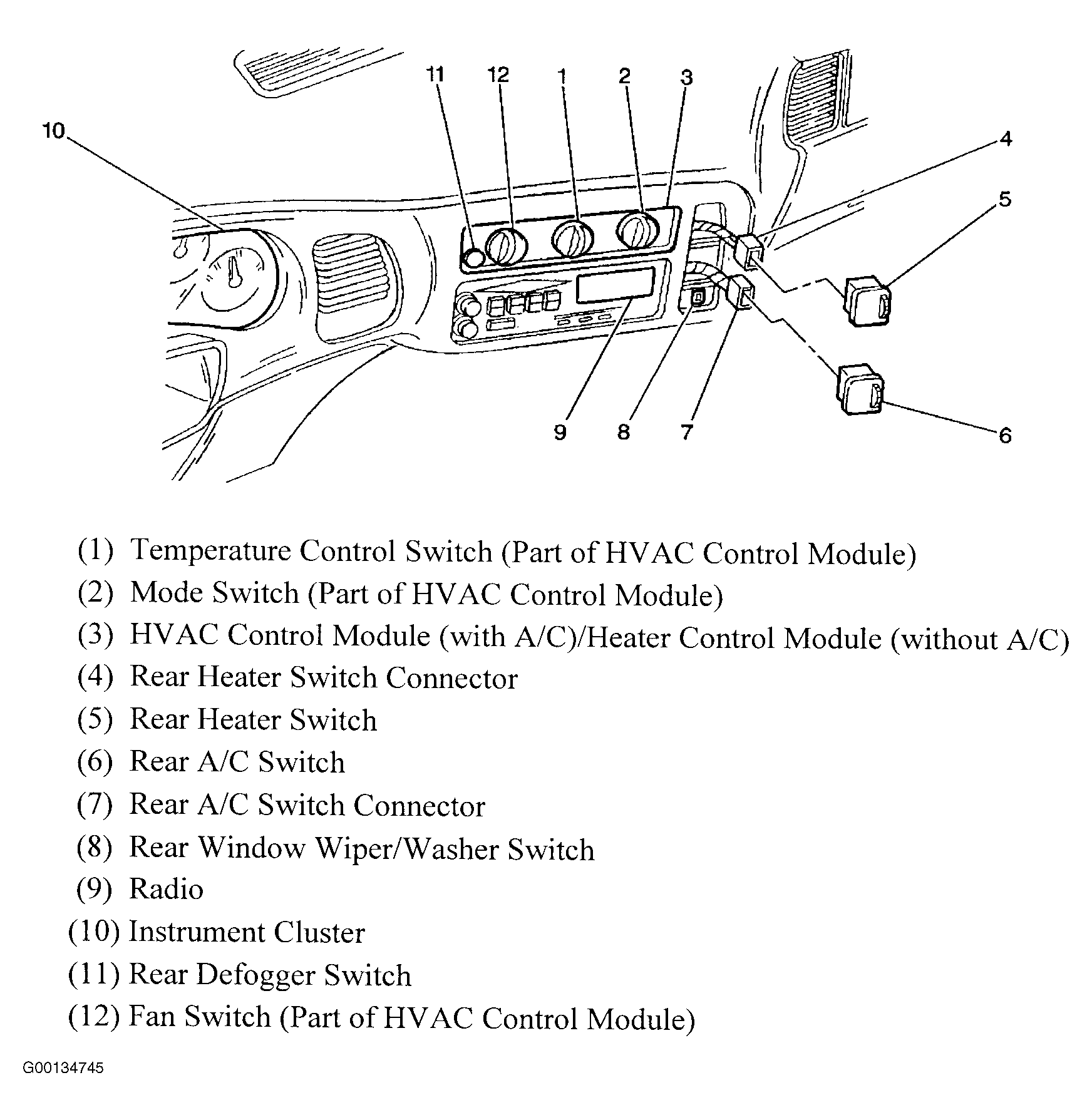

| Radio | In the center of the dash. See Fig 7 . |

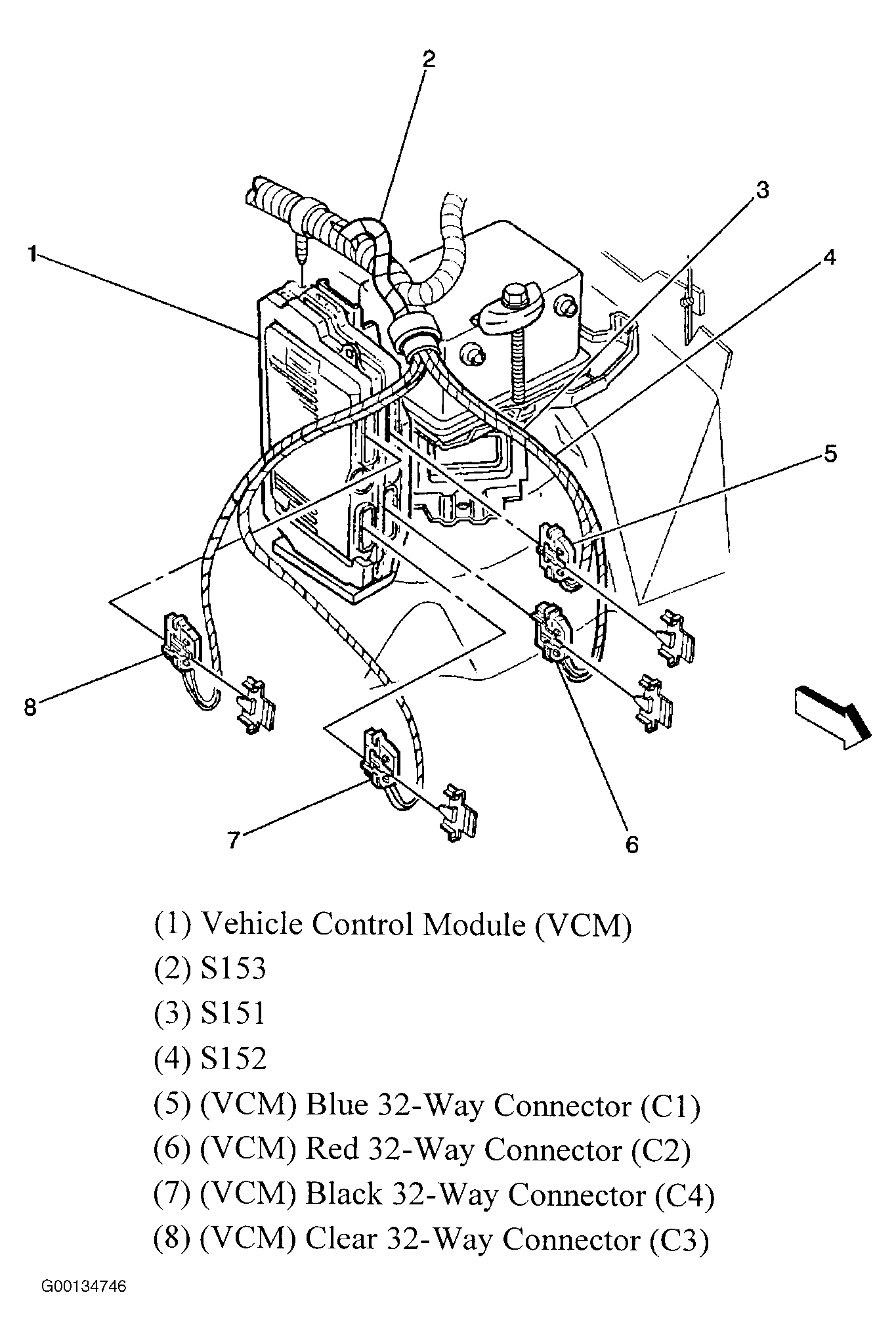

| Vehicle Control Module | On the left side of the engine compartment on the lower side of the battery. See Fig 8 . |

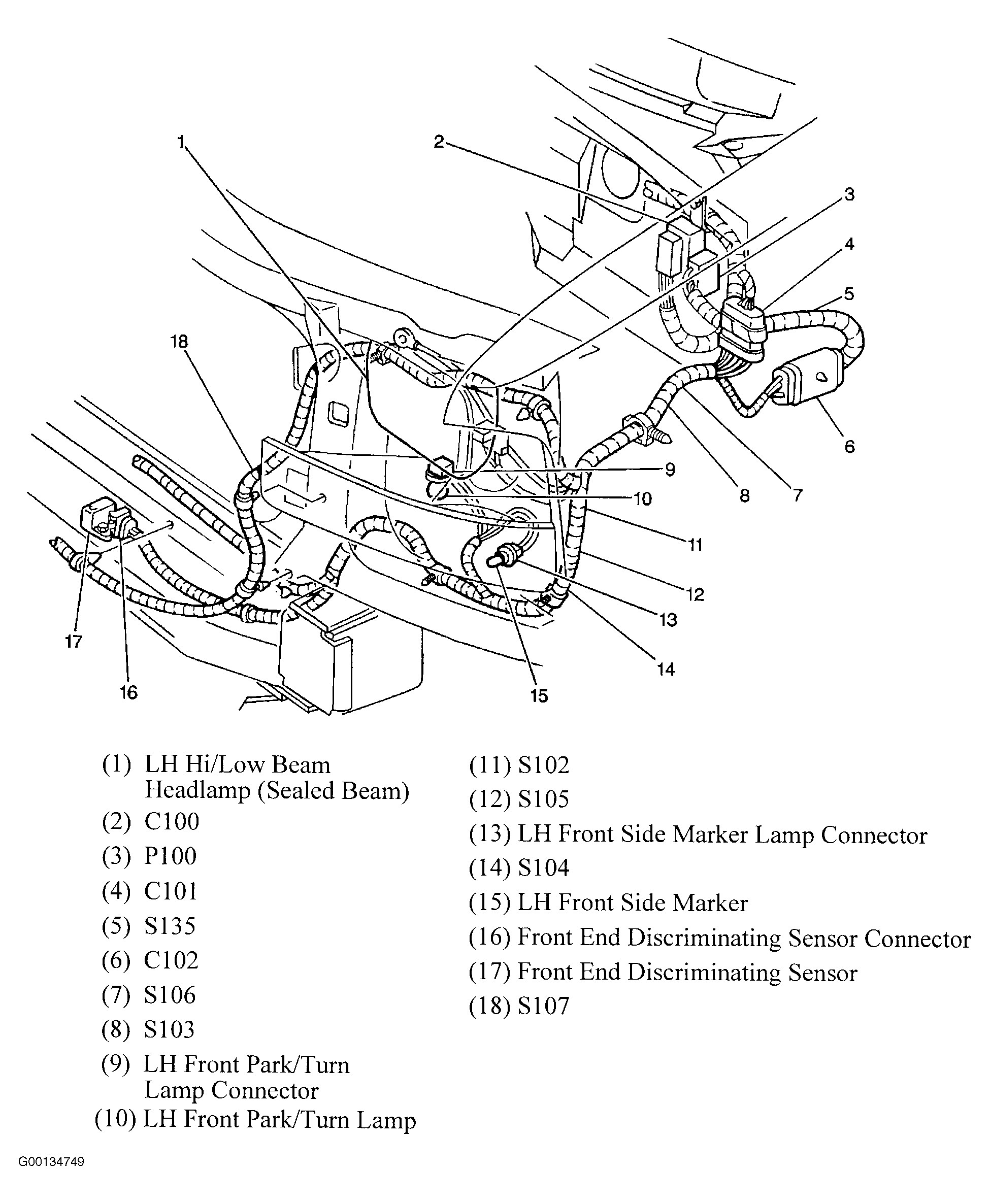

| C100 | In the left side front of the dash. See Fig 9 . |
| C201 | In the lower half of the steering column |
| P100 | In the left side of the dash to the left of the bulkhead. See Fig 9 . |

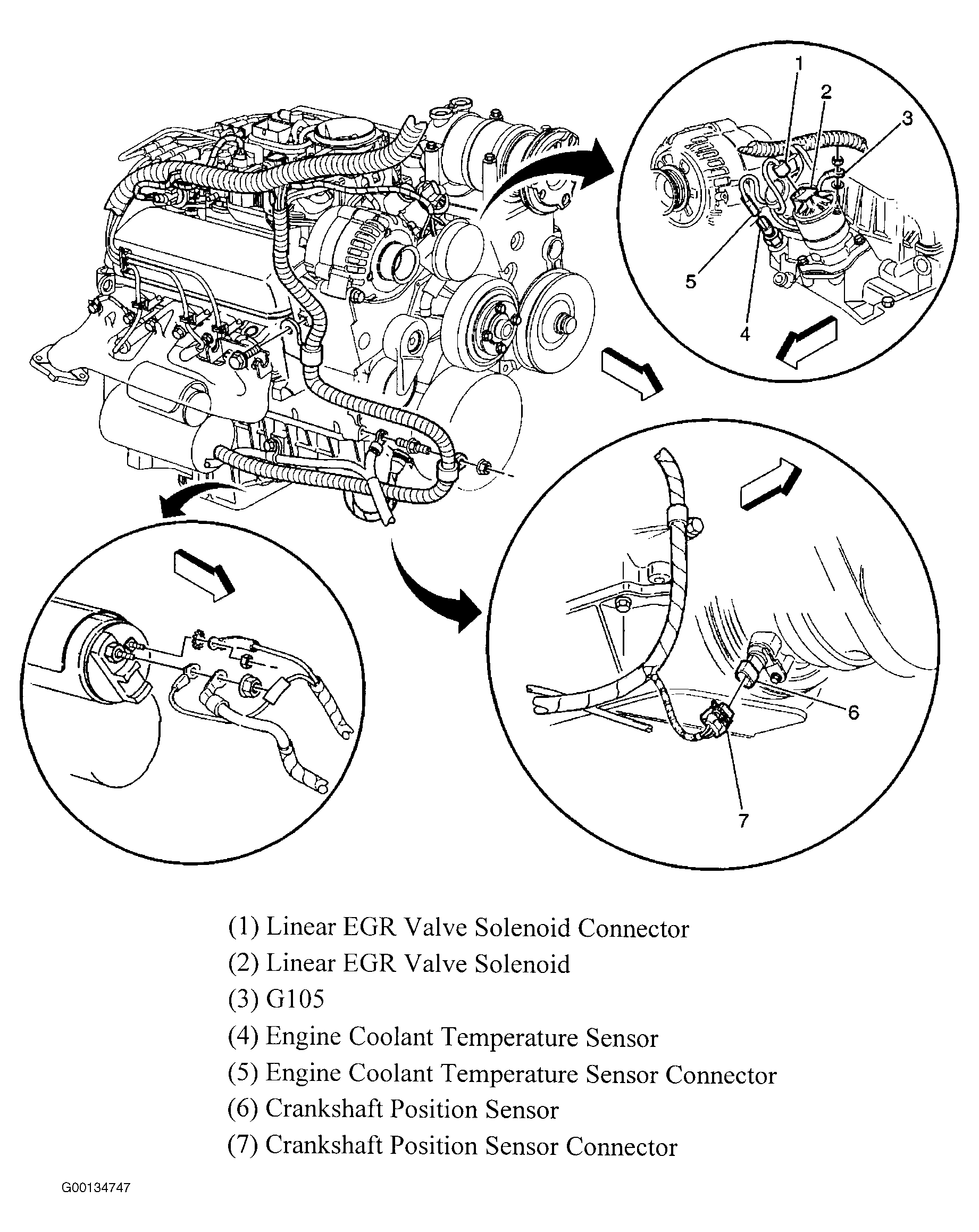

| G105 | In the thermostat housing. See Fig 10 . |

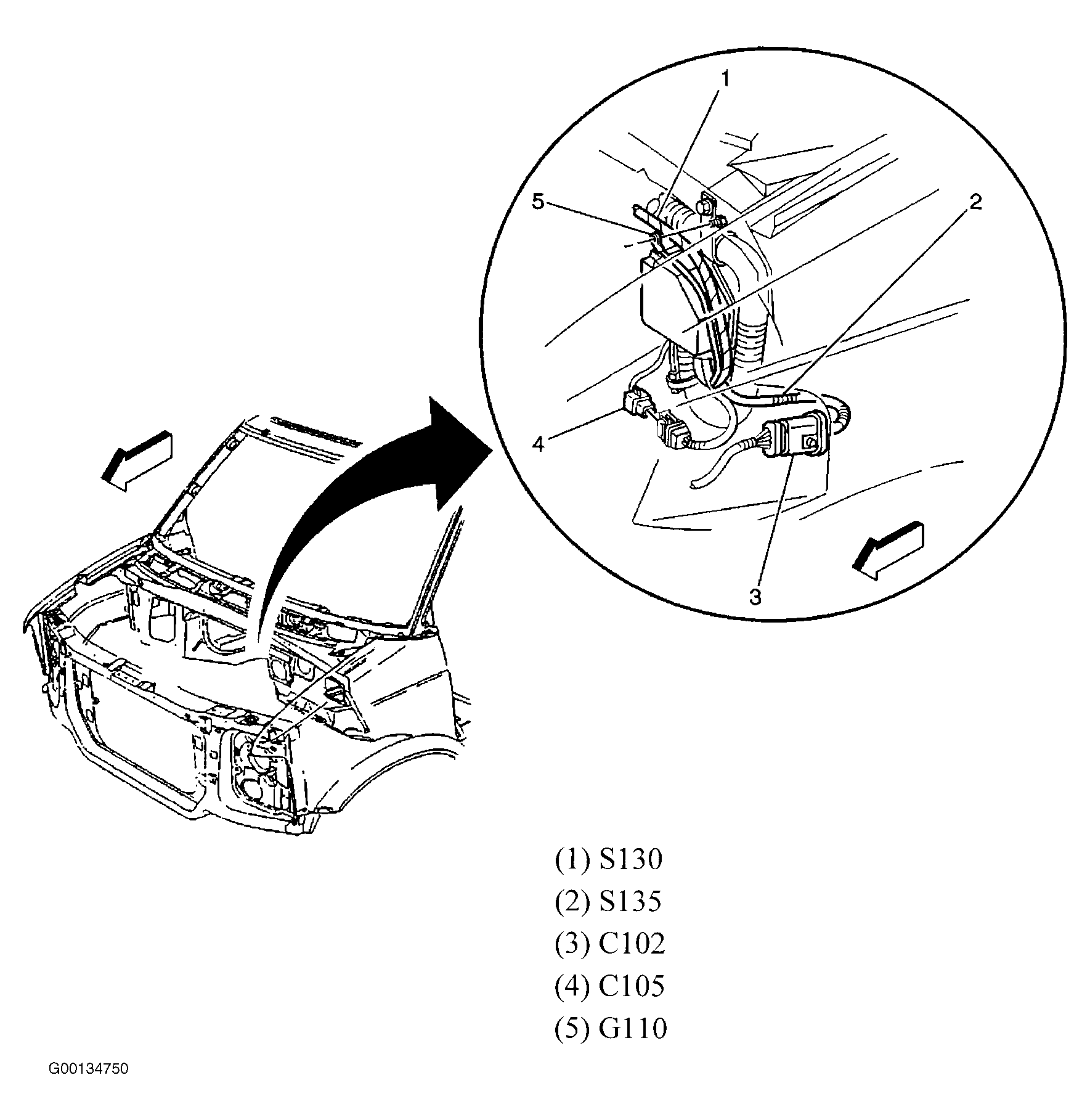

| G110 | In the left side of the front of the dash above the battery. See Fig 11 . |

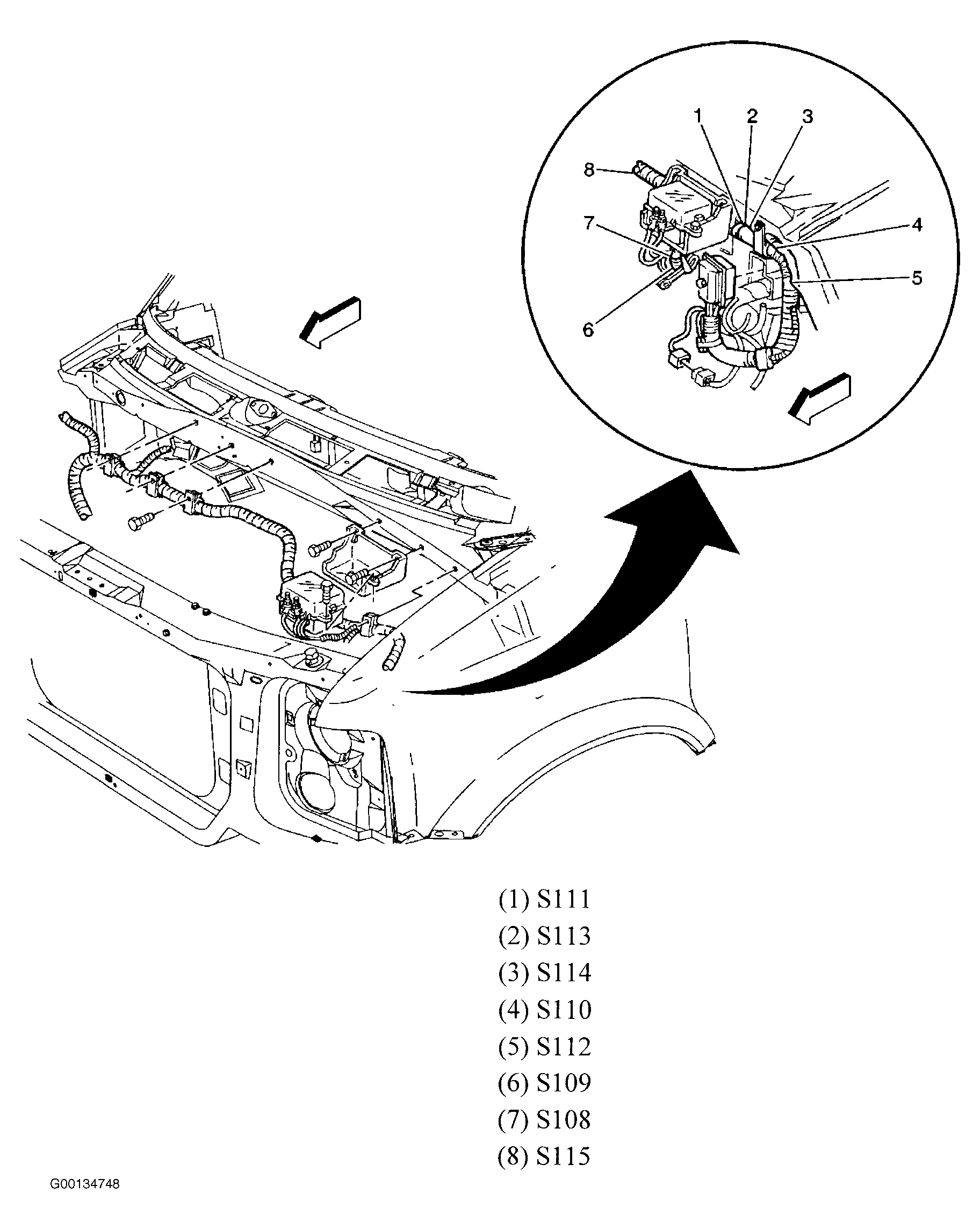

| S112 | In the engine harness. See Fig 12 . |
| S117 | In the engine harness |
| S130 | In the front of the dash. See Fig 11 . |
| S200 | In the instrument panel (IP) harness. See Fig 2 . |
| S204 | In the IP harness |

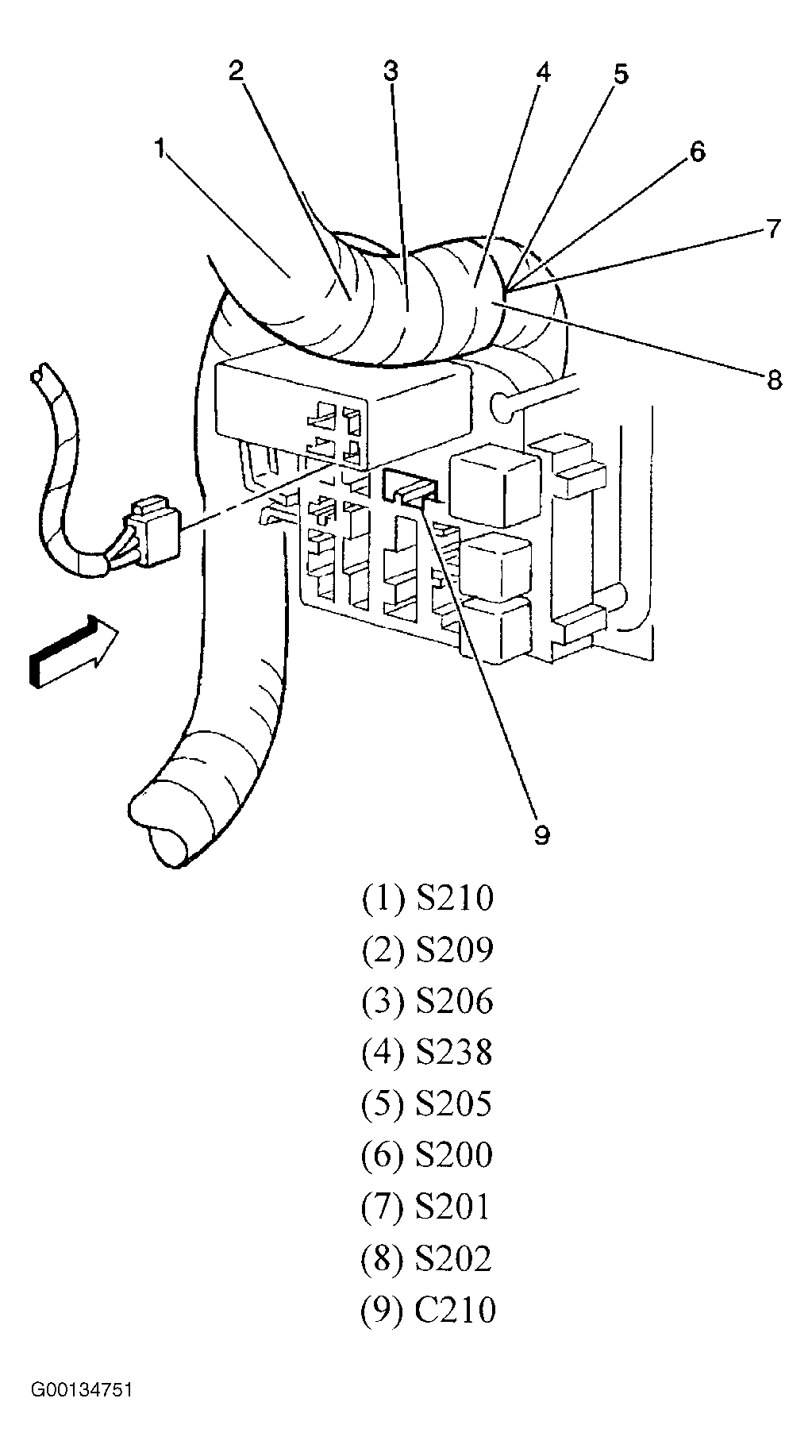

| S206 | In the IP harness. See Fig 13 . |

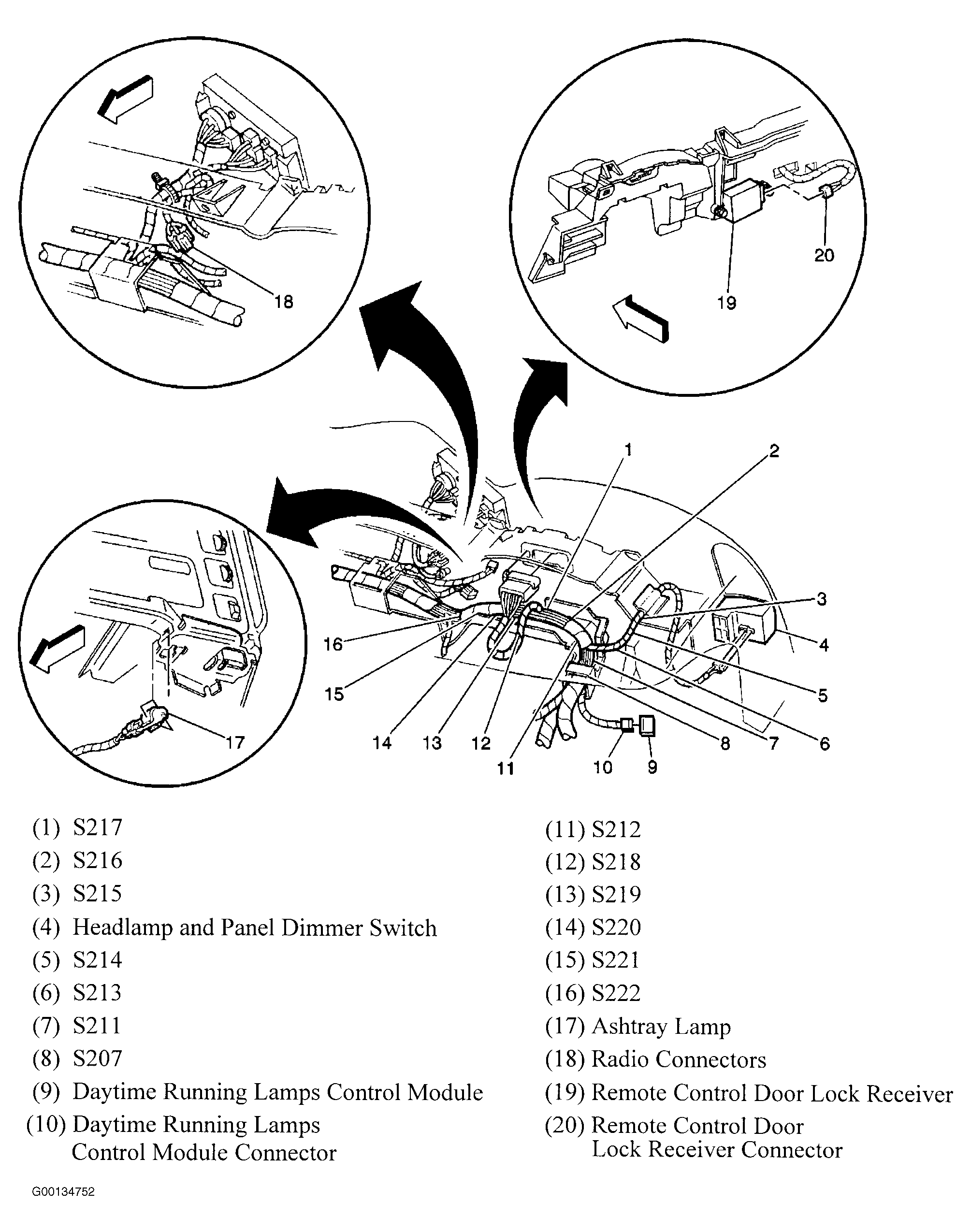

| S221 | In the IP harness. See Fig 14 . |
| S325 | In the left side kick panel. See Fig 2 . |
| S326 | In the left side kick panel. See Fig 2 . |
