Cruise Control System
Cruise Control System

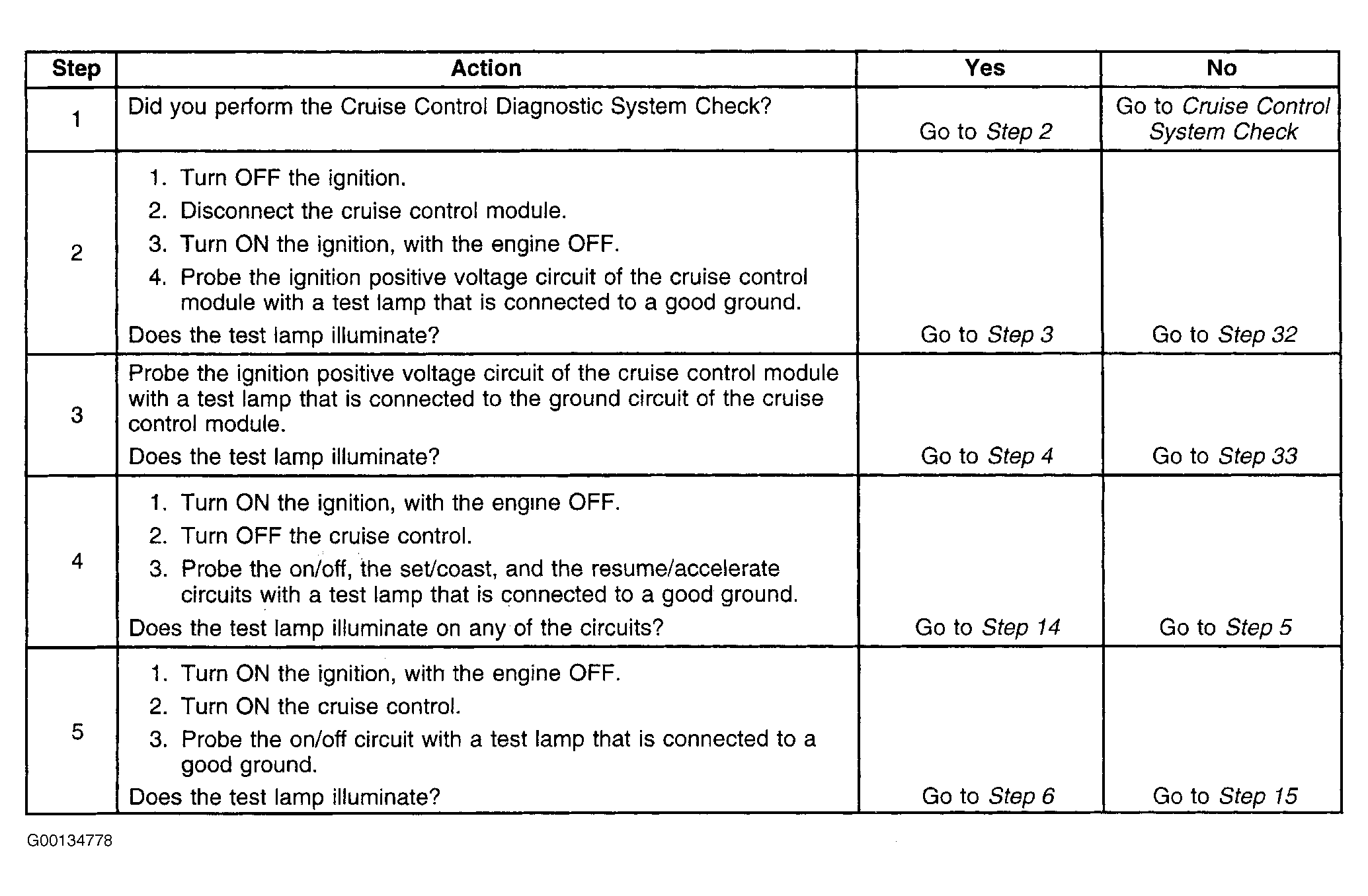

Fig 1: Cruise Control Inoperative (1 of 3)
Courtesy of GENERAL MOTORS CORP.

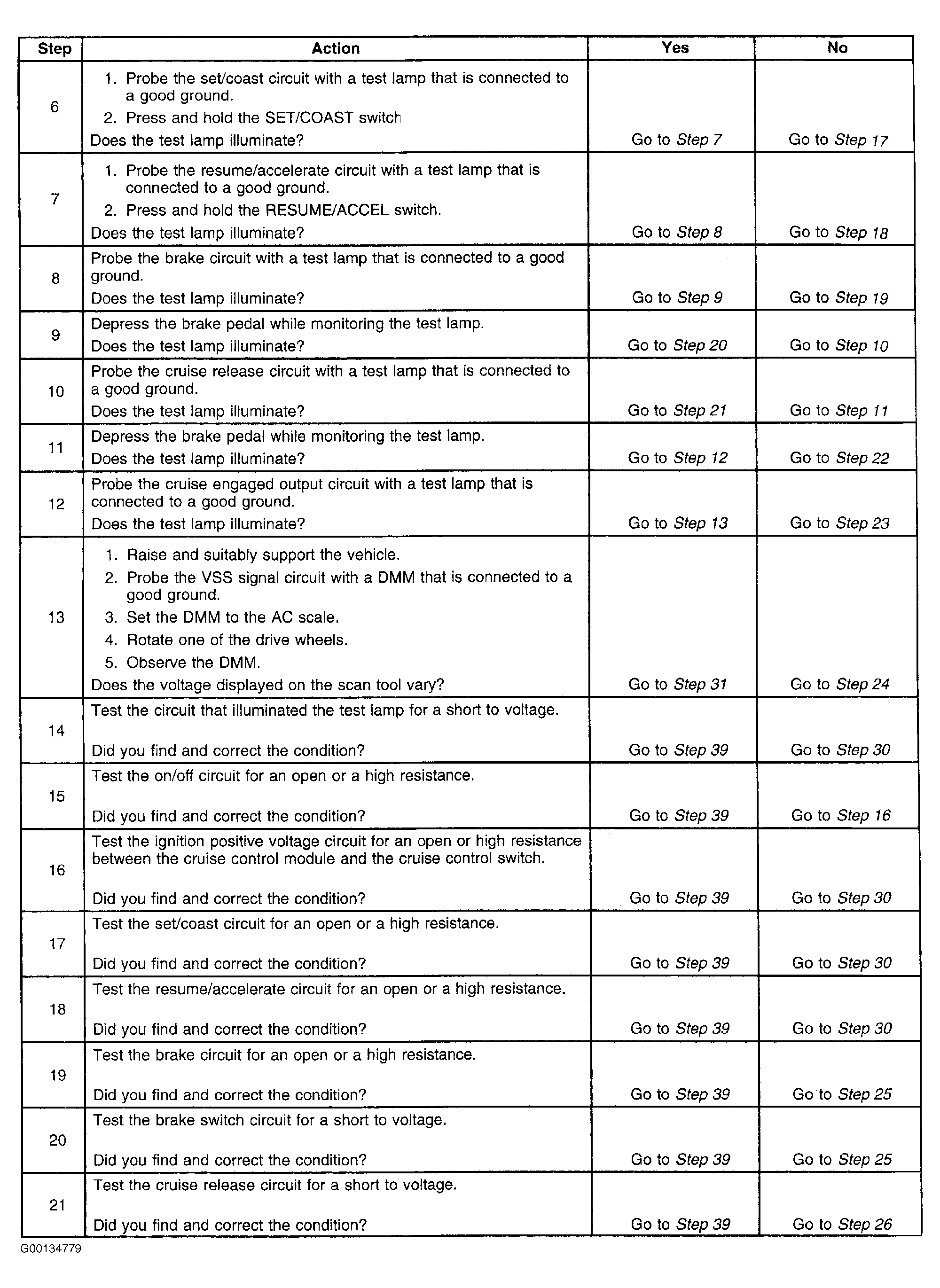

Fig 2: Cruise Control Inoperative (2 of 3)
Courtesy of GENERAL MOTORS CORP.

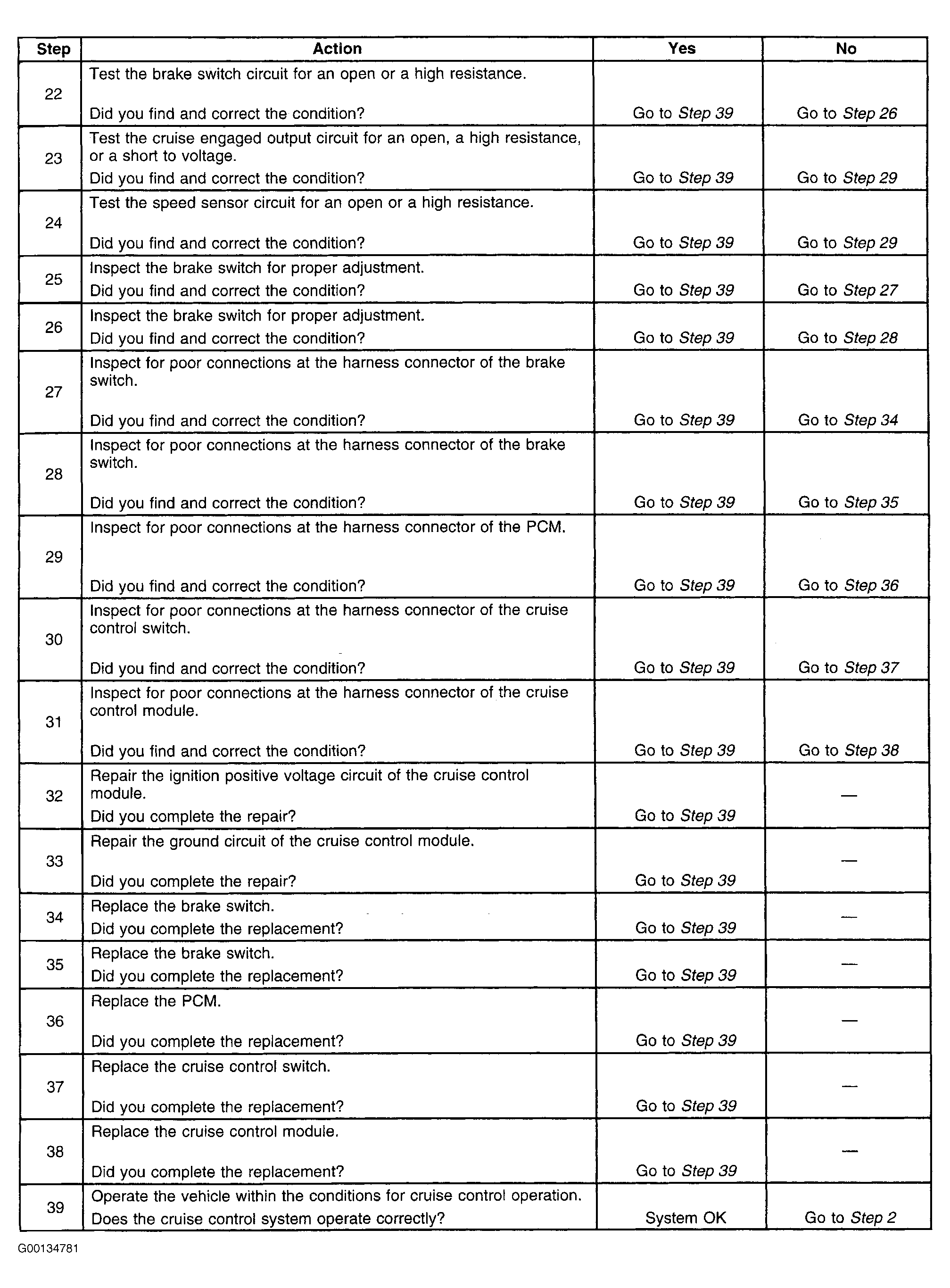

Fig 3: Cruise Control Inoperative (3 of 3)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
