Wiring Diagrams

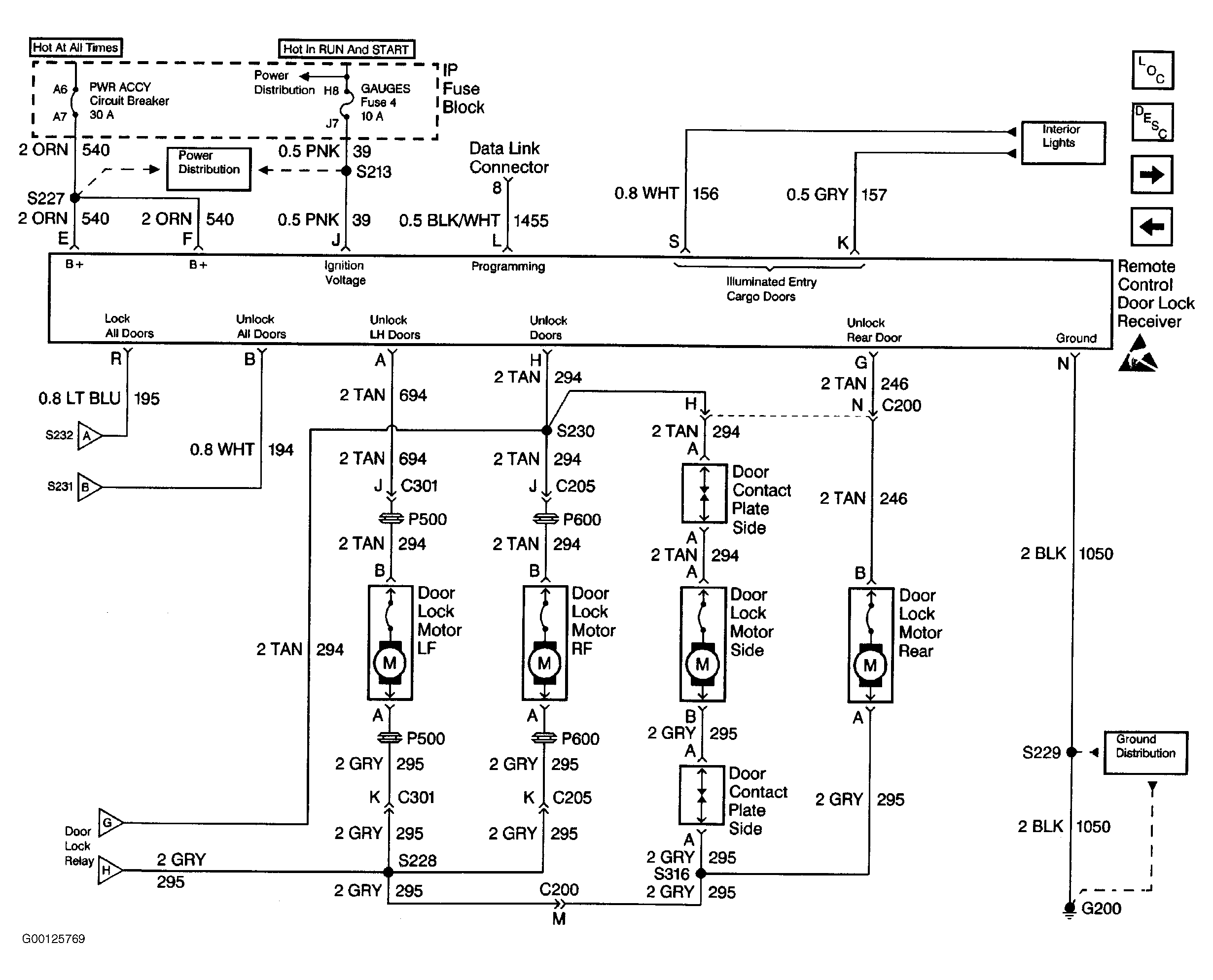

Fig 1: Wiring Diagrams 1999 Astro & Safari Remote Keyless Entry (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Wiring Diagrams 1999 Astro & Safari Remote Keyless Entry (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Wiring Diagrams 1999 Astro & Safari Remote Keyless Entry (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Wiring Diagrams 1999 Astro & Safari Remote Keyless Entry (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
