Front End Discriminating Sensor: Removal

WARNING: This page is about a different car, the 1997 GMC Safari and 1997 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, read air bag service precautions section. See SERVICE PRECAUTIONS . Disable air bag system. See DISABLING SYSTEM .
Remove CPA clip and disconnect electrical connector. Remove sensor mounting fasteners. Remove sensor. See Fig 1 .

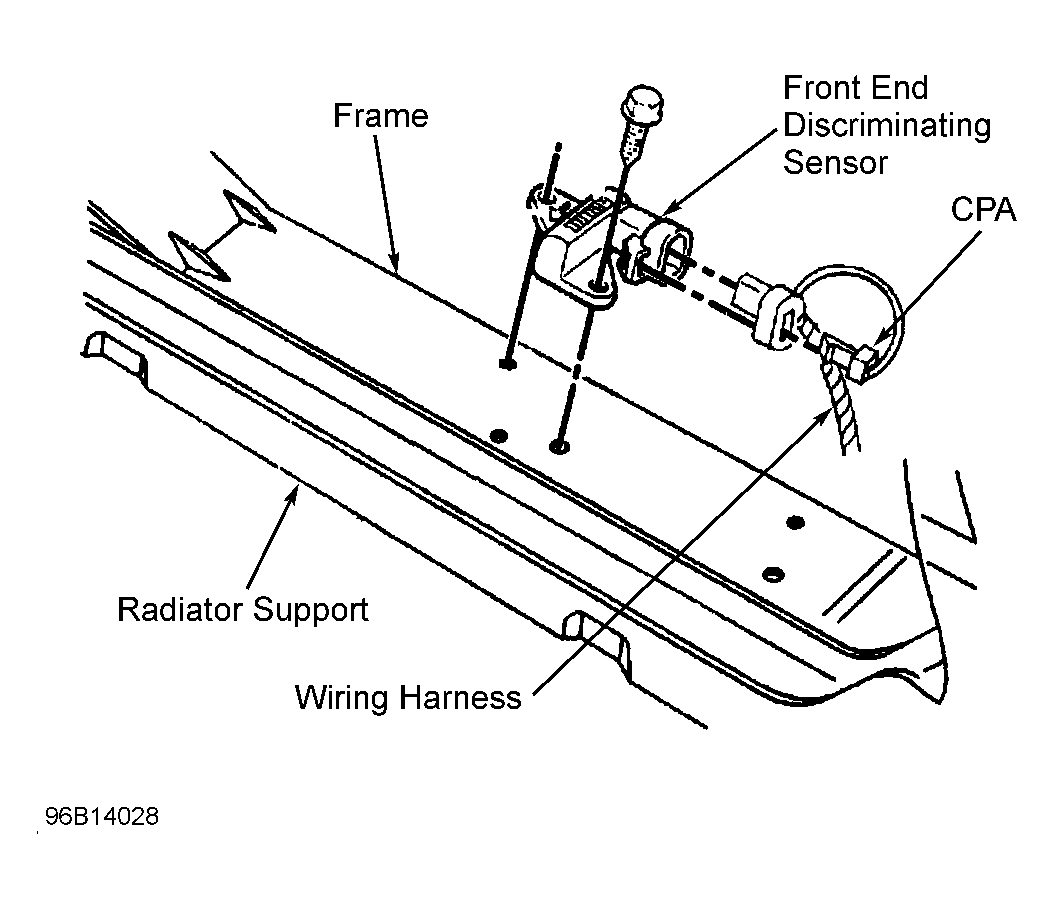

Fig 1: Removing Front End Discriminating Sensor

Courtesy of GENERAL MOTORS CORP.
