Front-End Discriminating Sensor: Removal
WARNING: This page is about a different car, the 1998 GMC Safari and 1998 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding, see SERVICE PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .

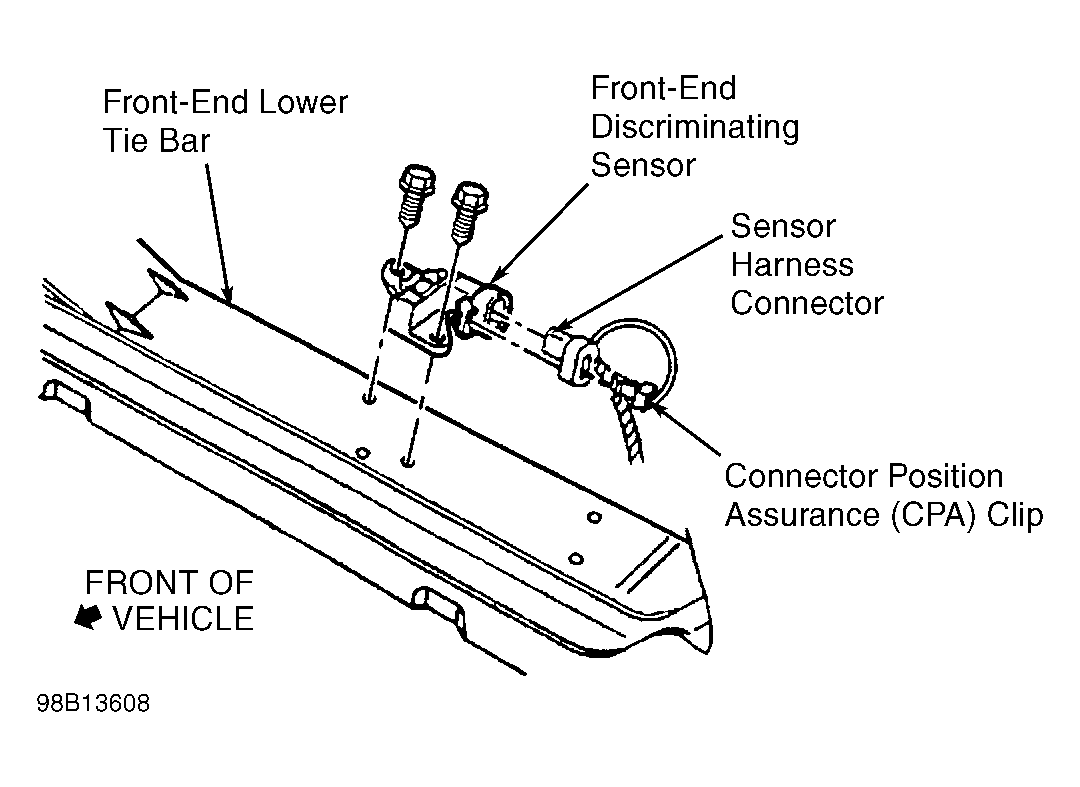

- Front-end discriminating sensor is located on front-end lower tie bar. Remove CPA clip and disconnect sensor harness connector. Remove sensor mounting fasteners. Remove sensor. See Fig 1 .
