Shift Lock Control Schematics

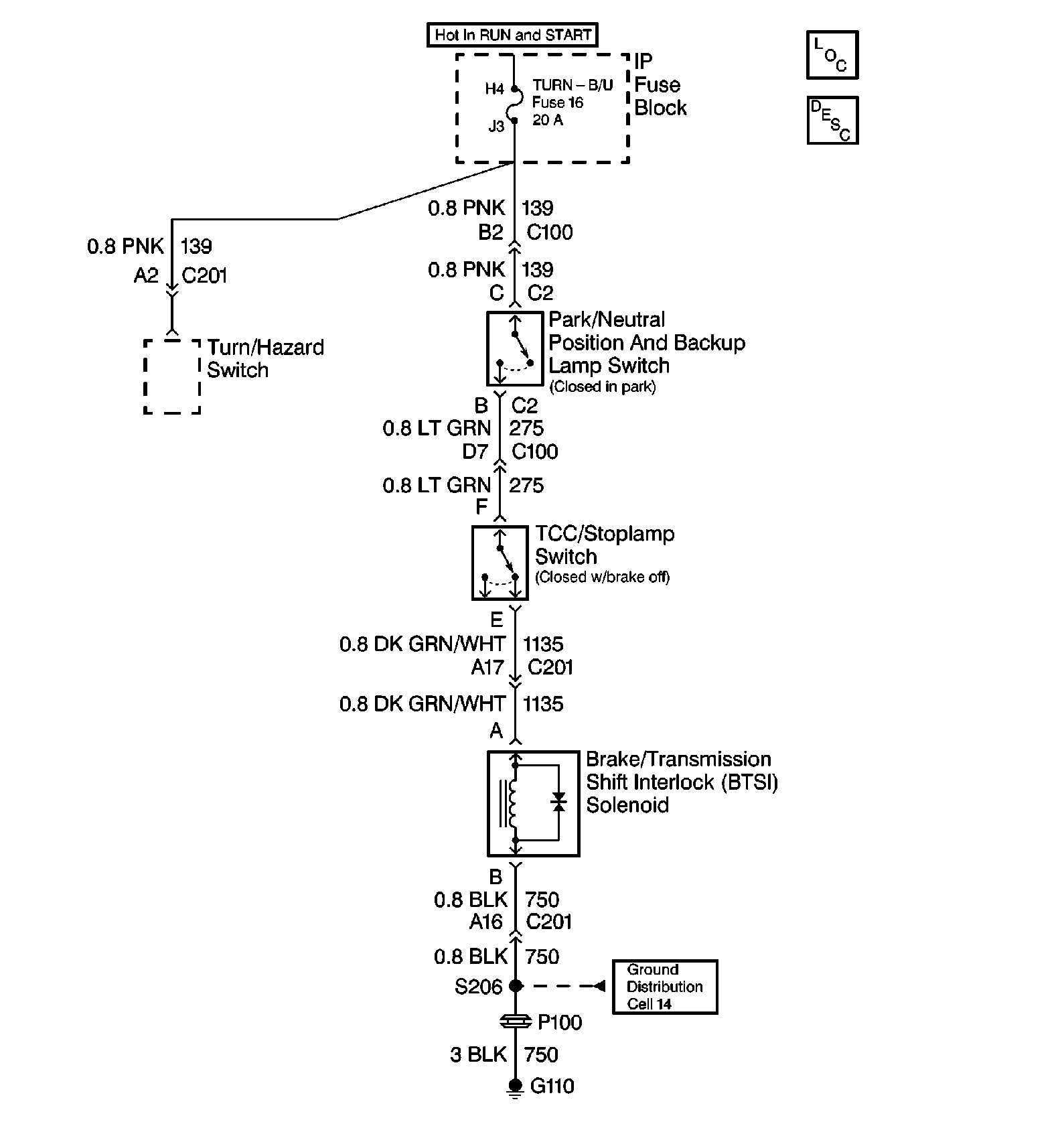

Fig 1: Auto Trans Shift Lock Control Schematic
GM284289Courtesy of GENERAL MOTORS CORP.
