Connector Identification

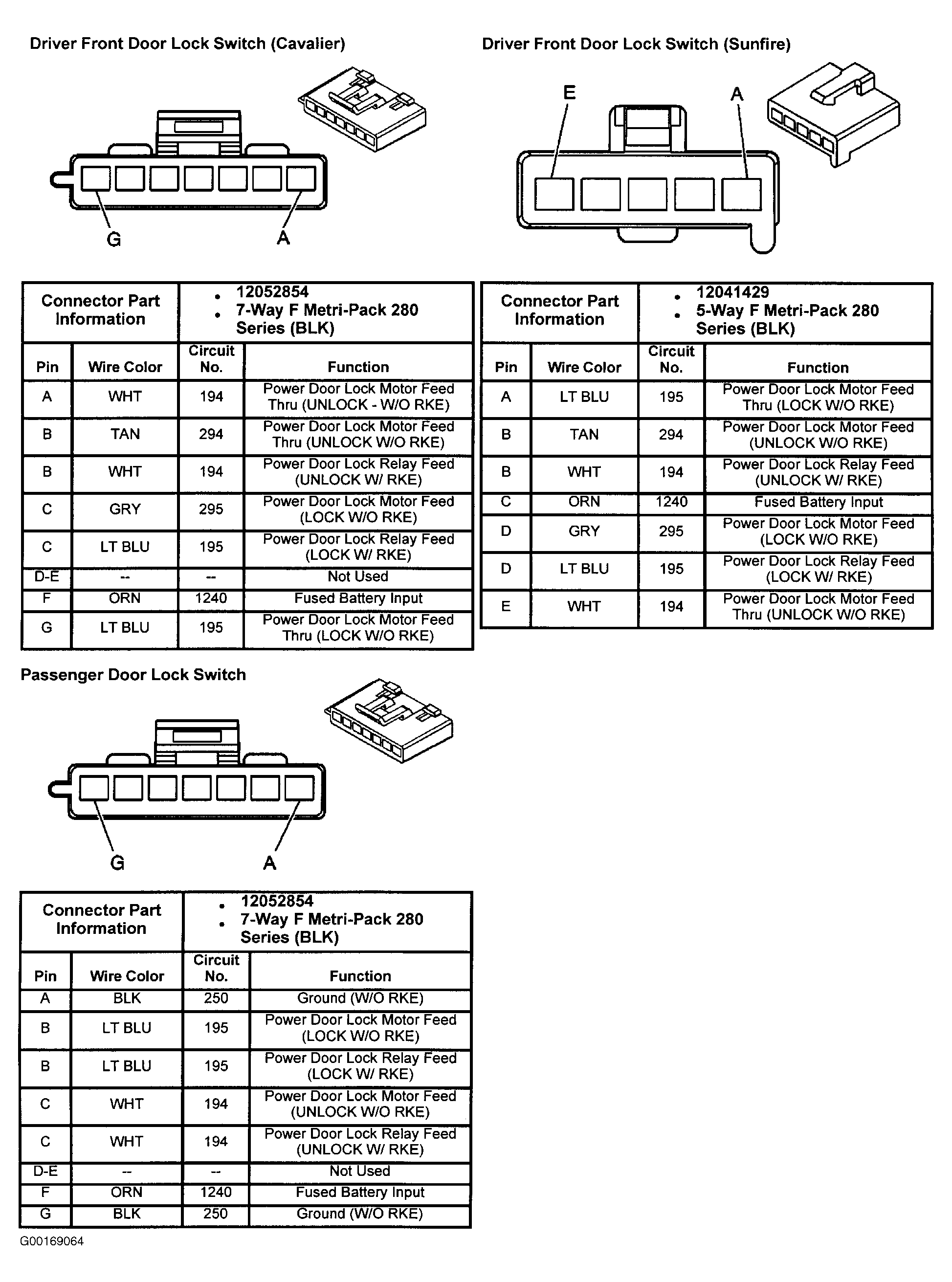

Fig 1: Identifying Power Door Lock Switch Terminals

Courtesy of GENERAL MOTORS CORP.

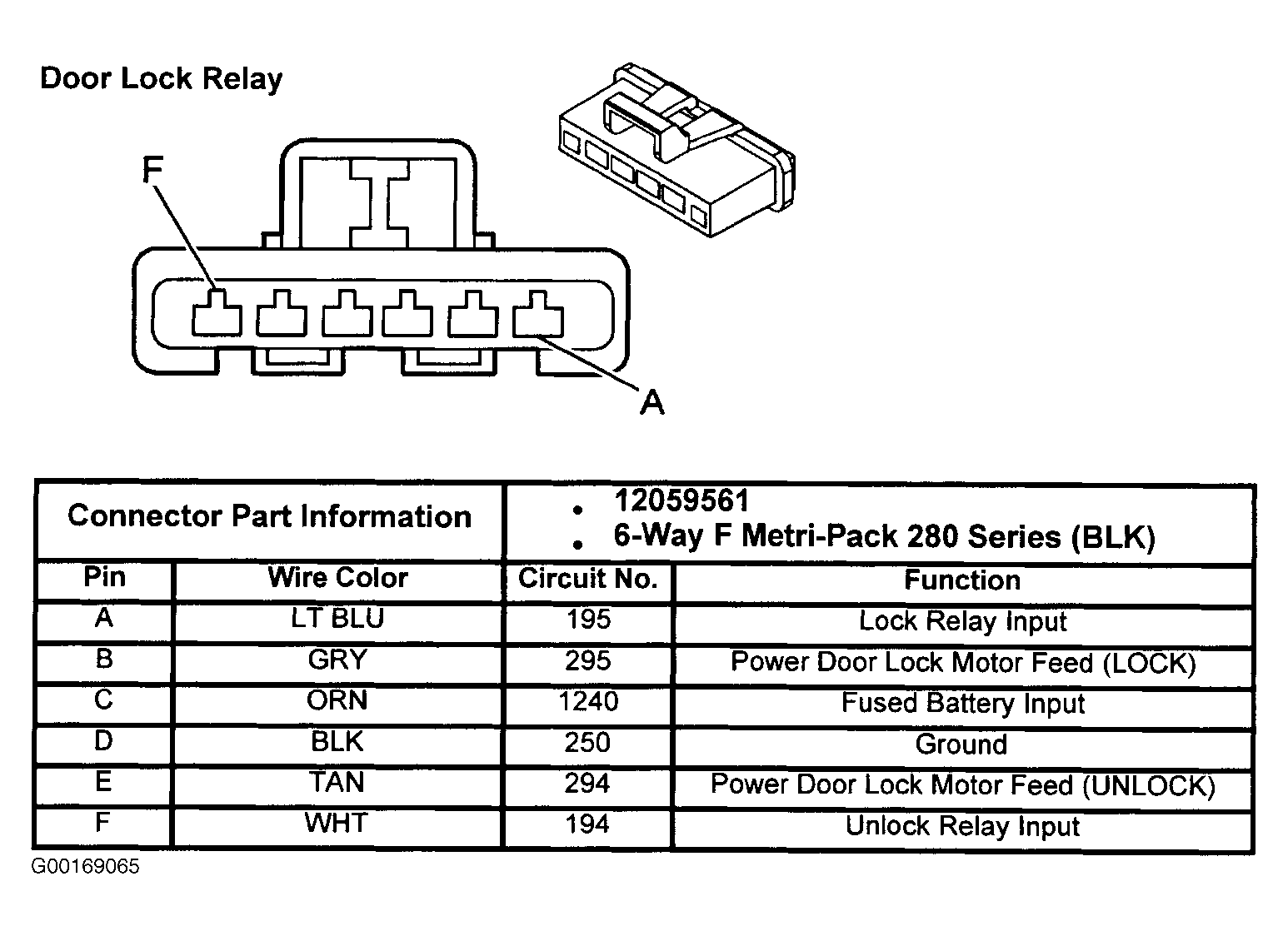

Fig 2: Identifying Door Lock Relay Terminals

Courtesy of GENERAL MOTORS CORP.

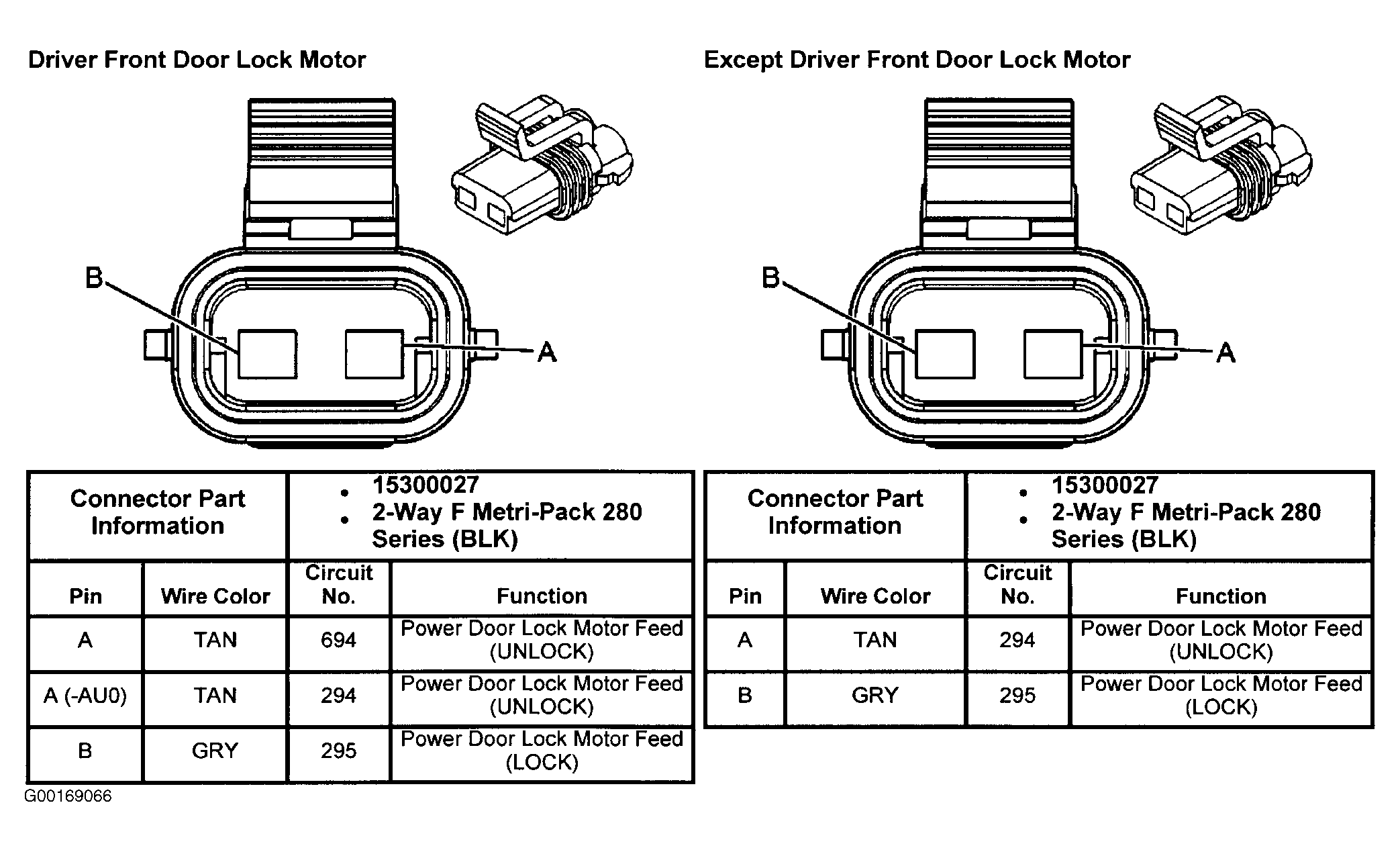

Fig 3: Identifying Door Lock Motor Terminals

Courtesy of GENERAL MOTORS CORP.
