Connector Identification

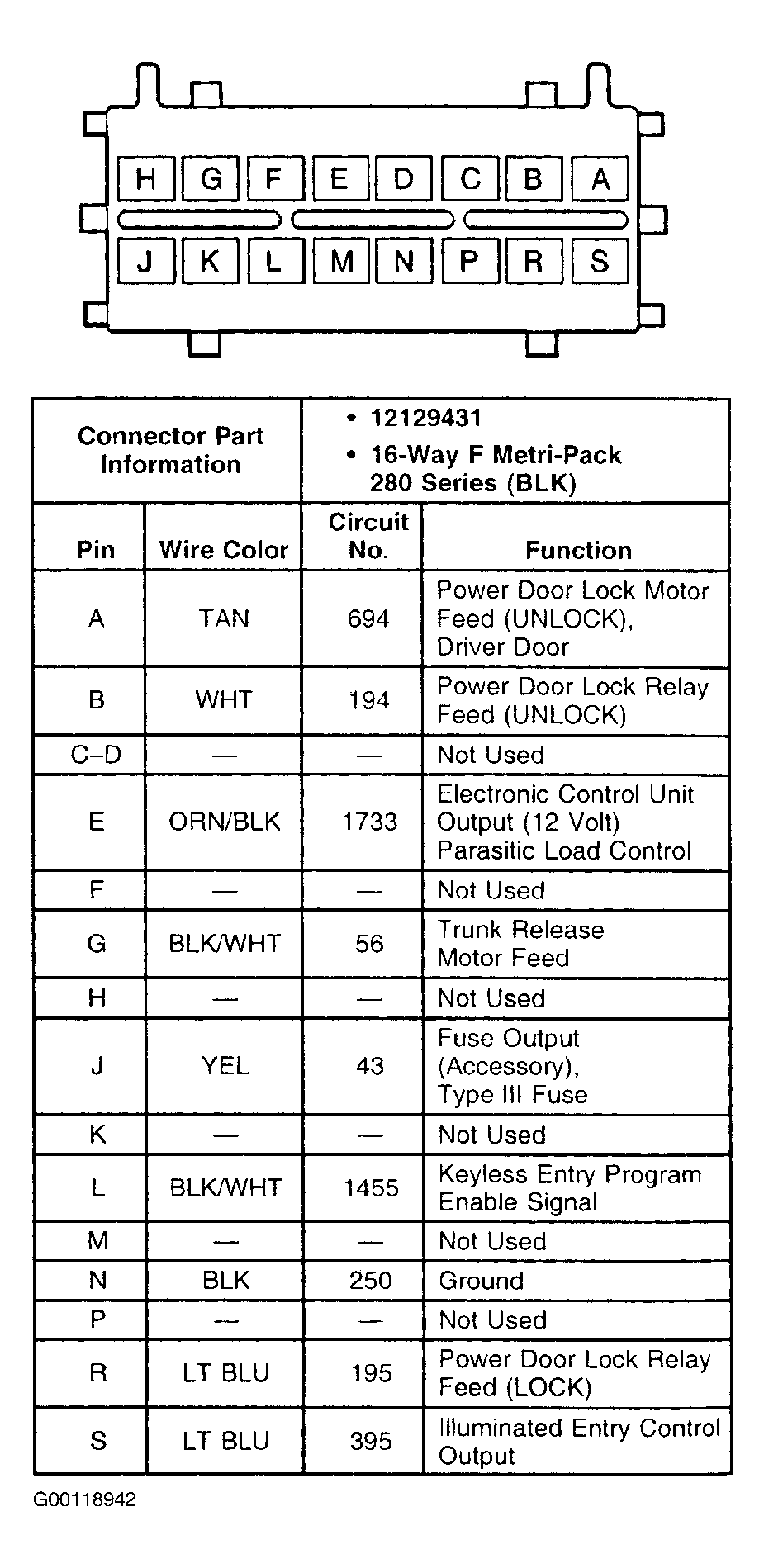

Fig 1: Identifying Program Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Remote Control Door Lock Receiver Connector Terminals

Courtesy of GENERAL MOTORS CORP.
