Body Control Module C3

WARNING: This page is about a different car, the 1997 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

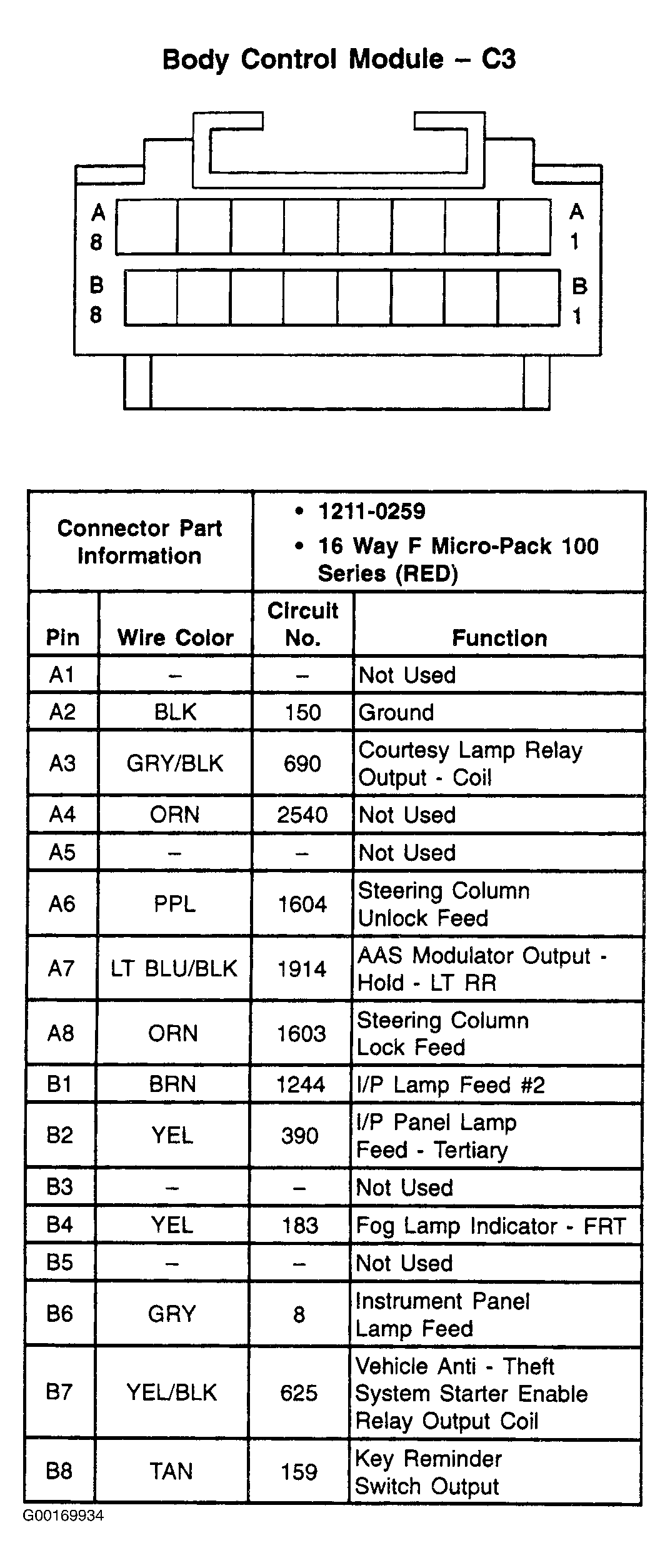

Fig 1: Body Control Module C3 - 16-Pin Connector (Red)
G00169934Courtesy of GENERAL MOTORS CORP.
