Seat Control Module (SCM) C1

WARNING: This page is about a different car, the 1997 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

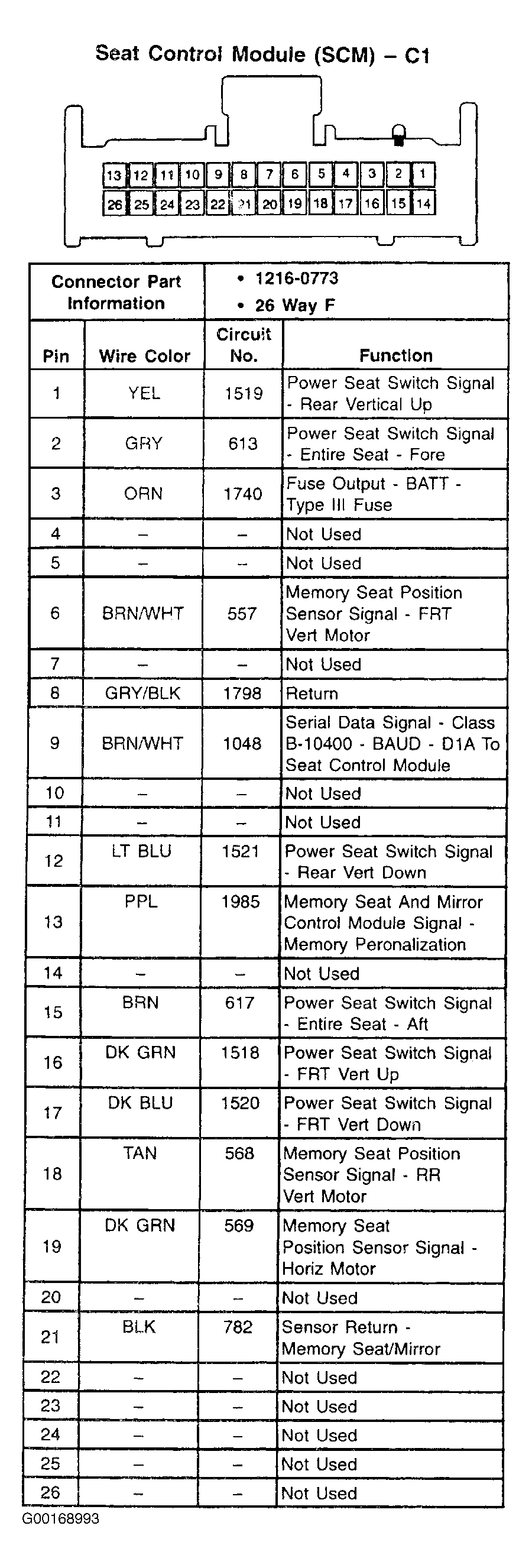

Fig 1: Seat Control Module (SCM) C1 - 26-Pin Connector

Courtesy of GENERAL MOTORS CORP.
