Scan Tool Data Definitions: Notes

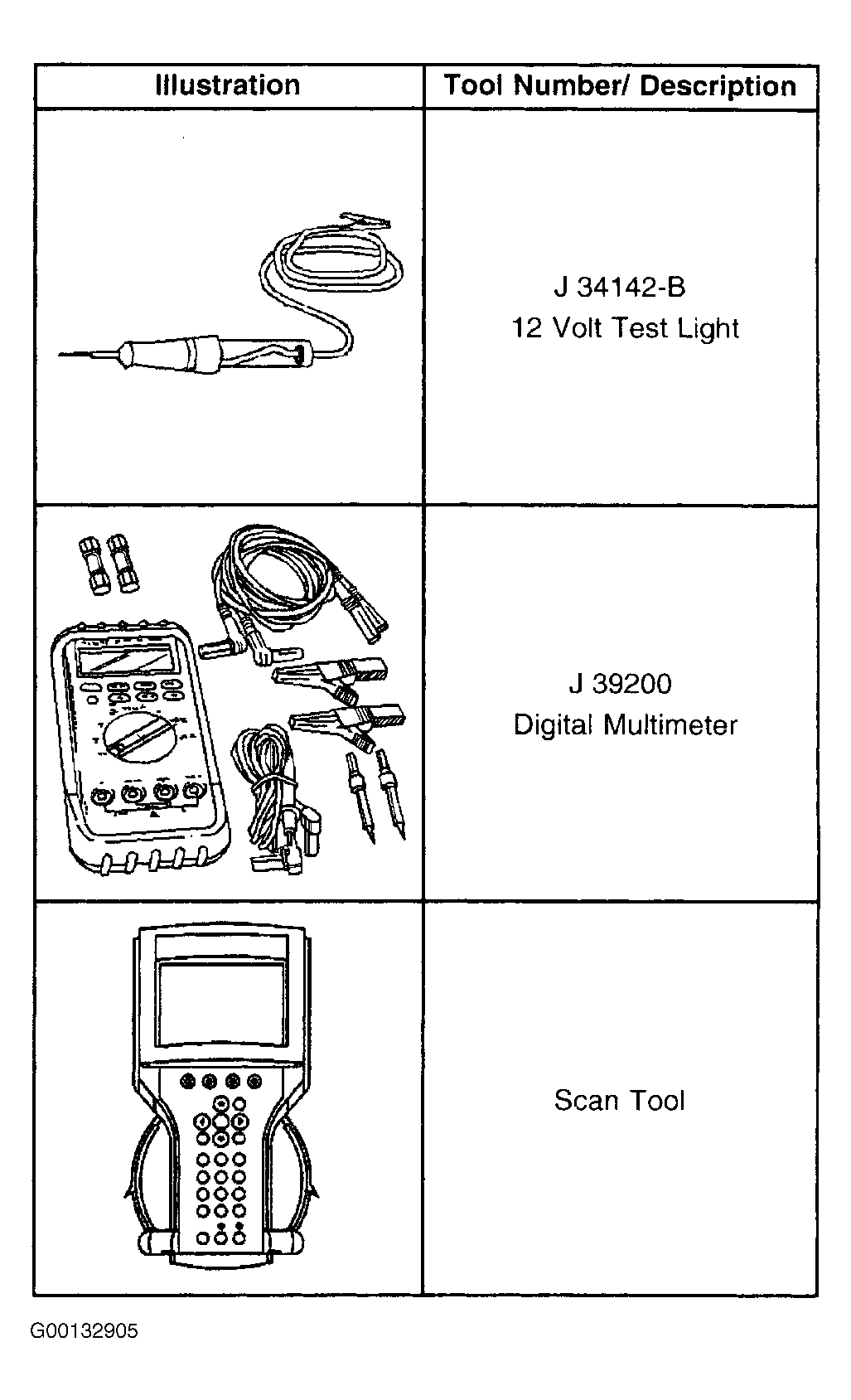

The scan tool readings of the Passlock™ system assist in diagnosing a problem. See Figure.
A typical scan tool data definitions represent general information displayed on the scan tool regarding the following information:
- Passlock™ system functions
- Ignition inputs
- Basic Passlock™ operating conditions
The following data messages and the menu headings are displayed on the scan tool.
NOTE:
The ignition switch must be in the RUN position and the vehicle in PARK.
