Component Locations

Component	Location

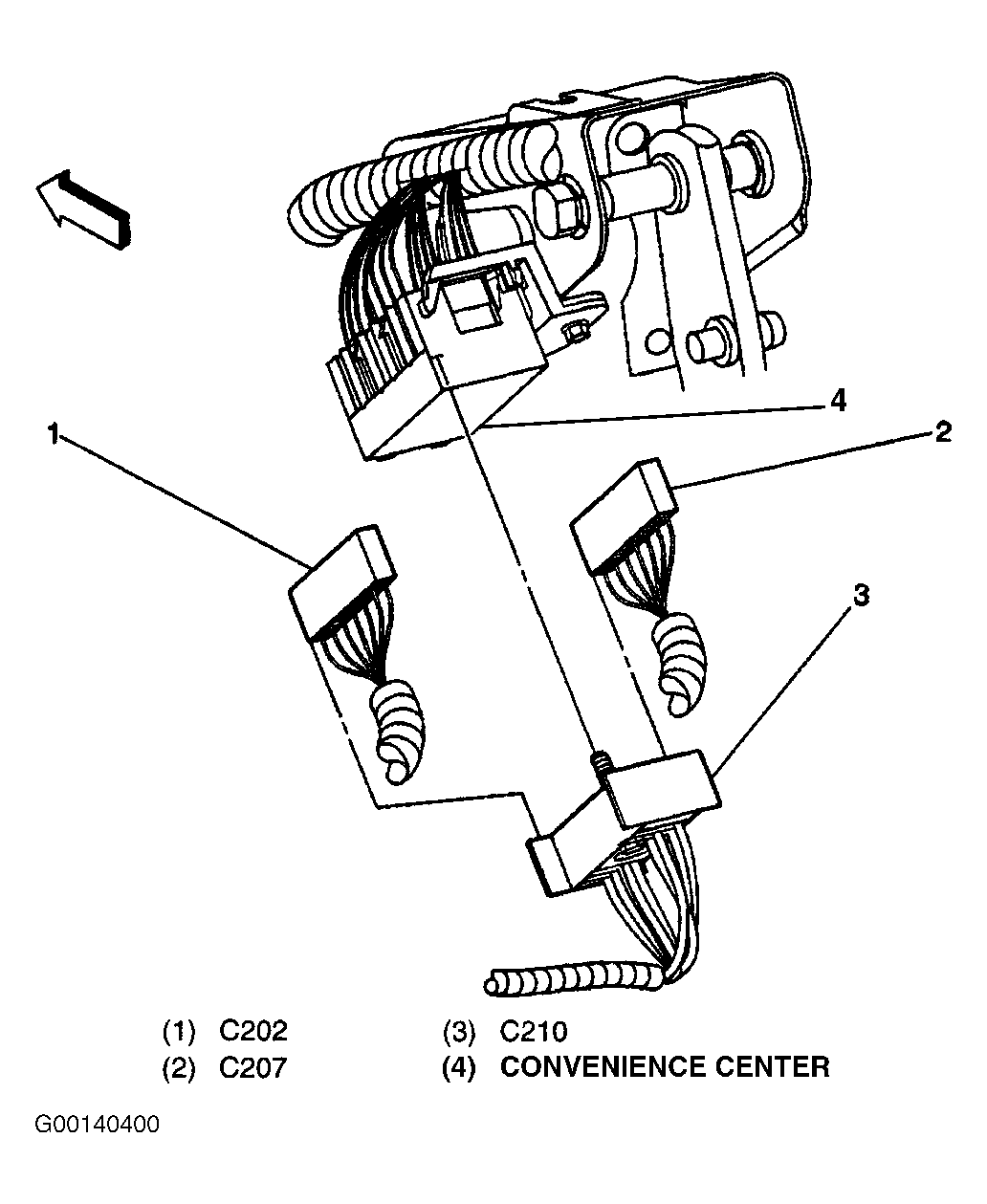

Convenience Center	Under Left Side Of Instrument Panel. See Fig 1

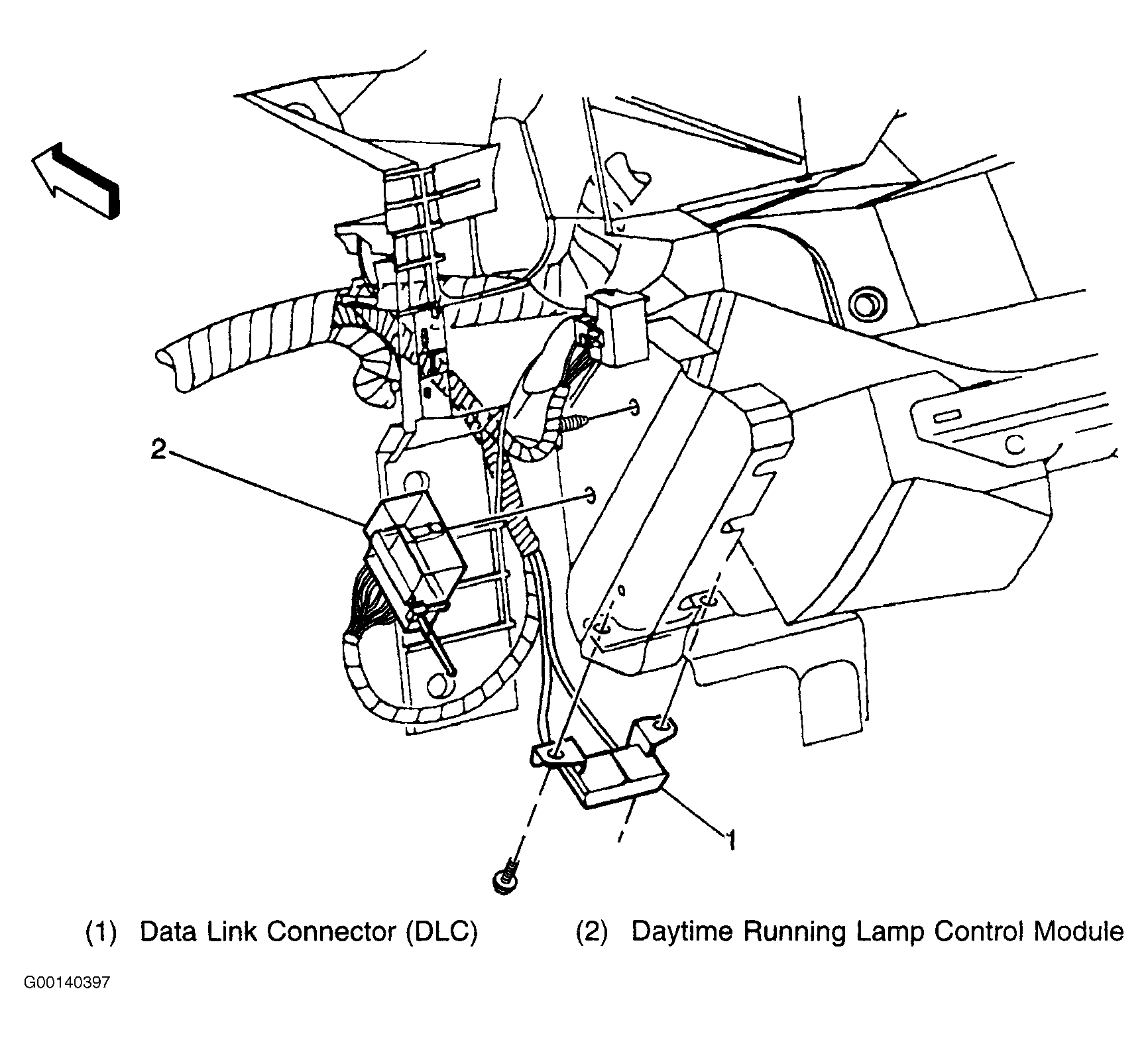

Data Link Connector	Under Left Side Of Instrument Panel. See Fig 2

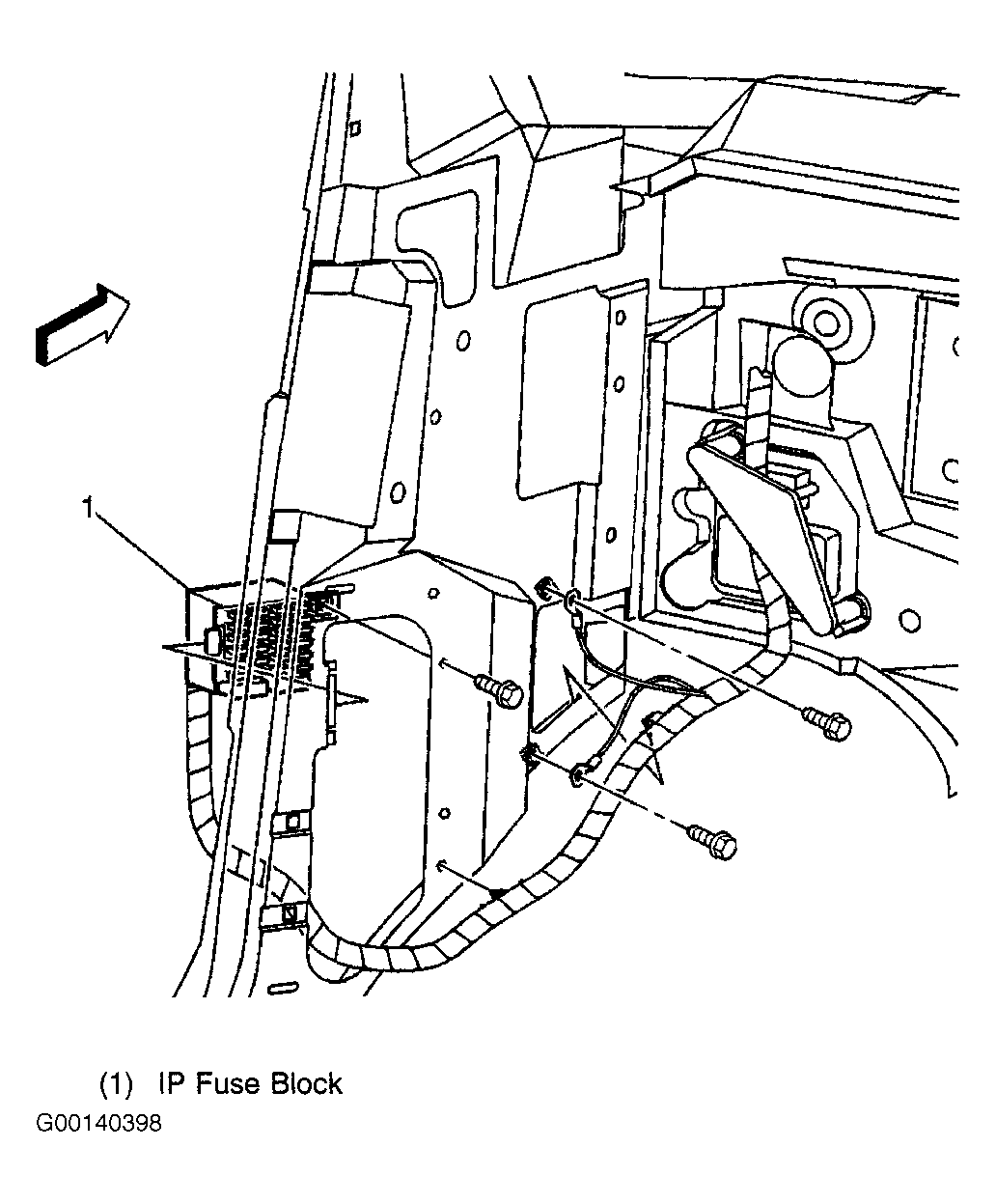

IP Fuse Block	At Lower Left Kick Panel. See Fig 3

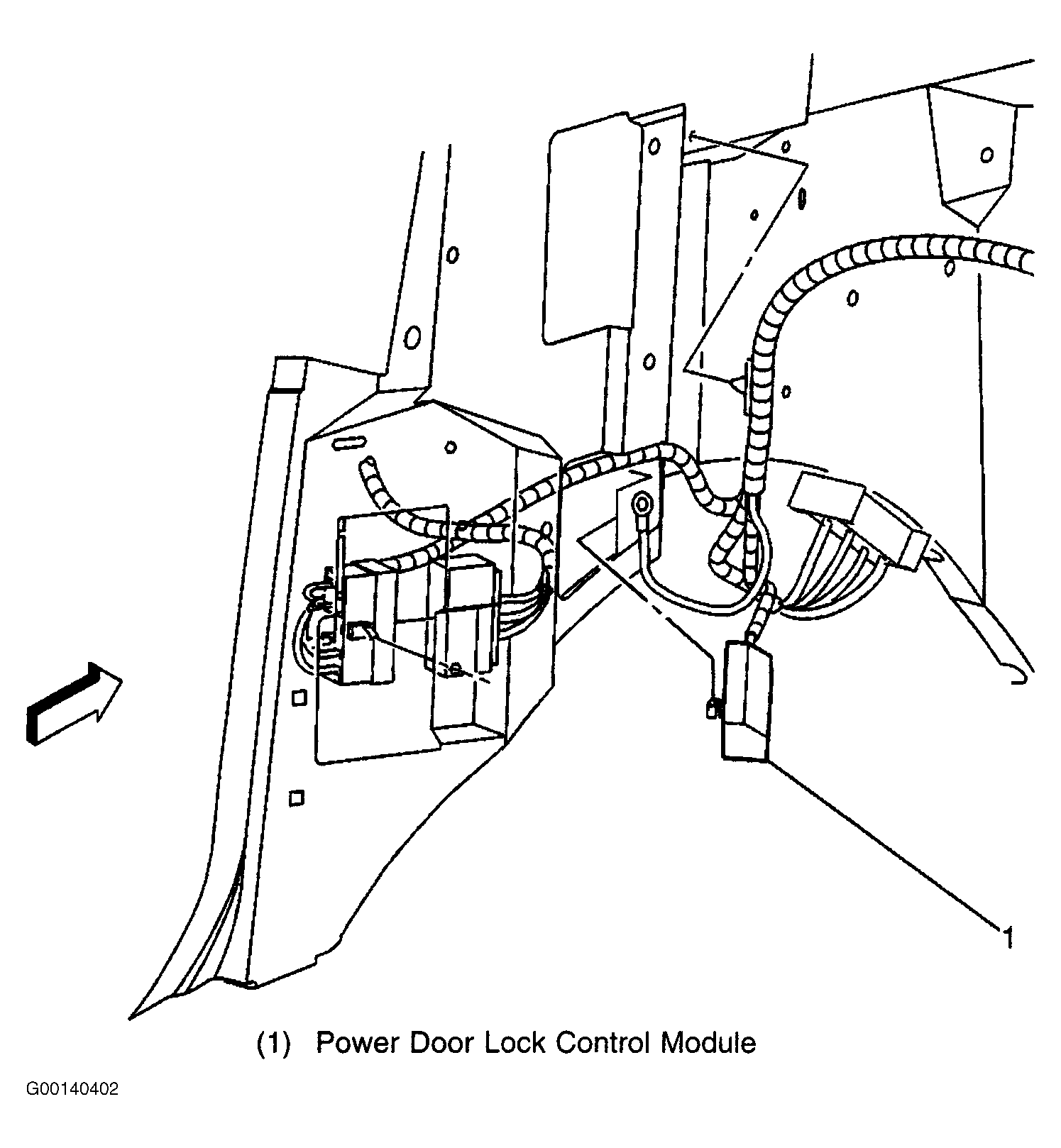

Power Door Lock Control Module	In Left Kick Panel. See Fig 4

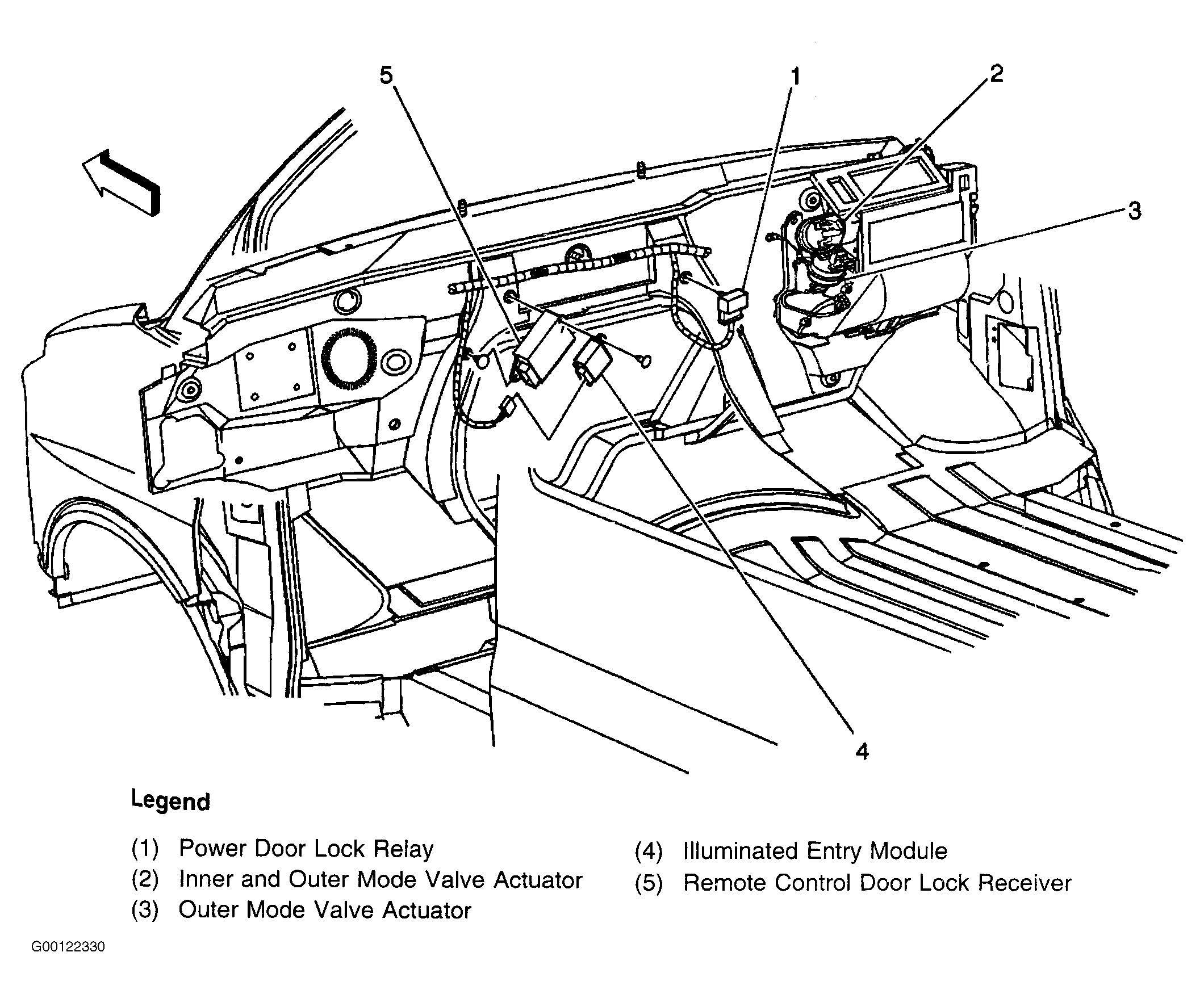

Power Door Lock Relay	Behind Center Of Instrument Panel. See Fig 5
Remote Control Door Lock Receiver	Attached To Cowl, Above Engine Cover. See Fig 5

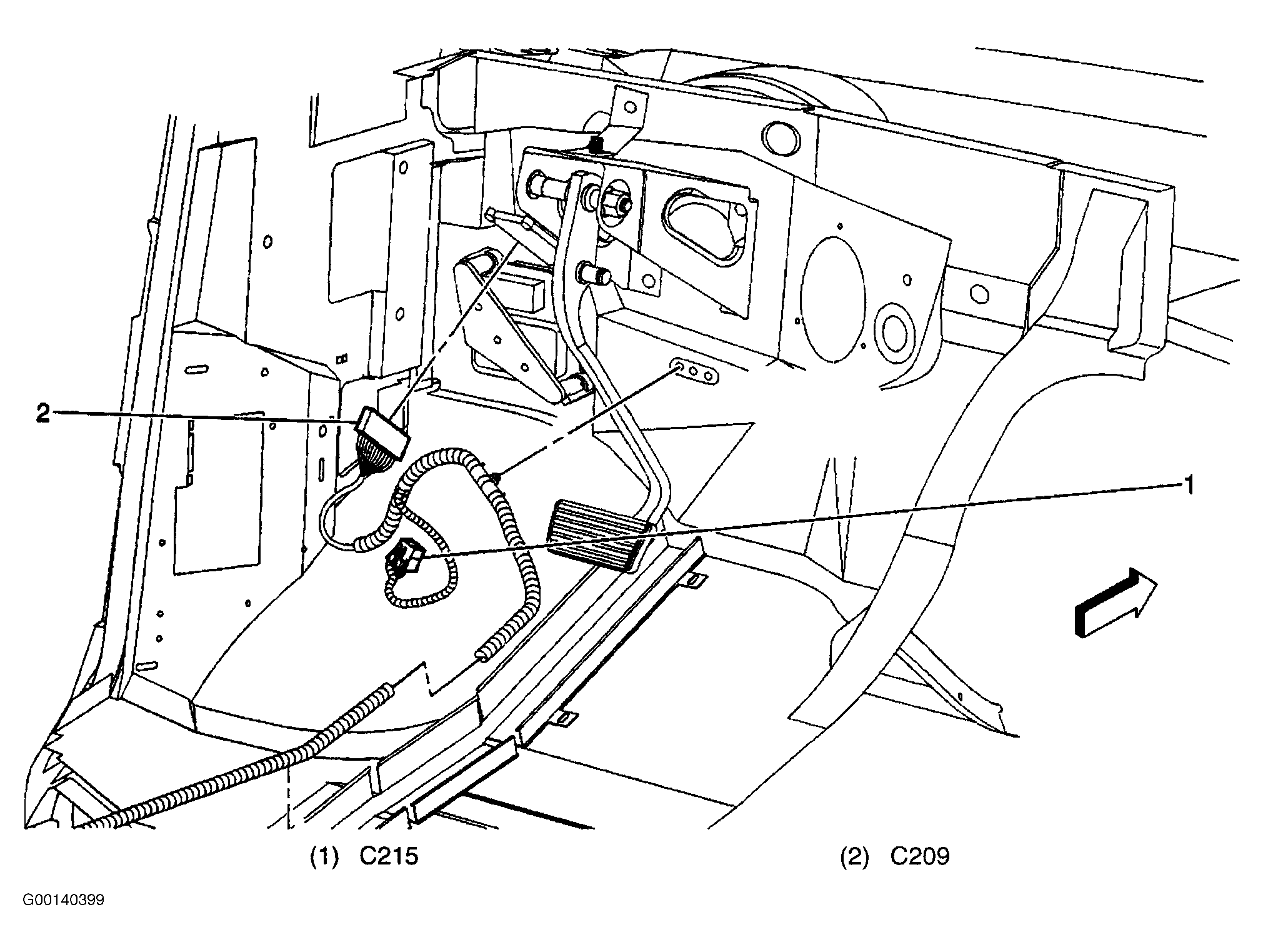

C209	In Left Body Harness, Under Left Side Of Instrument Panel. See Fig 6
C210	In Crossbody Harness, Under Left Side Of Instrument Panel, At Convenience Center. See Fig 1

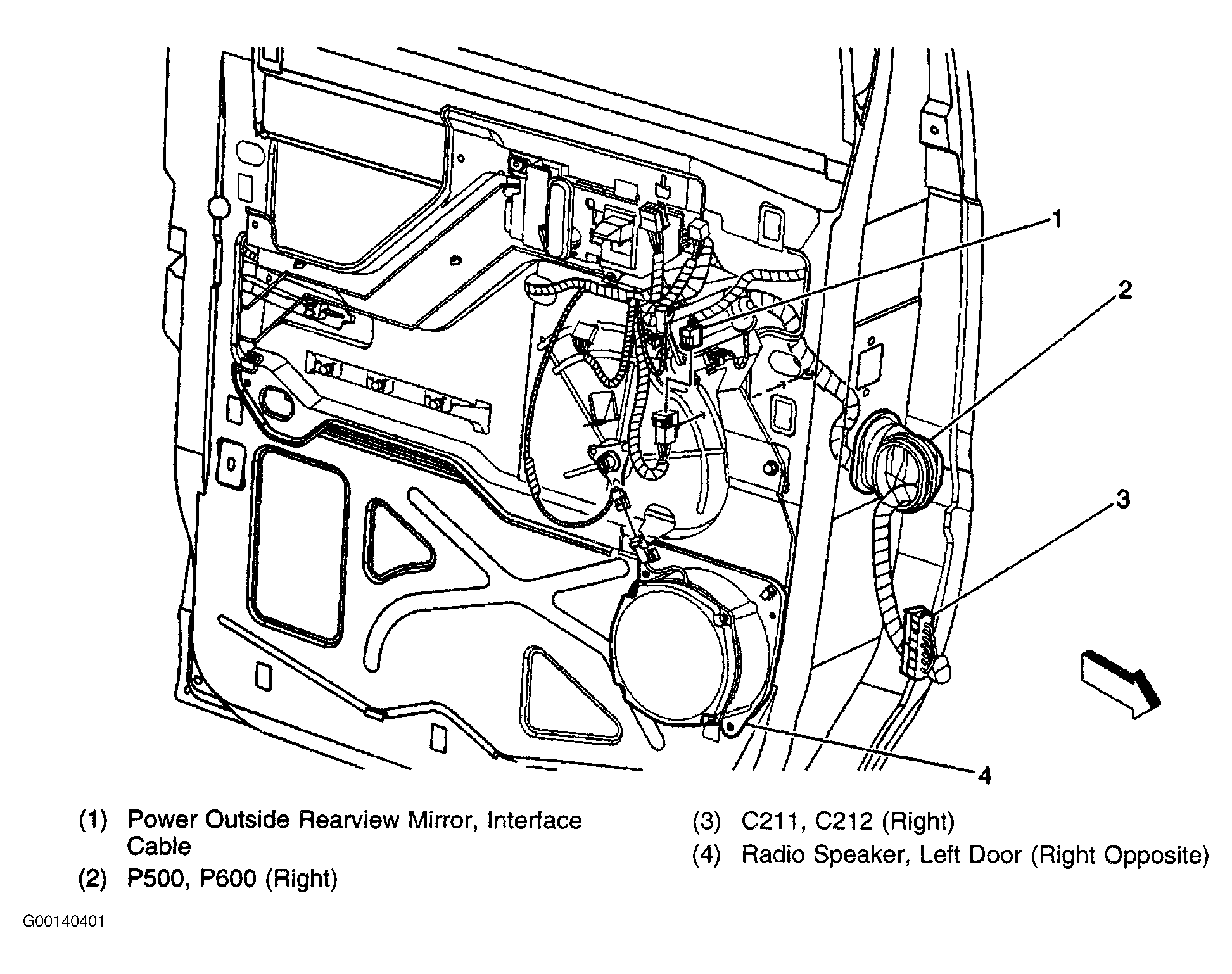

C211	In Crossbody Harness, Under Left Kick Panel. See Fig 7

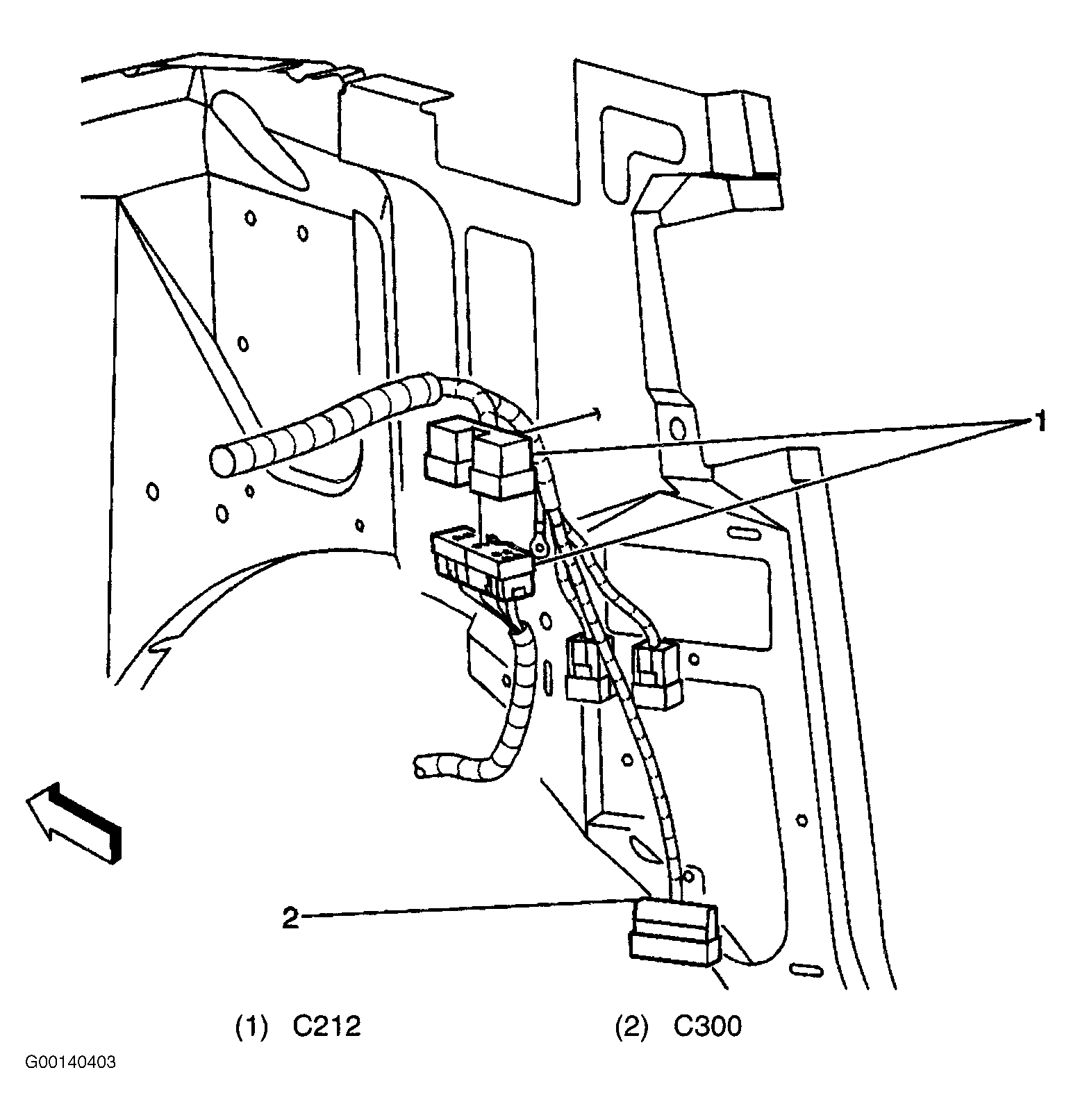

C212	Behind Right Kick Panel. See Fig 8
C300	In Right Body Harness, Behind Right Kick Panel. See Fig 8
G200	Behind Left Kick Panel, Near Power Door Lock Control Module.

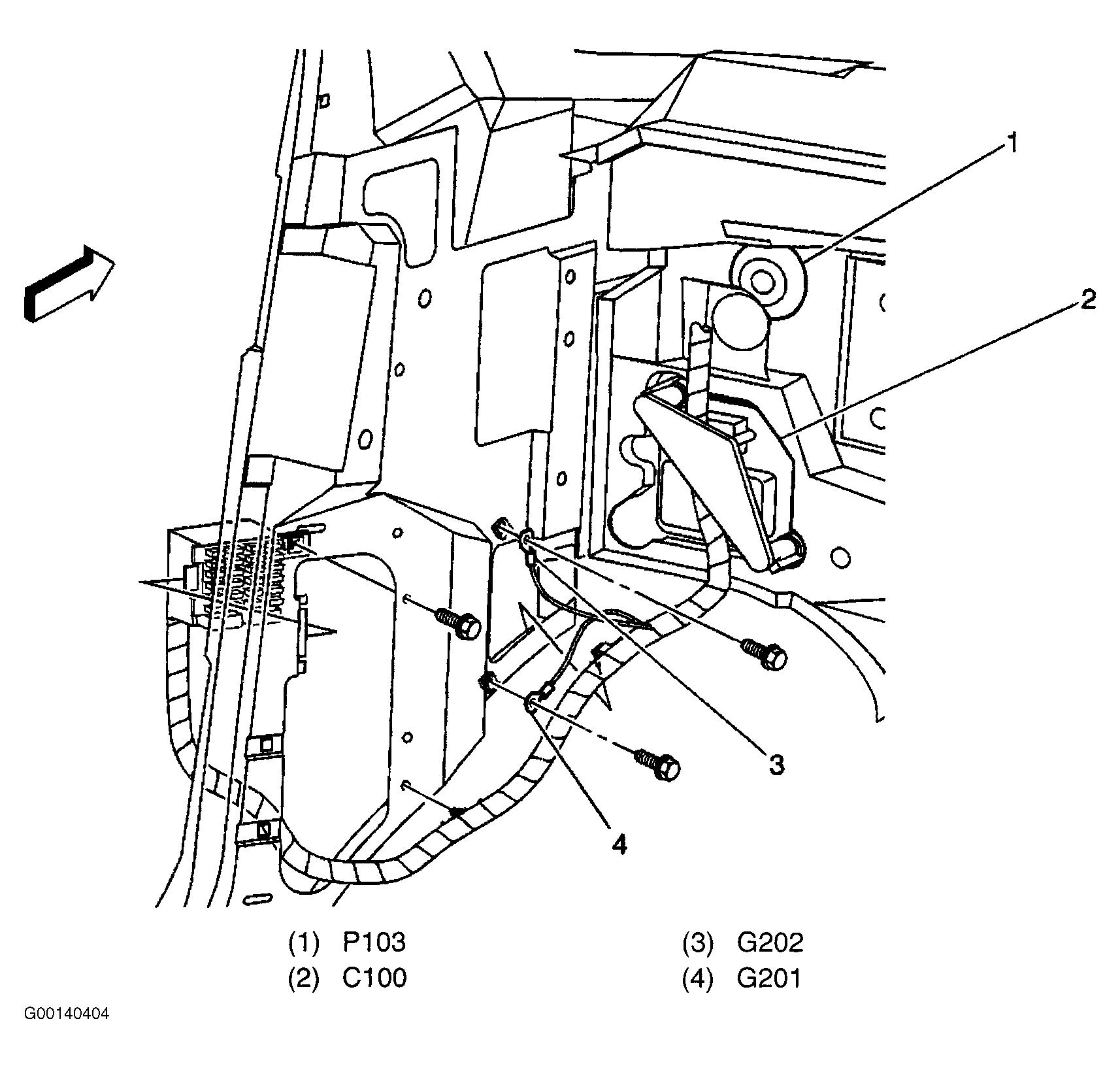

G201	In Instrument Panel Harness, Behind Left Kick Panel, Near Instrument Panel Fuse Block. See Fig 9

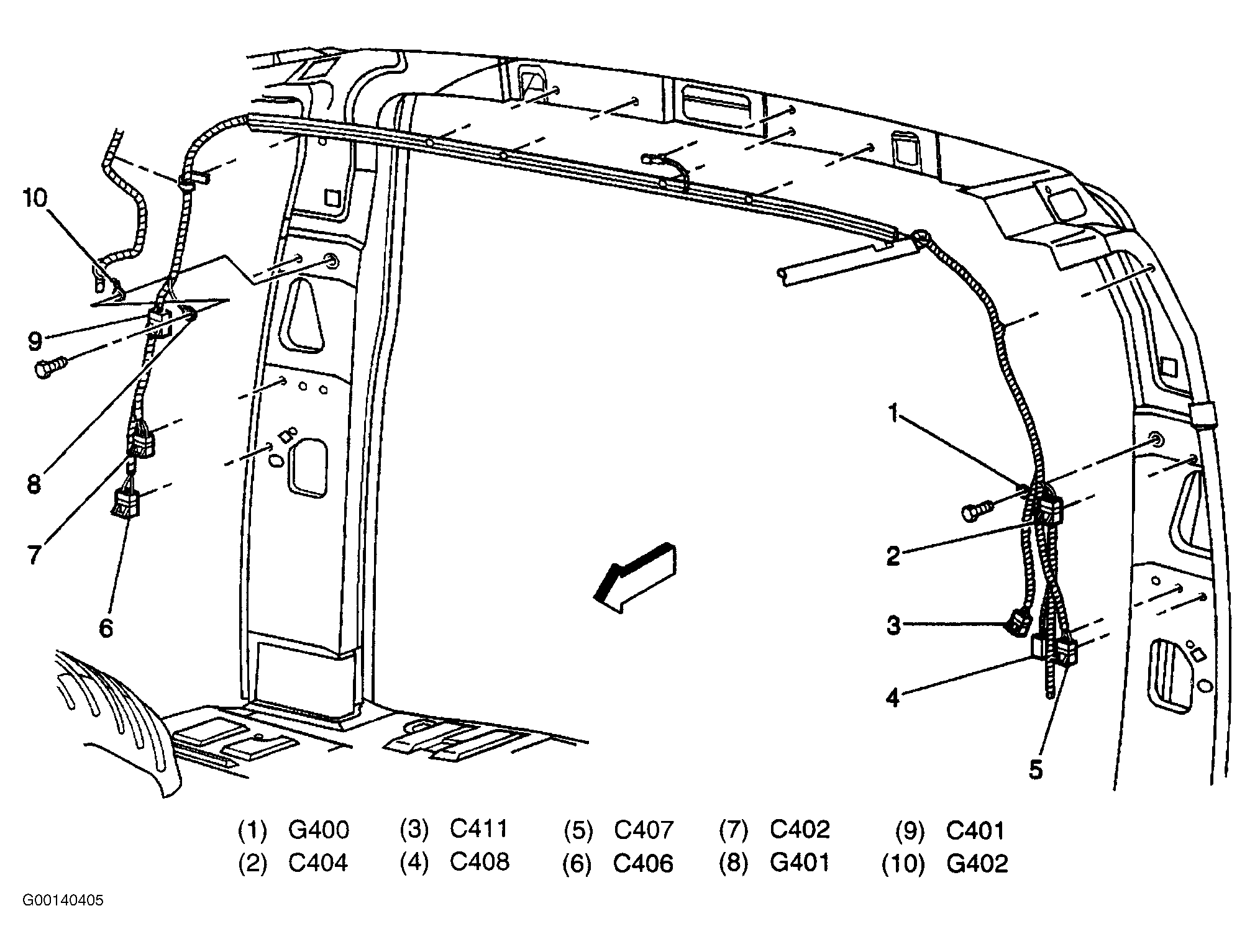

G402	In Right Rear Corner Of Interior Of Cabin, Behind Right Rear Wheel House. See Fig 10

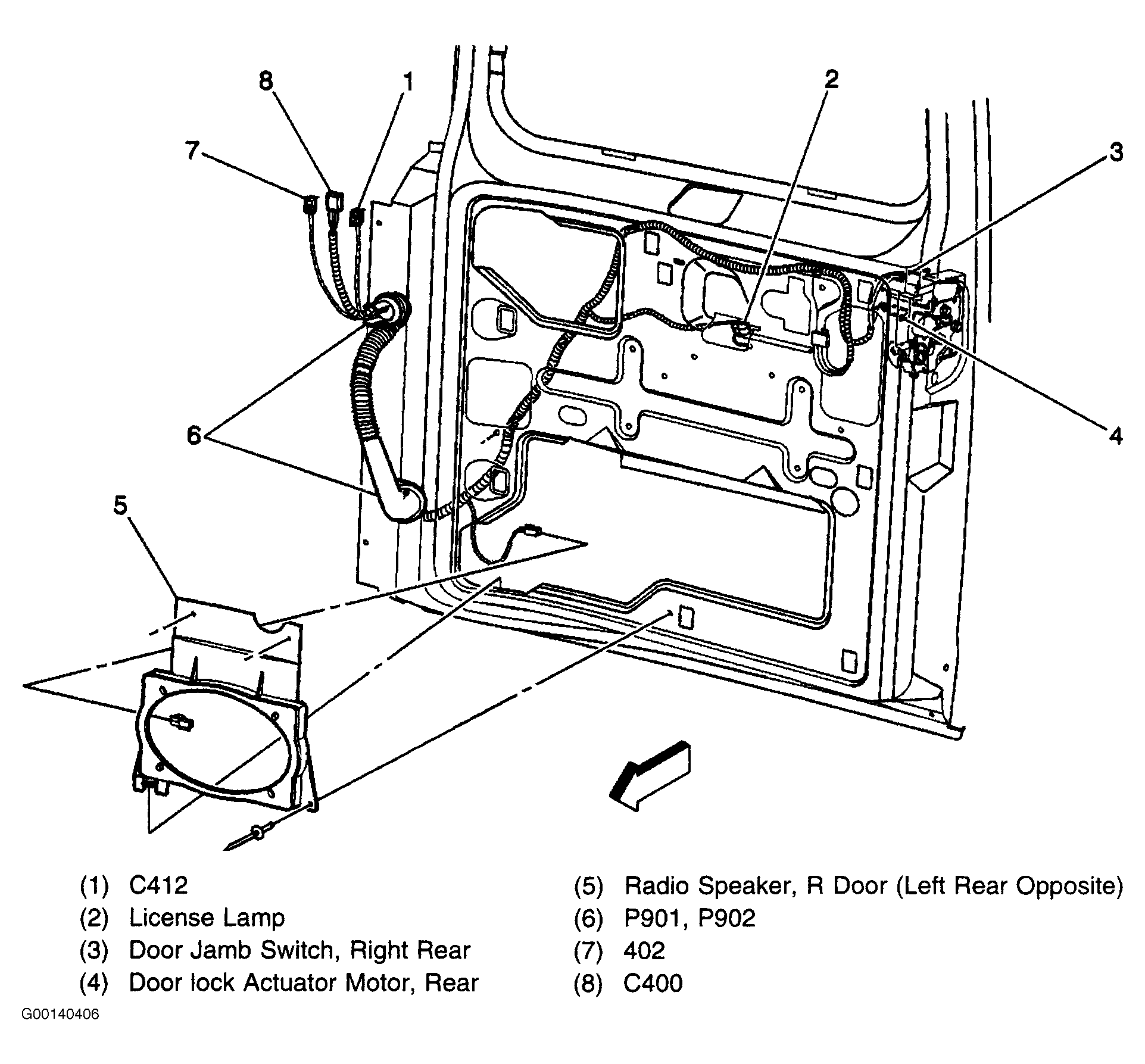

P901	At Right Rear Door. See Fig 11
C206	In Crossbody Harness, Approximately 2" (11 cm)
S228	In Crossbody Harness, Approximately 4" (11 cm) From C210 Breakout, Toward Power Door Lock Relay Breakout.
S241	In Crossbody Harness, Approximately 11" (29 cm) From The C212 Breakout, Toward Power Door Lock Relay Breakout.
